  • Place of Origin:Guangdong, China
  • Brand Name:YDS
  • Model Number:YLC014
  • Output Type:DC
  • Connection:Desktop
  • products:ac to dc adapter 12v
  • Nominal Input Voltage:AC 100V~240V
  • Input Frequency:50/60Hz
  • Efficiency:>85%
  • Output Power:60W
  • Input Voltage Range:AC 95V~265V
  • output:12V 5A
  • Guarantee:30 days
  • Adapter Size:10.8*4.9*2.9CM
  • Adapter Weight:218G

12V 5A desktop power switching adapter 60W AC DC power adapter for led light

Product Description

>> Products features:

♦Power Input: AC100-240V Worldwide Input Voltage, Please verify carefully that the DC Output (12V 5A) and connector Tip size (in the pictures) match your original adapter before purchasing.

♦ For this plastic desktop adapter we can make from 12V 1A 2A3A 4A 5A 6A 7A 8A 9A 10A 12.5A...for

other output, we can also customized.

♦wide application: It can be used for led strip light, LCD Monitor, LCD TV,Set-top box,CCTV camera...

♦With full power, can be used for led/LCD moniter/CCTV camera run constantly each day.

♦Each adapter you can choose your right stanard ac power cord with it.

>>Products specifications:

Specifications

Model No.

YLC014

AC Input

Nominal Input Voltage

AC 100V~240V

Input Voltage Range

AC 95V~265V

Input Frequency

50/60Hz

DC Output

Output Voltage

12V

Output Current

5A

Output Power

60W

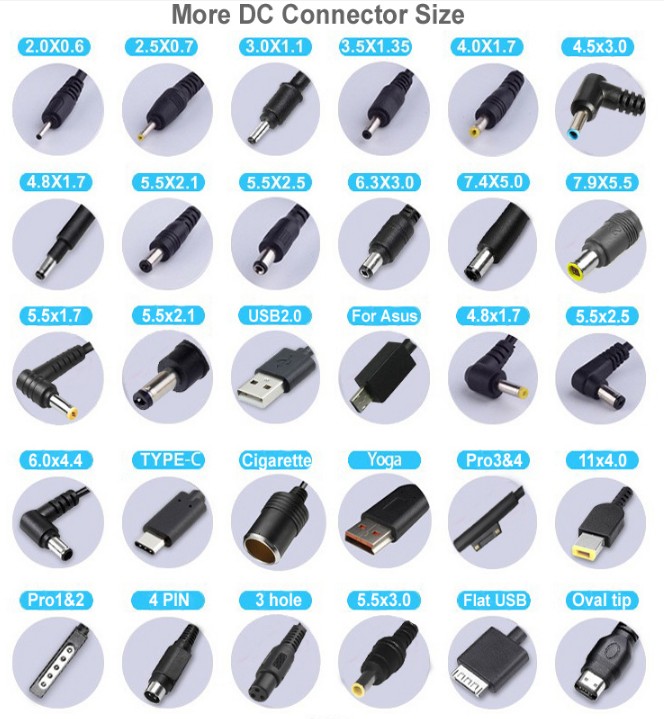

DC Connector Size

5.5*2.1 mm

Line Regulation

2%

Load Regulation

5%

Ripple Noise

100 Mvp-p

Efficiency

>85%

Output Cable Standard

0.5mm2 Pure Copper

Output Cable Length

1.2m normally or customized requirement

Environment

Operating Temperature

0°C ~40°C

Operating Humidity

5%~95%RH

Storage Temperature

-20°C ~85°C

Storage Humidity

5%~95%RH

Protection

Over Load Protection

Short Circuit Protection

Over Current Protection

Over Temperature Protection

Certificates

CE, ROHS, REACH, FCC

Dimensions

Adapter Size

10.8*4.9*2.9CM

Adapter Weight

215G

Inner Box Size

19*13*4.7CM

Inner Box Weight

40G

PCS/CTN

50PCS

Outer Carton Size

48.5*32*40CM

Outer Carton Weight

860G

GW/CTN

13610G

Package

Inner Box

Normally neutral brown box or customized requirement

Outer Carton

Normally neutral standard carton or customized requirement

Warranty

Guarantee

30 days

Warranty

1 year

Terms and Conditions

MOQ

100PCS for mixed order

Payment Terms

T/T, L/C, PayPal, western union

Delivery Time

3-5 days

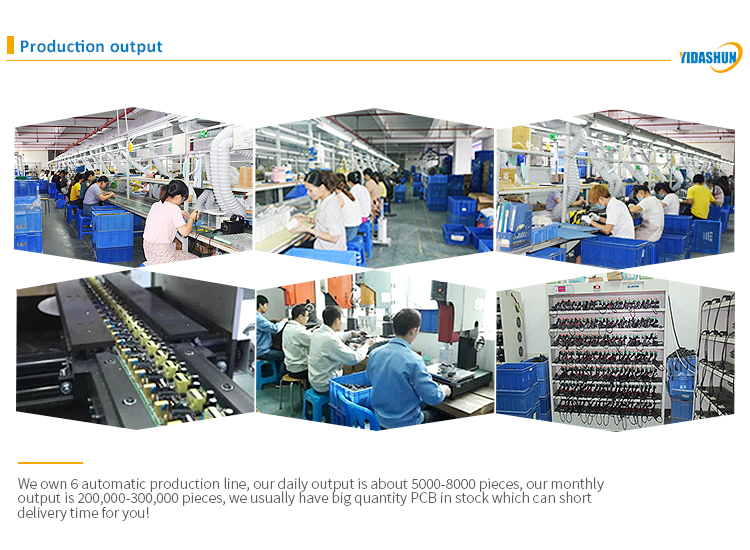

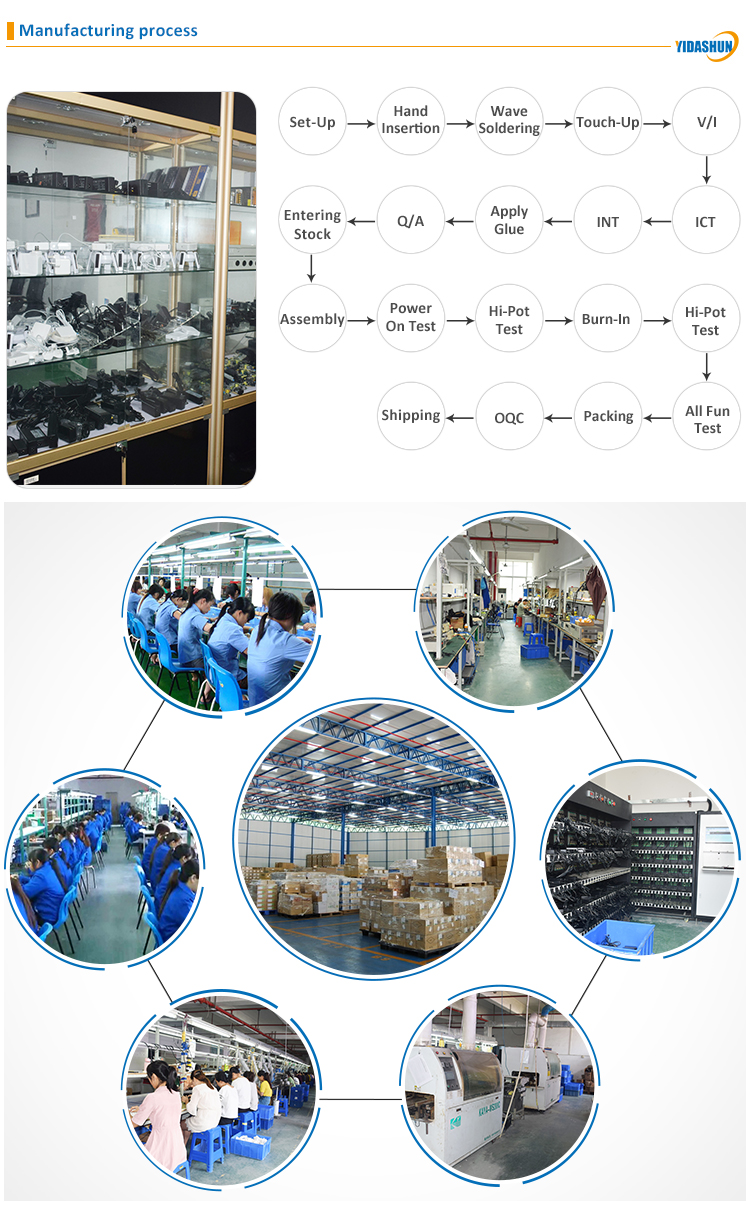

Manufacturing Process

1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping

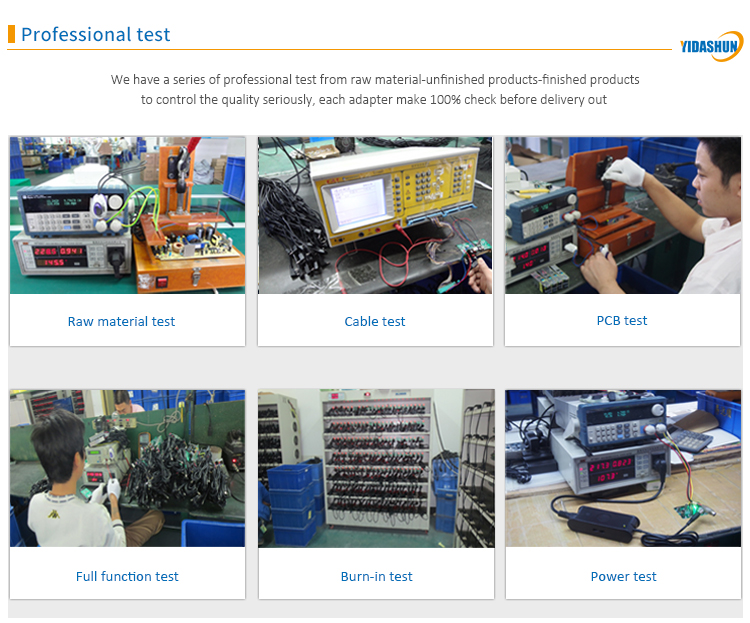

Test Procedures

1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

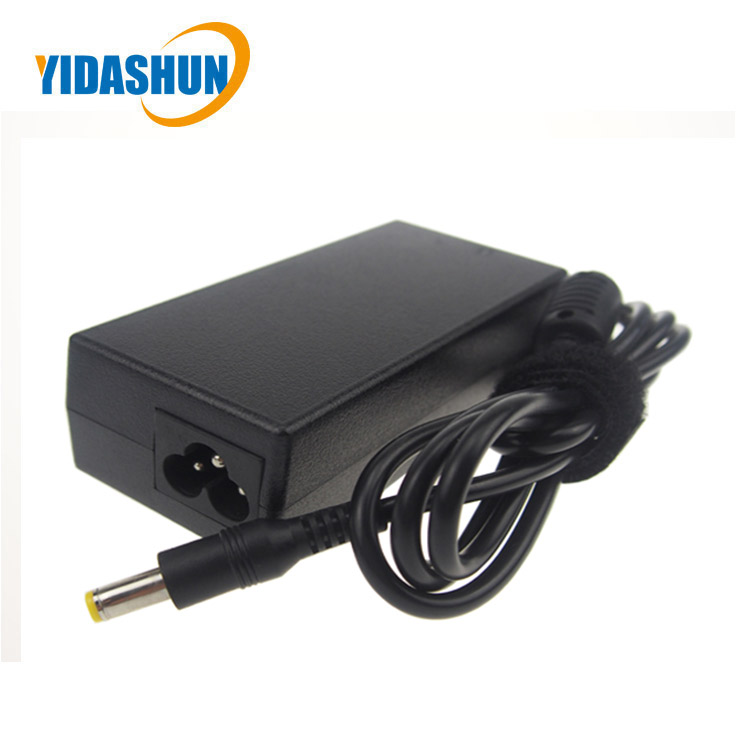

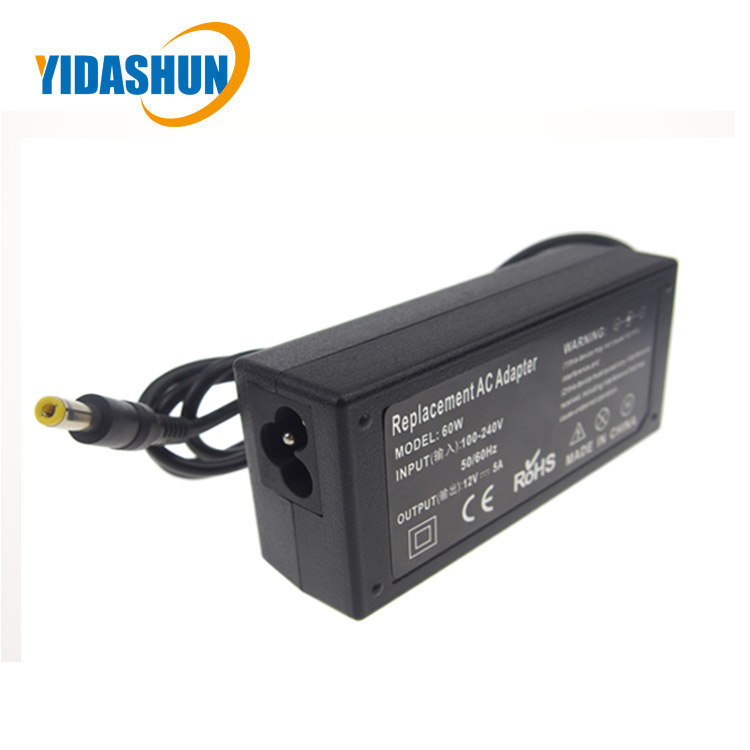

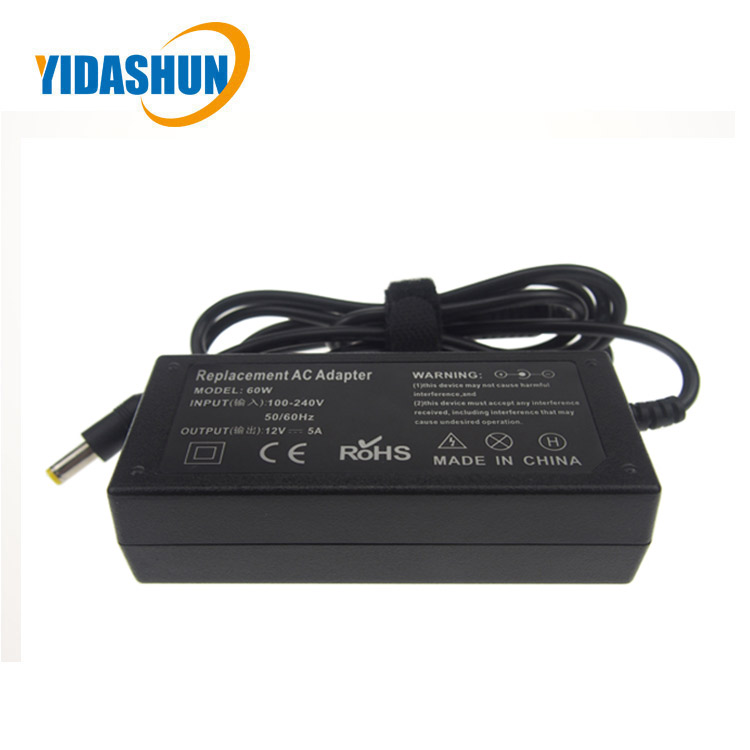

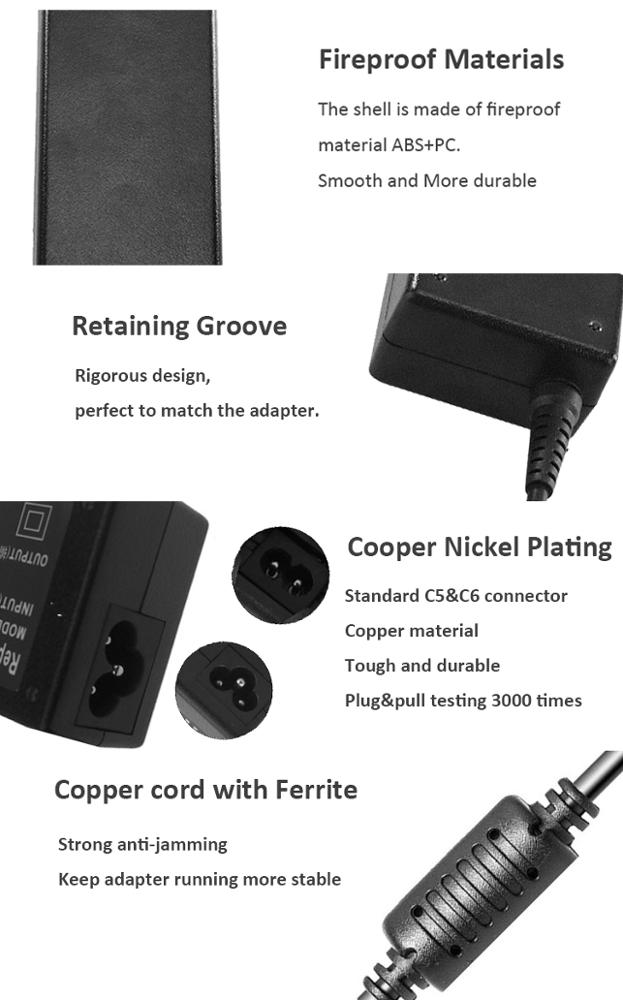

Product photos

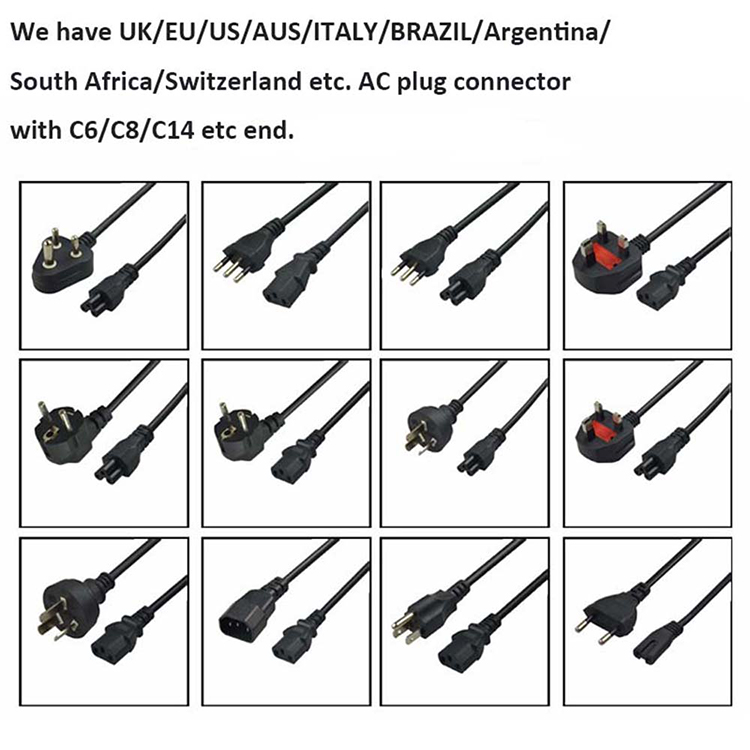

AC/DC Cables option

Packaging & Shipping

Packing details:

1. Regular package: each one with bubble bag,then 50pcs in one carton.

2. Individual package: inner box inside,50pcs/carton.

3. Customized package is accepted.
Delivery time: 1-3 days for samples,3-15 days for batch order.

Shipping: by Sea / by Air / by Express (Customers specifying freight forwarders and negotiable shipping methods. )

INTERNATIONAL AIR MAIL

Payment:

Fast Delivery:

Different qty order will be required for different days .

Company Information

Certifications

Our Services

1. Any inquiries will be replied within 24 hours.

2.Professional manufacturer . Welcome to visit our official websites.

3. Advantages

12 years of experience in production and sales
independent brand
worldwide certificates
high-quality products
guaranteed after-sale services

4. OEM/ODM available

Silk print LOGO;
Customized labels
Customized color box
Any your ideas on the product we can help you design and put it into production

5. Delivery

sample order in stock, delivery within 3 days; and3-7 days for bulk order , 15-20 days for customer OEM products.

6. payment

We accept T/T, PayPal, Western Union, Money Gram,etc.

6 .After -sale Service .

all products will be strictly quality checked before packing, and be well packed before shipping,each one has 1 year warranty, broken parts can be fixed or replaced in next order
