  • Application:LED Light, Electronic Products
  • Material:ABS
  • Output Voltage:12V
  • Output Current:6A
  • Cable length:1.2m
  • Place of Origin:Guangdong, China
  • Frequency:60Hz, 50Hz
  • Plug standard:UK, CN, US, JP, Au, EU, sa
  • Brand Name:OEM
  • Model Number:YLC24
  • Output Type:DC
  • Connection:Desktop
  • products:12V 6A Desktop power adapter
  • Nominal Input Voltage:AC 100V~240V
  • Input Frequency:50/60Hz
  • Efficiency:>85%
  • Output Power:72W
  • Input Voltage Range:AC 95V~265V
  • output:12V 6A
  • Guarantee:30 days
  • Adapter Size:10.8*4.9*2.9CM
  • Adapter Weight:218G

AC to DC 12V 6A Desktop Power Adapter for LED Light/CCTV



Product Description



>> Products features:



♦Power Input: AC100-240V Worldwide Input Voltage, Please verify carefully that the DC Output (12V 6A) and connector Tip size (in the pictures) match your original adapter before purchasing.



♦ For this plastic desktop adapter we can make from 12V 1A 2A3A 4A 5A 6A 7A 8A 9A 10A 12.5A...for



other output, we can also customized.

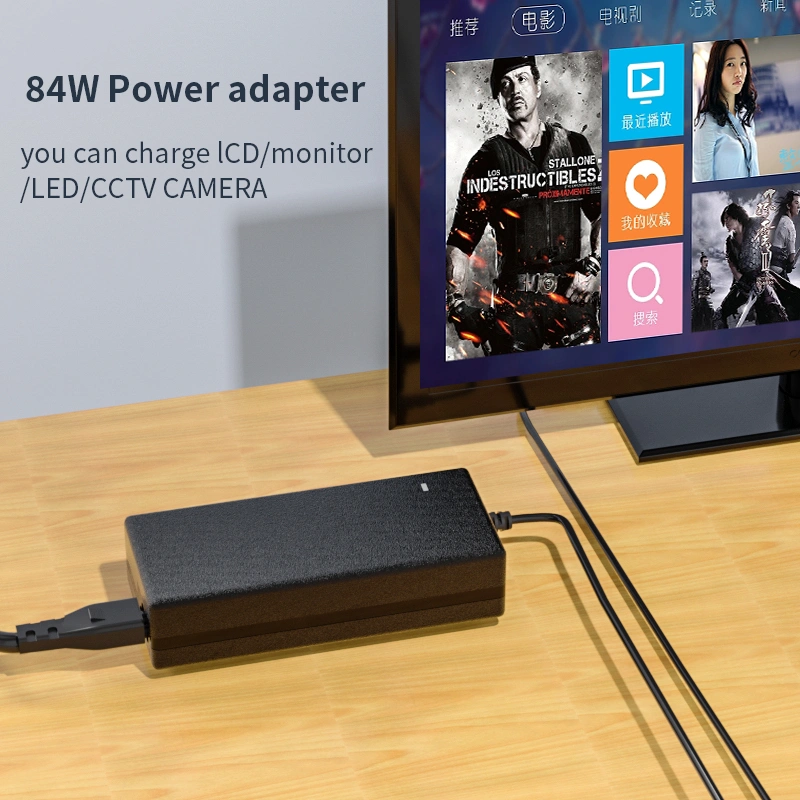

♦wide application: this 12V 6A desktop power adapter can be used for led strip light, LCD Monitor, LCD TV,Set-top box,CCTV camera...



♦With full power, can be used for led/LCD moniter/CCTV camera run constantly each day.



♦Each adapter you can choose your right stanard ac power cord with it.





>>Products specifications:
































































































































































































Specifications



Model No.



YLC24



AC Input



Nominal Input Voltage



AC 100V~240V



Input Voltage Range



AC 95V~265V



Input Frequency



50/60Hz



DC Output



Output Voltage



12V



Output Current



6A



Output Power



84W

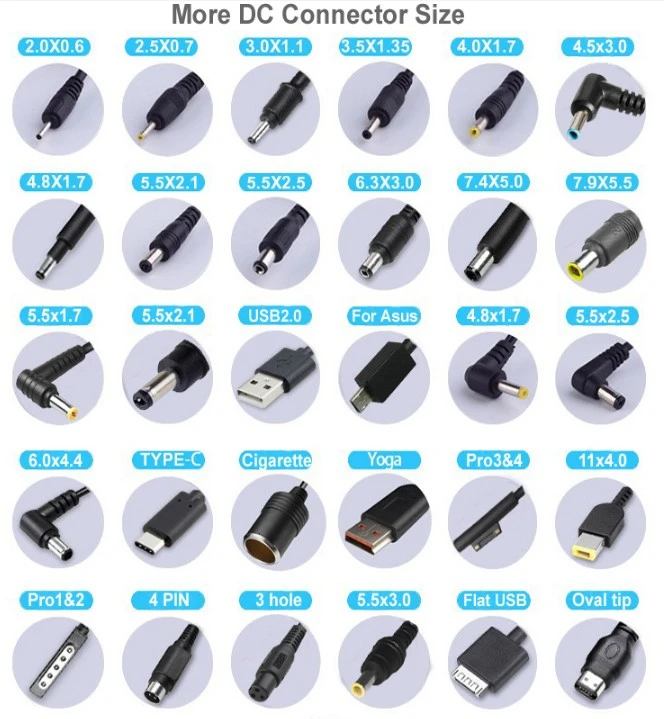

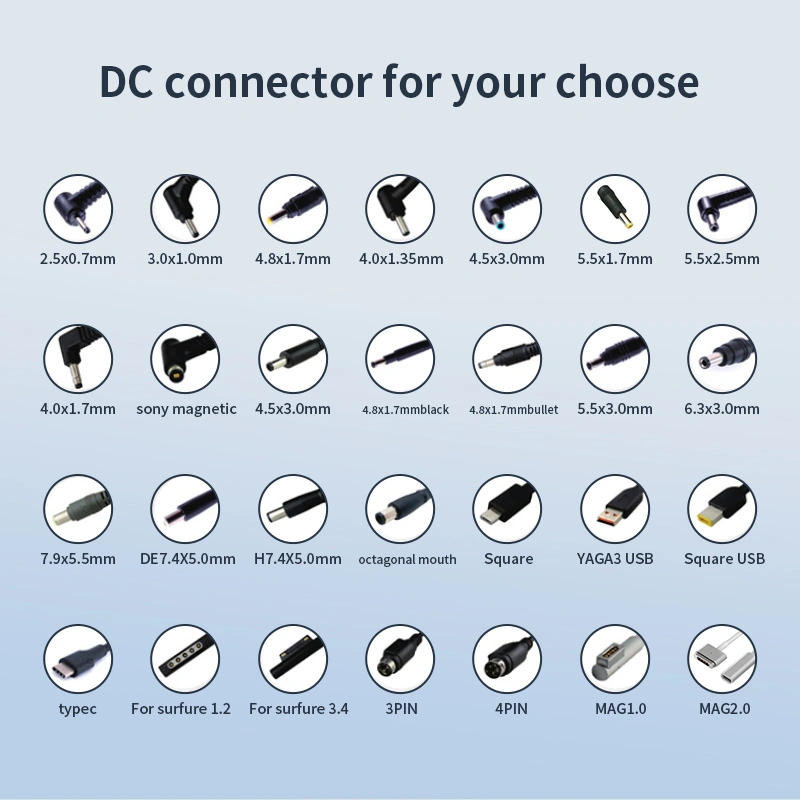

DC Connector Size



5.5*2.1 mm or 5.5*2.5m or 4 pin



Line Regulation



2%



Load Regulation



5%



Ripple Noise



100 Mvp-p



Efficiency



>85%



Output Cable Standard



0.5mm2 Pure Copper



Output Cable Length



1.2m normally or customized requirement



Environment



Operating Temperature



0°C ~40°C



Operating Humidity



5%~95%RH



Storage Temperature



-20°C ~85°C



Storage Humidity



5%~95%RH

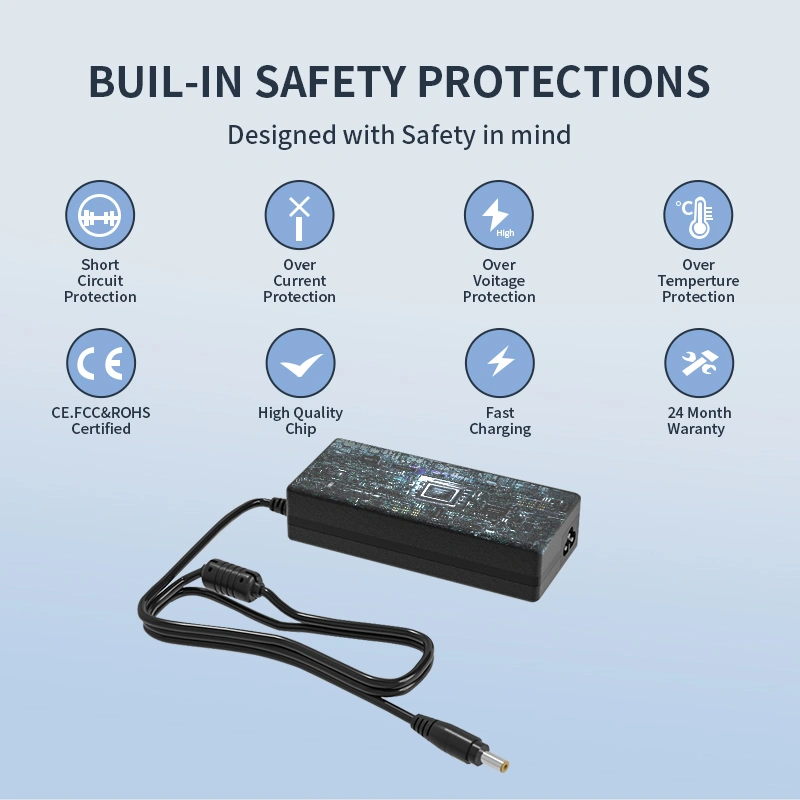

Protection



Over Load Protection



Short Circuit Protection



Over Current Protection



Over Temperature Protection



Certificates



CE, ROHS, REACH, FCC

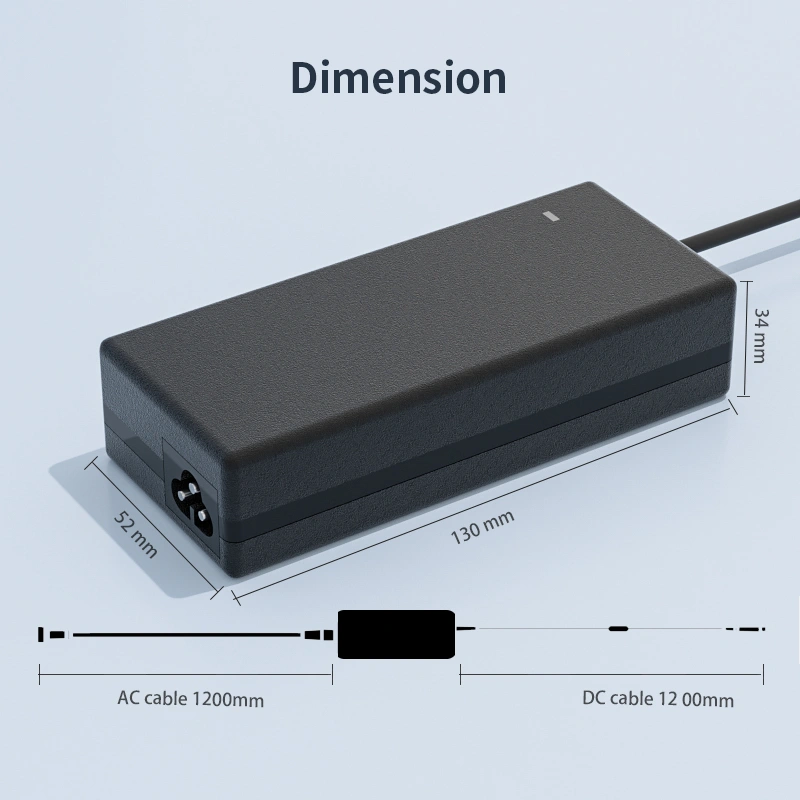

Dimensions



Adapter Size



10.8*4.9*2.9CM



Adapter Weight



215G



Inner Box Size



19*13*4.7CM



Inner Box Weight



40G



PCS/CTN



50PCS



Outer Carton Size



48.5*32*40CM



Outer Carton Weight



860G



GW/CTN



13610G



Package



Inner Box



Normally neutral brown box or customized requirement



Outer Carton



Normally neutral standard carton or customized requirement



Warranty



Guarantee



30 days



Warranty



1 year



Terms and Conditions



MOQ



100PCS for mixed order



Payment Terms



T/T, L/C, PayPal, western union



Delivery Time



3-5 days

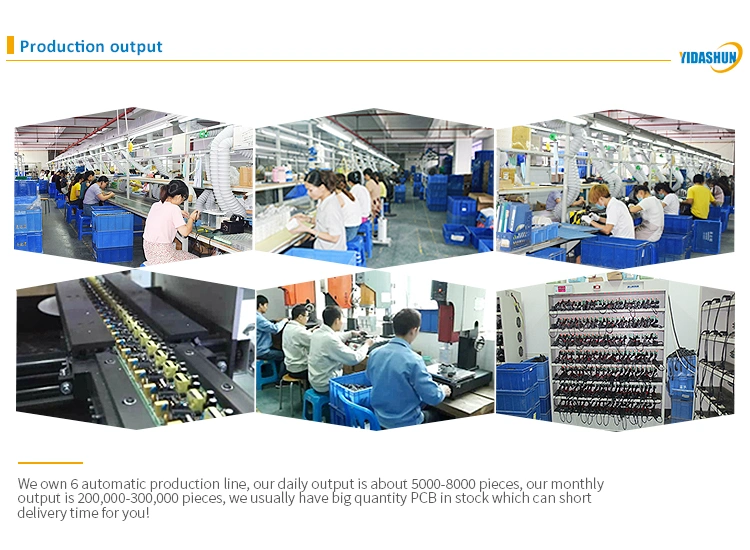

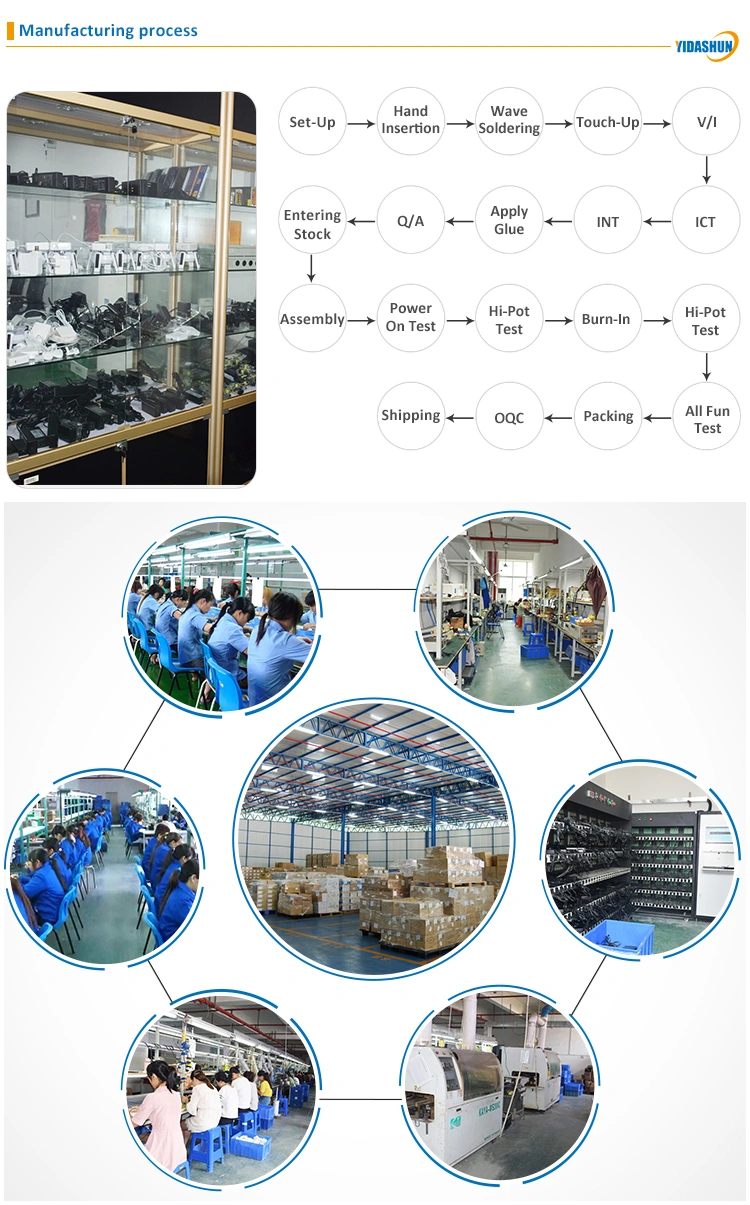

Manufacturing Process



1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping

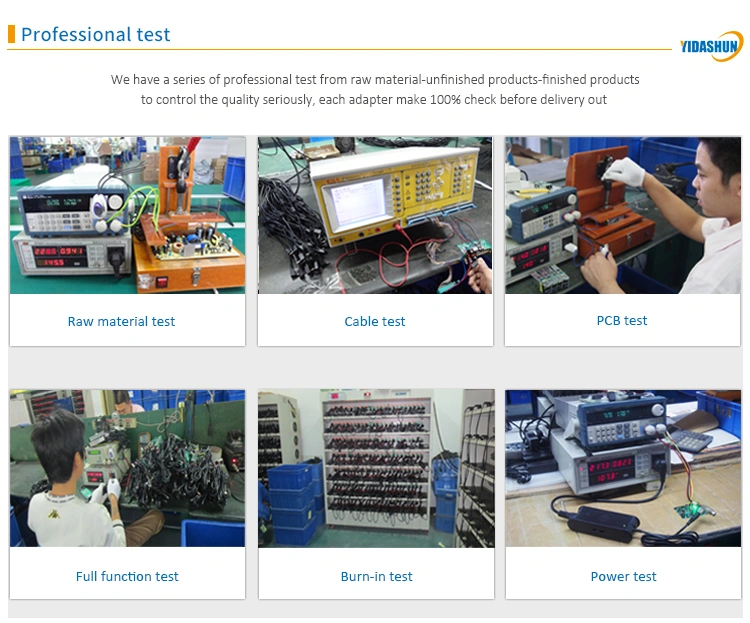

Test Procedures



1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

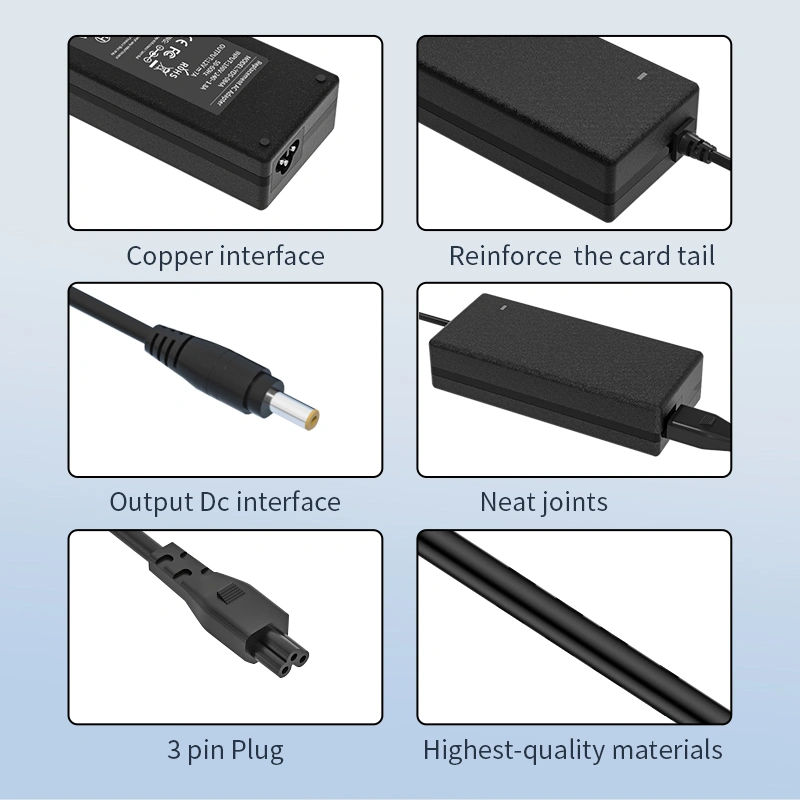

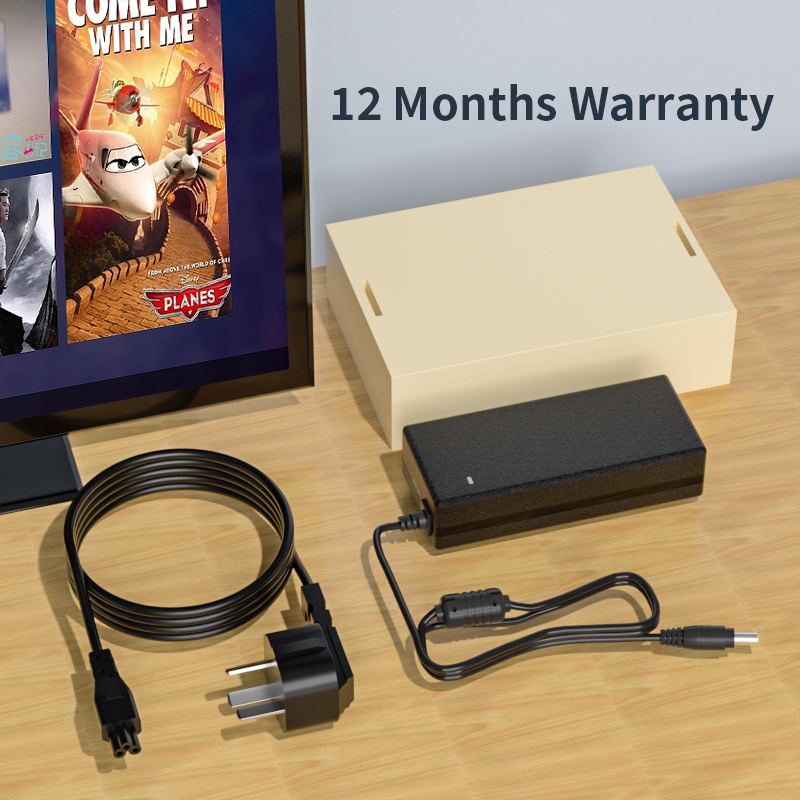

Product photos

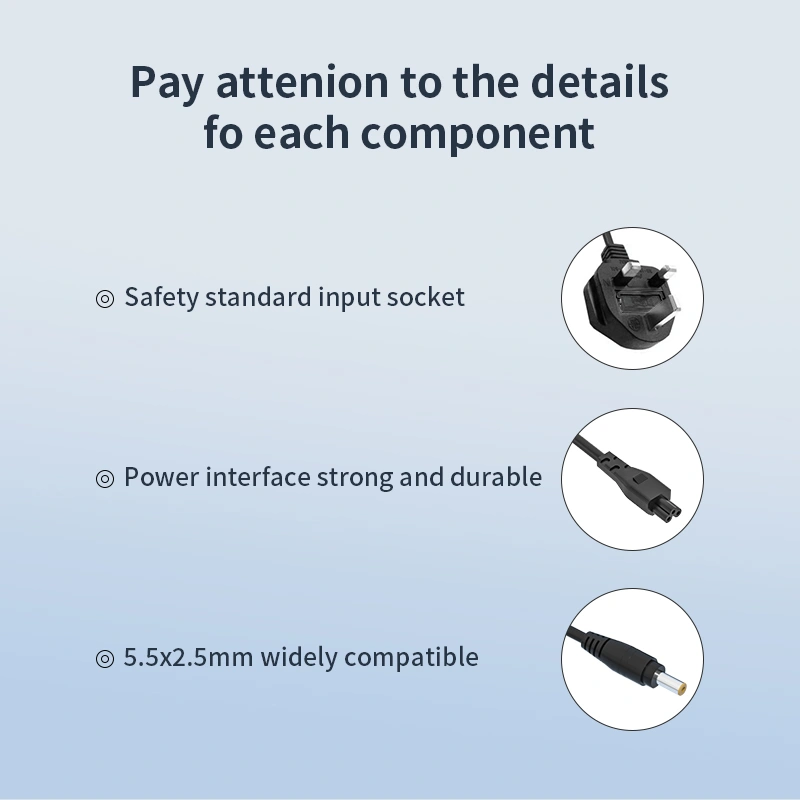

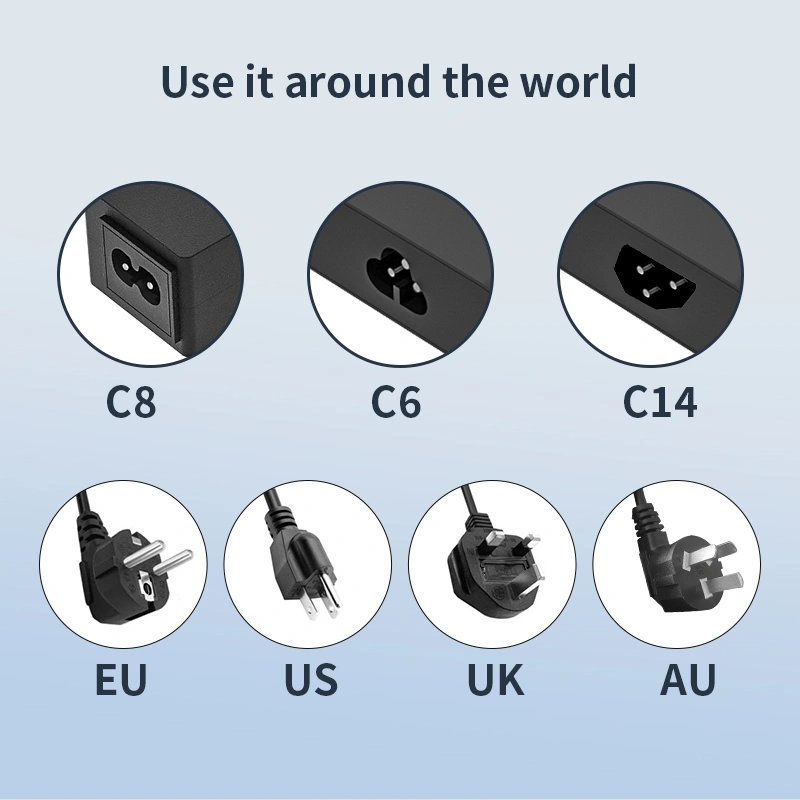

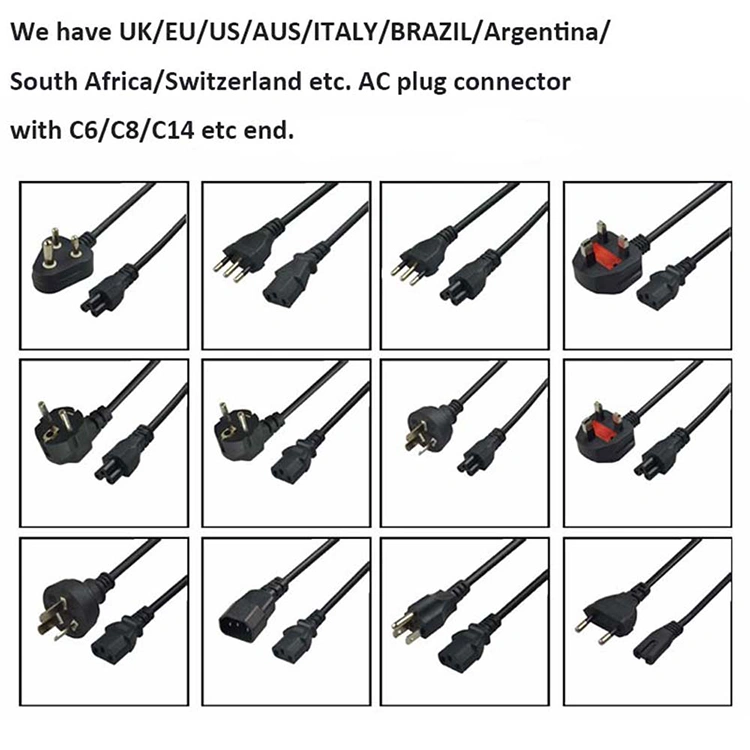

AC/DC Cables option

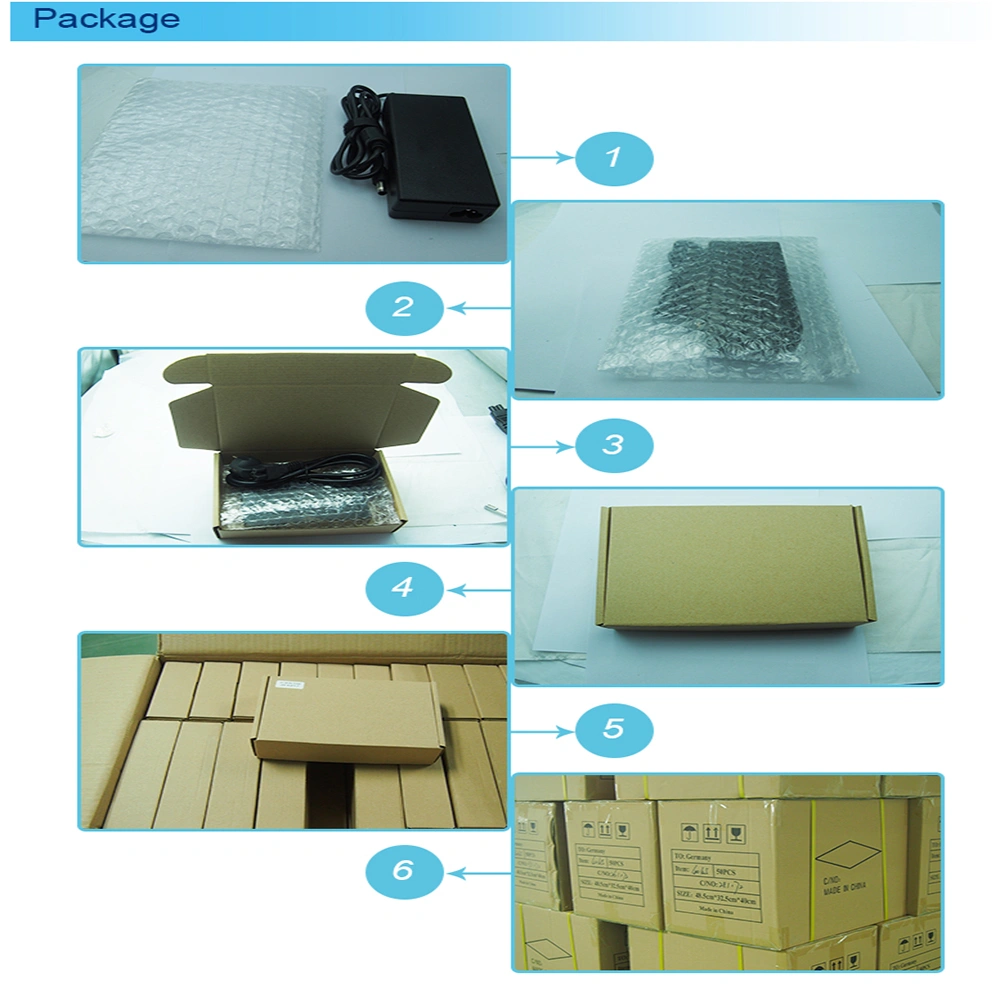

Packaging & Shipping



Packing details:



1. Regular package: each one with bubble bag,then 50pcs in one carton.



2. Individual package: inner box inside,50pcs/carton.



3. Customized package is accepted.
Delivery time: 1-3 days for samples,3-15 days for batch order.








Shipping: by Sea / by Air / by Express (Customers specifying freight forwarders and negotiable shipping methods. )



INTERNATIONAL AIR MAIL



Payment:



Fast Delivery:



Different qty order will be required for different days .







































Company Information










Certifications












Our Services







1. Any inquiries will be replied within 24 hours.



2.Professional manufacturer . Welcome to visit our official websites.



3. Advantages



12 years of experience in production and sales
independent brand
worldwide certificates
high-quality products
guaranteed after-sale services





4. OEM/ODM available



Silk print LOGO;
Customized labels
Customized color box
Any your ideas on the product we can help you design and put it into production





5. Delivery



sample order in stock, delivery within 3 days; and3-7 days for bulk order , 15-20 days for customer OEM products.







6. payment



We accept T/T, PayPal, Western Union, Money Gram,etc.





6 .After -sale Service .



all products will be strictly quality checked before packing, and be well packed before shipping,each one has 1 year warranty, broken parts can be fixed or replaced in next order
