  • Application:LED Light, Electronic Products
  • Material:ABS
  • Output Voltage:12V
  • Output Current:8A
  • Cable length:1.2m
  • Place of Origin:Guangdong, China
  • Frequency:60Hz, 50Hz
  • Plug standard:UK, CN, IT, JP, US, Au, EU, sa
  • Brand Name:OEM
  • Model Number:YLC29
  • Output Type:DC
  • Connection:Plug In
  • products:12v 8A AC DC power adapter
  • Nominal Input Voltage:AC 100V~240V
  • Input Frequency:50/60Hz
  • Efficiency:>85%
  • Output Power:96W
  • Input Voltage Range:AC 95V~265V
  • output:12V 8A
  • Guarantee:30 days
  • Adapter Size:16.6*6.5*3.9CM
  • Adapter Weight:590G

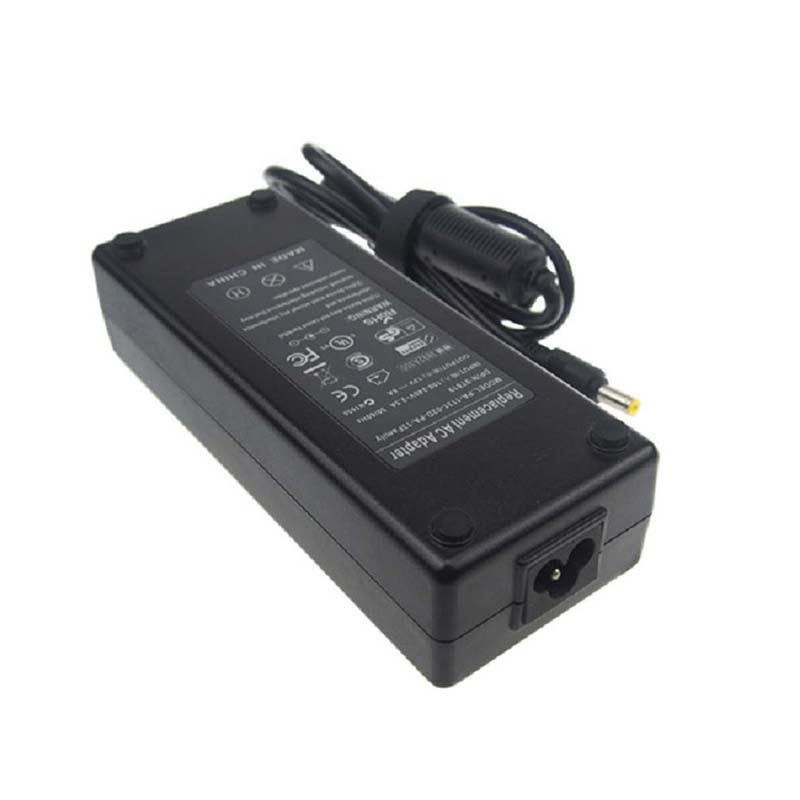

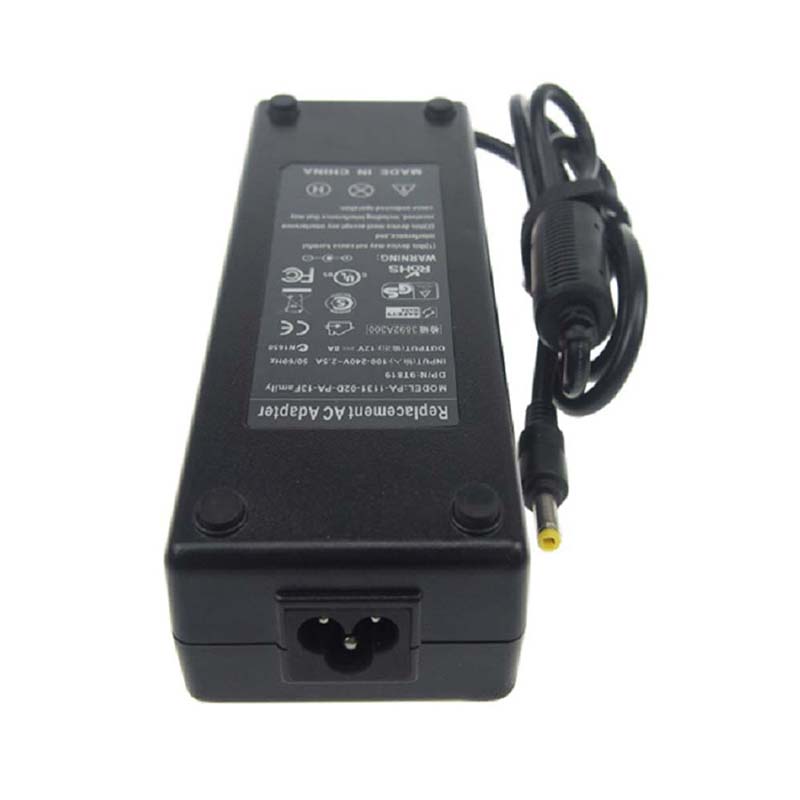

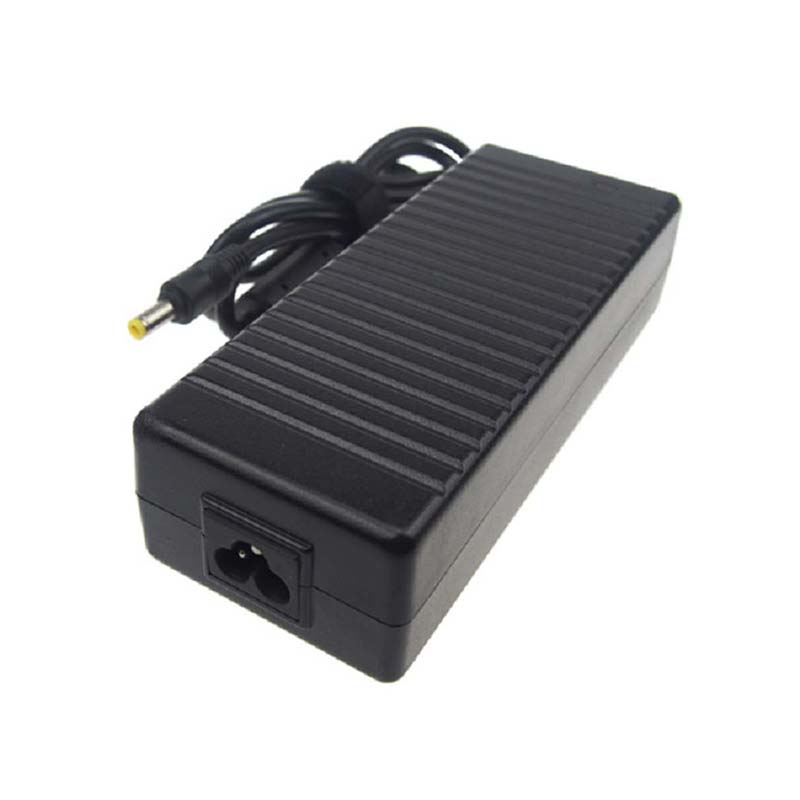

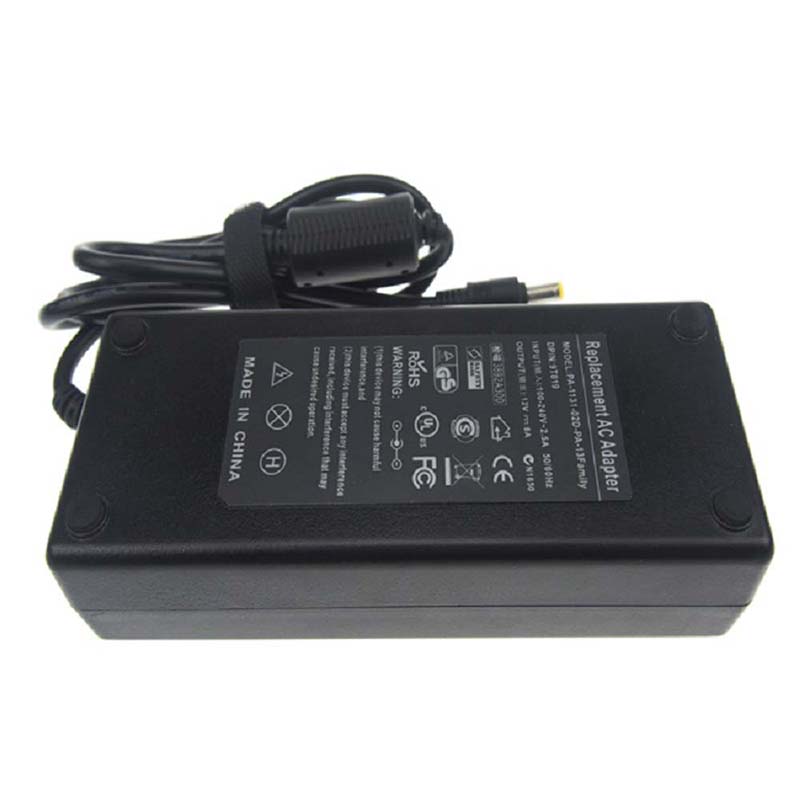

12V 8A AC DC Power Adapter Switching Mode Power Supply for LED Light/LCD TV



Product Description





♦ Power Input: AC100-240V Worldwide Input Voltage, Please verify carefully that the DC Output (12V 8A) and connector Tip size (in the pictures) match your original adapter before purchasing.



♦ For this plastic desktop adapter we can make from 12V 1A 2A 3A 4A 5A 6A 7A 8A 9A 10A 12.5A...for



other output, we can also customized.



♦Wide application: this 12V 8A desktop power adapter can be used for led strip light, LCD Monitor, LCD TV,Set-top box,CCTV camera...



♦With full power, can be used for led/LCD moniter/CCTV camera run constantly each day.



♦Each adapter you can choose your right stanard ac power cord with it.









Specifications


































































































































































































Specifications



Model No.



YLC29



AC Input



Nominal Input Voltage



AC 100V~240V



Input Voltage Range



AC 95V~265V



Input Frequency



50/60Hz



DC Output



Output Voltage



12V



Output Current



8A



Output Power



120W



DC Connector Size



5.5*2.5 mm or 5.5*2.1mm



Line Regulation



2%



Load Regulation



5%



Ripple Noise



180 Mvp-p



Efficiency



>85%



Output Cable Standard



1.0 mm2 Pure Copper



Output Cable Length



1.5m normally or customized requirement



Environment



Operating Temperature



0°C ~40°C



Operating Humidity



5%~95%RH



Storage Temperature



-20°C ~85°C



Storage Humidity



5%~95%RH



Protection



Over Load Protection



Short Circuit Protection



Over Current Protection



Over Temperature Protection



Certificates



CE, ROHS, FCC



Dimensions



Adapter Size



16.6*6.5*3.9CM



Adapter Weight



590G



Inner Box Size



21.5*14.5*5.5CM



Inner Box Weight



60G



PCS/CTN



50PCS



Outer Carton Size



55.5*44*37.5CM



Outer Carton Weight



1100G



GW/CTN



33600G



Package



Inner Box



Normally neutral brown box or customized requirement



Outer Carton



Normally neutral standard carton or customized requirement



Warranty



Guarantee



30 days



Warranty



2 years



Terms and Conditions



MOQ



100PCS for mixed order



Payment Terms



T/T, L/C, PayPal, western union



Delivery Time



3-5 days

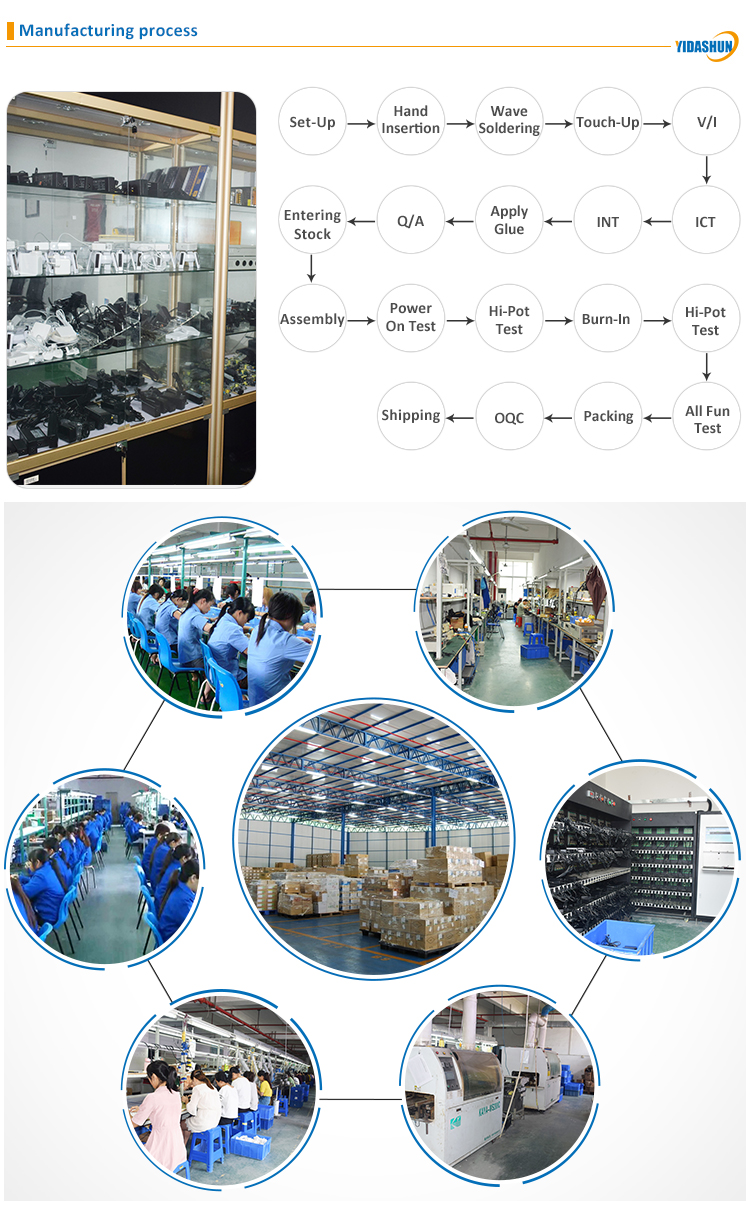

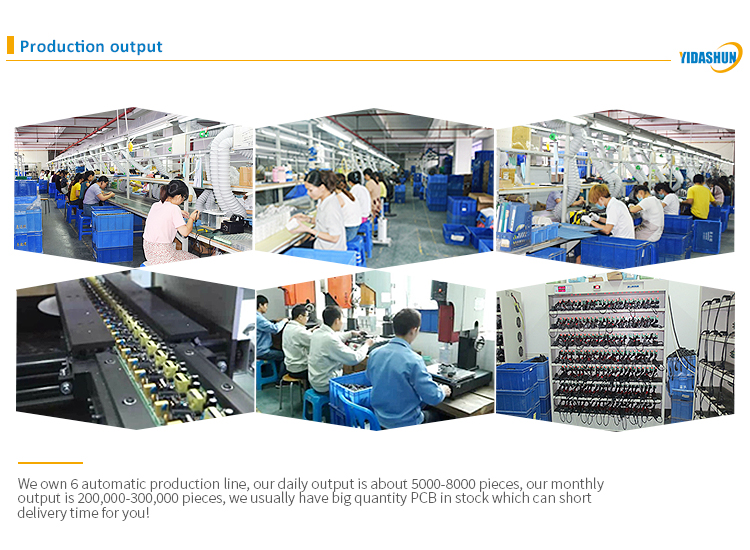

Manufacturing Process



1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping

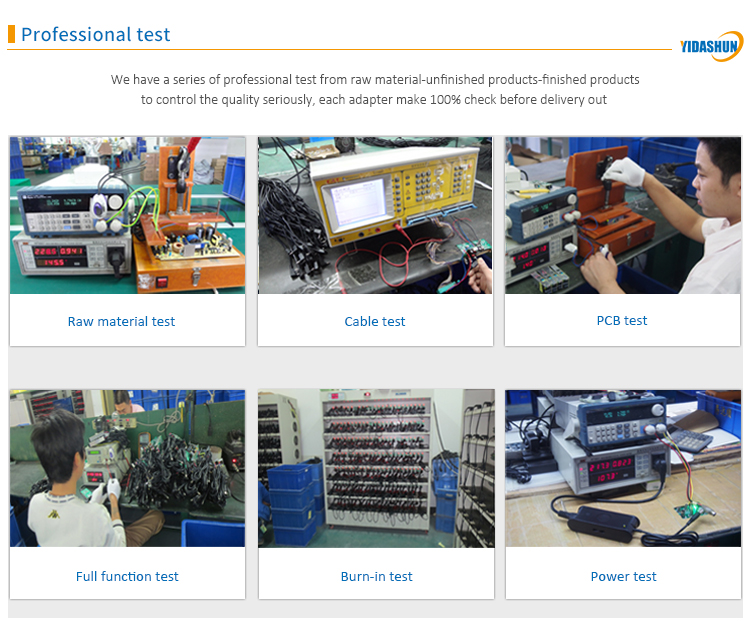

Test Procedures



1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

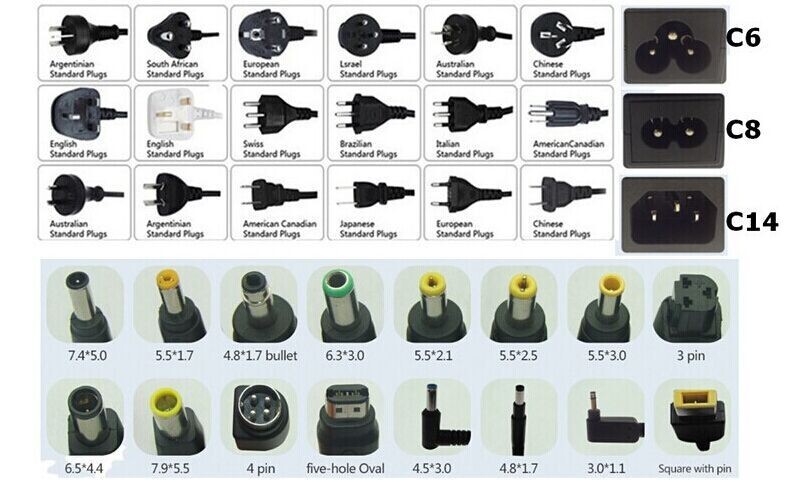

Different AC power cable, dc connector size, AC plug for choose!





Packaging & Shipping



Packing details:



1. Regular package: each one with bubble bag,then 50pcs in one carton.



2. Individual package: inner box inside,50pcs/carton.



3. Customized package is accepted.
Delivery time: 1-3 days for samples,3-15 days for batch order.








Shipping: by Sea / by Air / by Express (Customers specifying freight forwarders and negotiable shipping methods. )



INTERNATIONAL AIR MAIL



Payment:



Fast Delivery:



Different qty order will be required for different days .





















































Company Information










Certifications








FAQ
















>>What is your warranty for adapters?



We usually offer 1 year warranty.



>>What is your MOQ and sample term?



For normal items,our MOQ is 100pcs, we can offer you free samples, but you pls pay shipping costs. If customized your products or package,MOQ is 1000pcs at least.



>> How do you deal with defective rates?



Our defective rates for high quality adapterusually is about 0.3%~0.5% below 1%, we usually will send you replacement part in next order for RMA. For big order, we can offer you spare parts.



>> Can can accept OEM&ODM?



yes,we can. We can customized the products,labels,package as your demands. we can make your logo on products or package.



>> What is your payment terms?



we accept T/T,paypal, western union, L/C,cash...
