    ac adapter output 24v 5a 120w 4 pin desktop ac dc power adaptor for led strip,cctv

    Model NO :
    YO321
    minimum order :
    1 piece
    Country of Origin :
    shenzhen
    Place of Origin:Guangdong, China
    Brand Name:OEM
    Model Number:YO321
    Output Type:DC
    Connection:Plug In
    products:24v 5a power adapter
    Nominal Input Voltage:AC 100V~240V
    Input Frequency:50/60Hz
    Efficiency:>85%
    Output Power:120W
    Input Voltage Range:AC 95V~265V
    output:24V 5A
    Quantity :
    $5.68 - $7.00 / piece
    add to cart
    Contact Now
    • Place of Origin:Guangdong, China
    • Brand Name:OEM
    • Model Number:YO321
    • Output Type:DC
    • Connection:Plug In
    • products:24v 5a power adapter
    • Nominal Input Voltage:AC 100V~240V
    • Input Frequency:50/60Hz
    • Efficiency:>85%
    • Output Power:120W
    • Input Voltage Range:AC 95V~265V
    • output:24V 5A
    • Guarantee:30 days
    • Adapter Size:16.6*6.5*3.9CM
    • Adapter Weight:590G

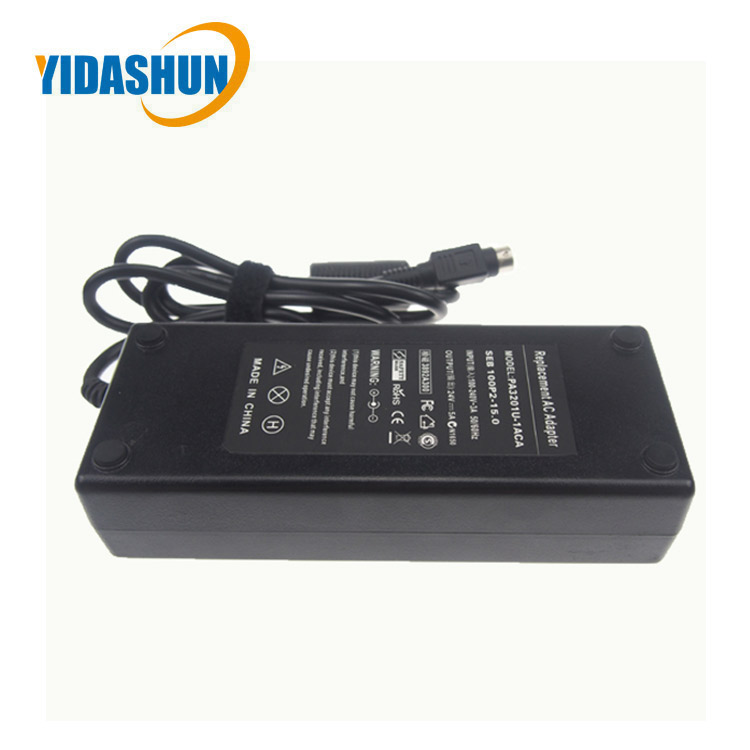

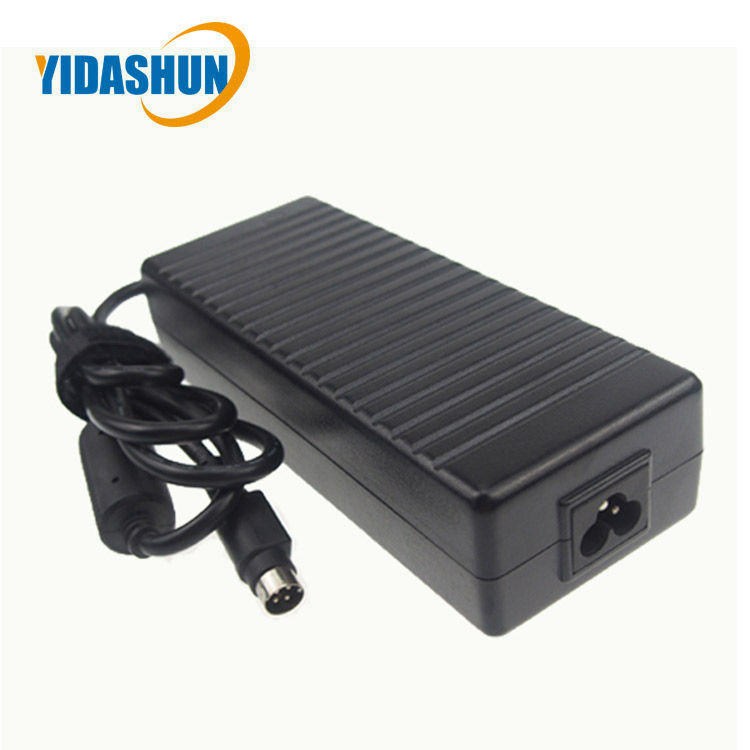

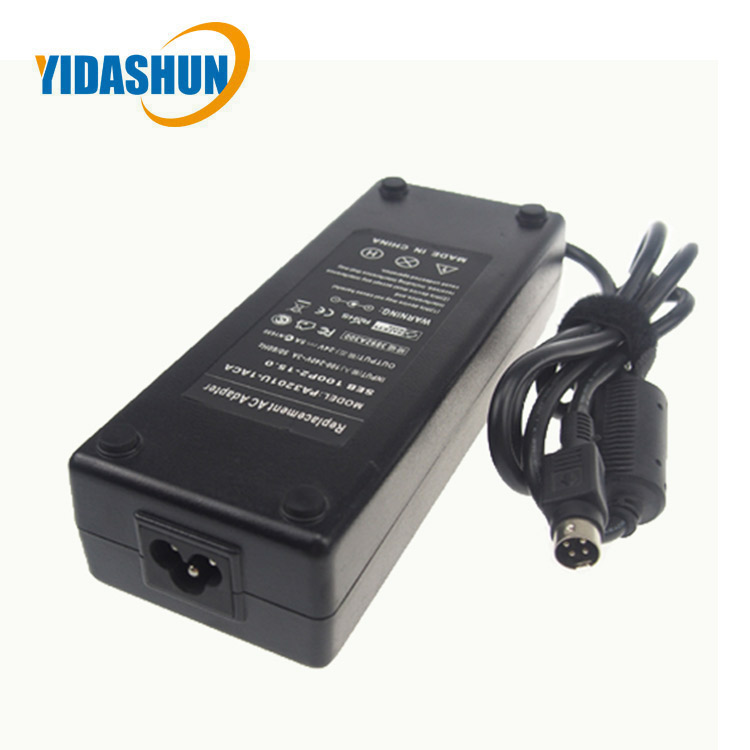

    ac adapter output 24v 4 pin 5a 120w desktop dc regulated switching power supply for led strip,cctv

    Product Description

    >>Products specifications:

    Specifications

    Model No.

    YO321

    AC Input

    Nominal Input Voltage

    AC 100V~240V

    Input Voltage Range

    AC 95V~265V

    Input Frequency

    50/60Hz

    DC Output

    Output Voltage

    24V

    Output Current

    5A

    Output Power

    120W

    DC Connector Size

    4 PIN

    Line Regulation

    2%

    Load Regulation

    5%

    Ripple Noise

    180 Mvp-p

    Efficiency

    >85%

    Output Cable Standard

    1.0 mm2 Pure Copper

    Output Cable Length

    1.5m normally or customized requirement

    Environment

    Operating Temperature

    0°C ~40°C

    Operating Humidity

    5%~95%RH

    Storage Temperature

    -20°C ~85°C

    Storage Humidity

    5%~95%RH

    Protection

    Over Load Protection

    Short Circuit Protection

    Over Current Protection

    Over Temperature Protection

    Certificates

    CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE

    Dimensions

    Adapter Size

    16.6*6.5*3.9CM

    Adapter Weight

    550G

    Inner Box Size

    21.5*14.5*5.5CM

    Inner Box Weight

    60G

    PCS/CTN

    50PCS

    Outer Carton Size

    55.5*44*37.5CM

    Outer Carton Weight

    1100G

    GW/CTN

    31600G

    Package

    Inner Box

    Normally neutral brown box or customized requirement

    Outer Carton

    Normally neutral standard carton or customized requirement

    Warranty

    Guarantee

    30 days

    Warranty

    2 years

    Terms and Conditions

    MOQ

    100PCS for mixed order

    Payment Terms

    T/T, L/C, PayPal, western union

    Delivery Time

    3-5 days

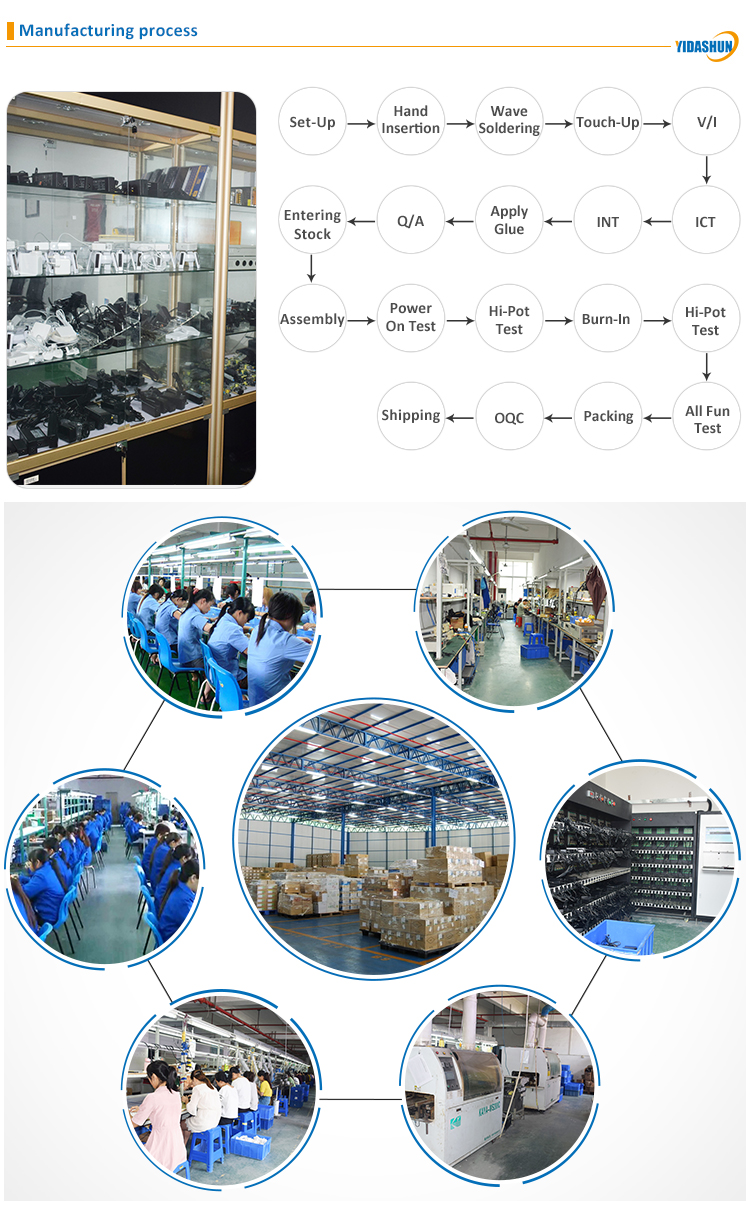

    Manufacturing Process

    1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping

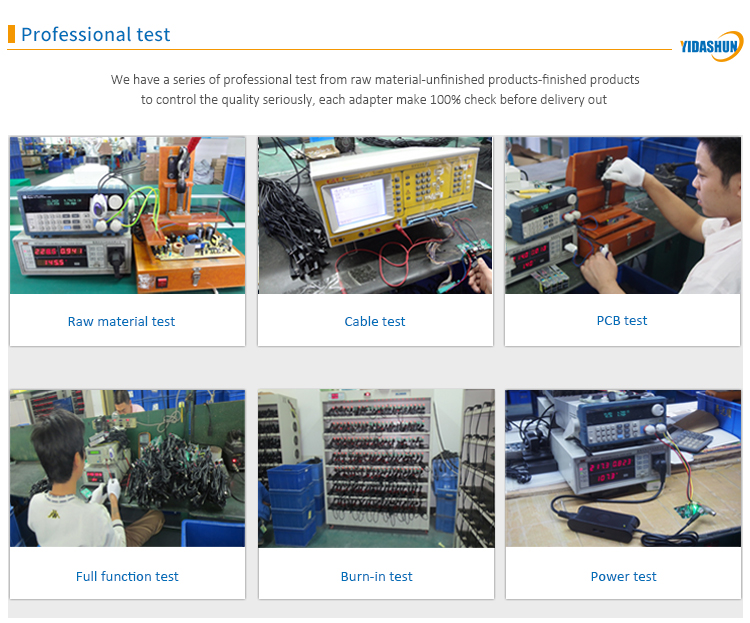

    Test Procedures

    1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

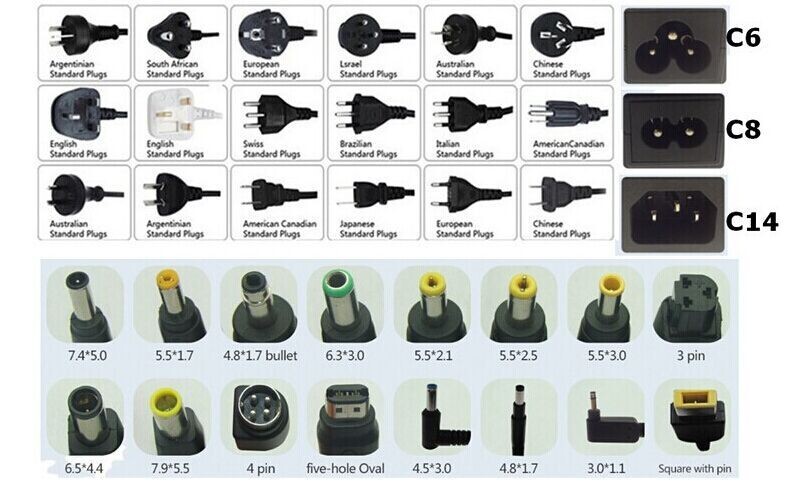

    Different AC power cable, dc connector size, AC plug for choose!

    Packaging & Shipping

    Packing details:

    1. Regular package: each one with bubble bag,then 50pcs in one carton.

    2. Individual package: inner box inside,50pcs/carton.

    3. Customized package is accepted.
    Delivery time: 1-3 days for samples,3-15 days for batch order.

    Shipping: by Sea / by Air / by Express (Customers specifying freight forwarders and negotiable shipping methods. )

    INTERNATIONAL AIR MAIL

    Payment:

    Fast Delivery:

    Different qty order will be required for different days .

    Our Services

    1. Any inquiries will be replied within 24 hours.

    2.Professional manufacturer . Welcome to visit our official websites.

    3. Advantages

    12 years of experience in production and sales
    independent brand
    worldwide certificates
    high-quality products
    guaranteed after-sale services

    4. OEM/ODM available

    Silk print LOGO;
    Customized labels
    Customized color box
    Any your ideas on the product we can help you design and put it into production

    5. Delivery

    sample order in stock, delivery within 3 days; and3-7 days for bulk order , 15-20 days for customer OEM products.

    6. payment

    We accept T/T, PayPal, Western Union, Money Gram,etc.

    6 .After -sale Service .

    all products will be strictly quality checked before packing, and be well packed before shipping,each one has 1 year warranty, broken parts can be fixed or replaced in next order

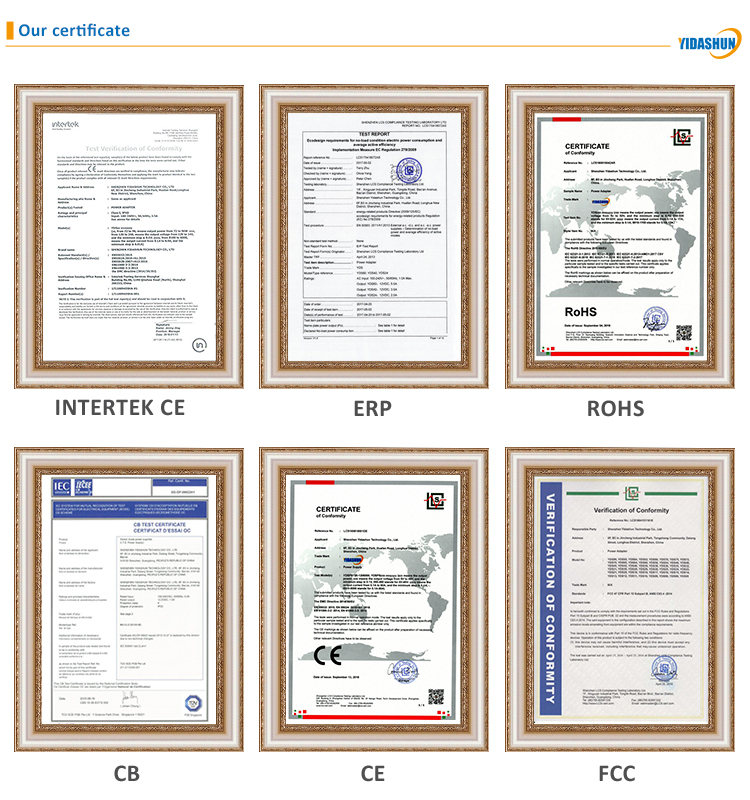

    Certifications
