  • Application:LED Light, Electronic Products
  • Interface Type:5.5*2.5mm
  • Material:ABS
  • Output Voltage:36
  • Output Current:3A
  • Cable length:1.2m
  • Place of Origin:Guangdong, China
  • Frequency:60Hz, 50Hz
  • Plug standard:UK, CN, IT, JP, US, Au, EU, sa
  • Brand Name:OEM
  • Model Number:YO483
  • Output Type:DC
  • Connection:Desktop
  • products:48V 3A power adapter
  • Nominal Input Voltage:AC 100V~240V
  • Input Frequency:50/60Hz
  • Efficiency:>85%
  • Output Power:144W
  • Input Voltage Range:AC 95V~265V
  • output:48V 3A
  • Guarantee:30 days
  • Adapter Size:16.6*8.2*4.2CM
  • Adapter Weight:200G

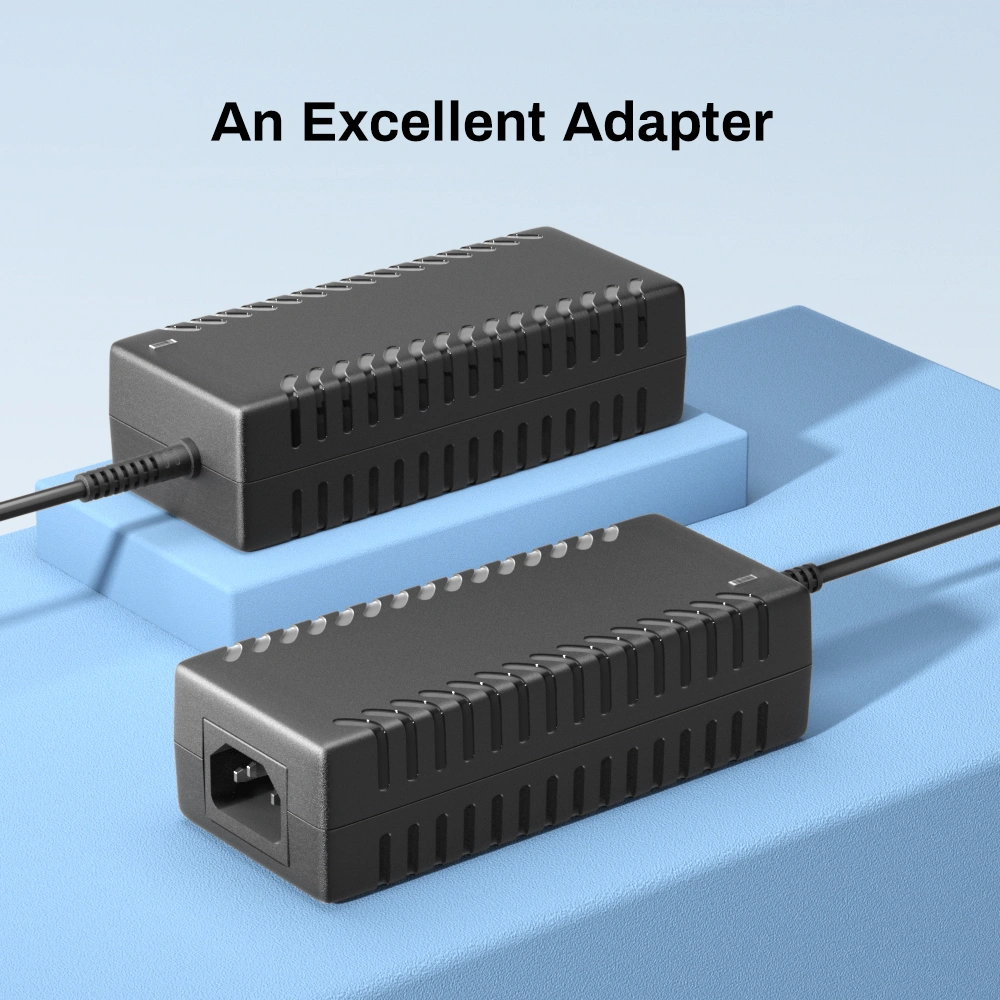

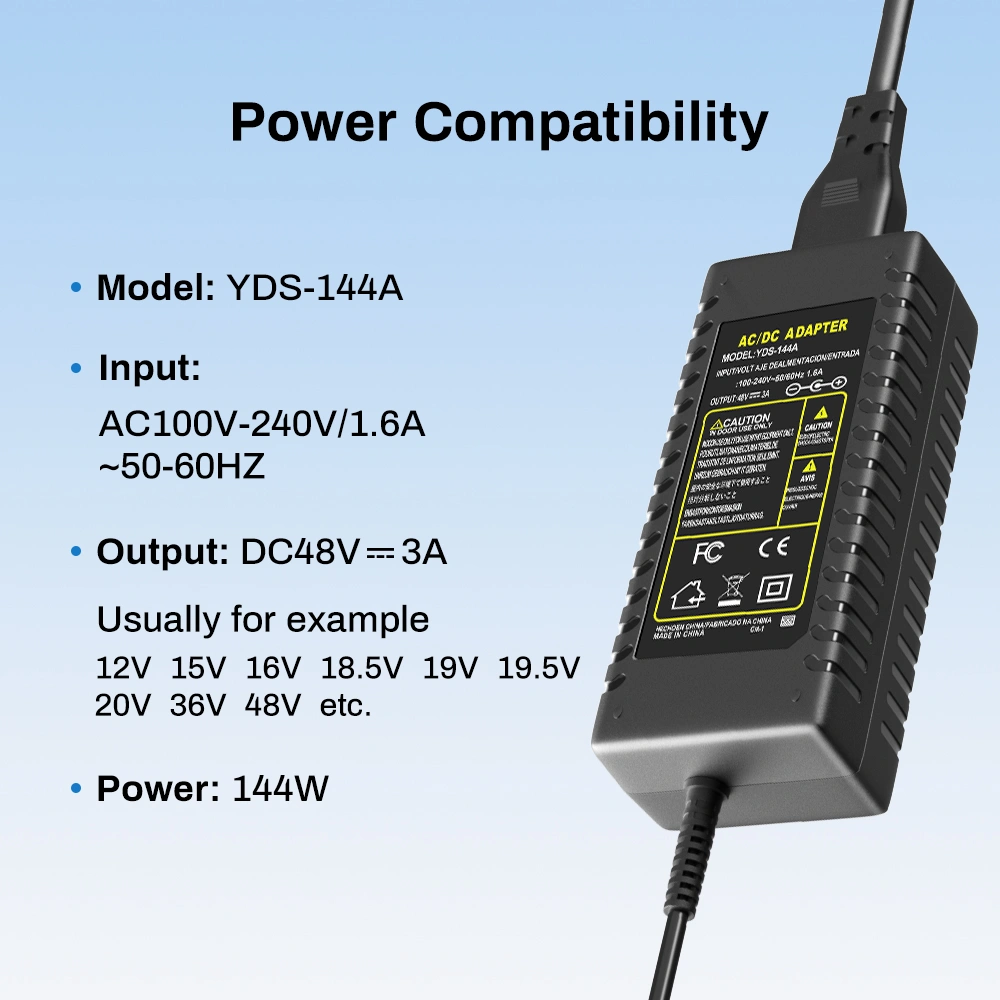

48V 2.5A 3A Plastic Desktop AC/DC Switching Power Adapter



Product Description





>> Products features:



♦Power Input: AC100-240V Worldwide Input Voltage, Please verify carefully that the DC Output (48V 3A) and connector Tip size (in the pictures) match your original adapter before purchasing.



♦ For this plastic desktop adapter we can make from 48V 1A 2A 3A 4A 5A ...for



other output, we can also customized.



♦wide application: It can be used for led strip light, LCD Monitor, LCD TV,Set-top box,CCTV camera...



♦With full power, can be used for led/LCD moniter/CCTV camera run constantly each day.



♦Each adapter you can choose your right stanard ac power cord with it.





>>Products specifications:


































































































































































































Specifications



Model No.

YO483


AC Input



Nominal Input Voltage



AC 100V~240V



Input Voltage Range



AC 95V~265V



Input Frequency



50/60Hz



DC Output



Output Voltage



48V



Output Current



3A



Output Power



144W



DC Connector Size

5.5*2.1mm or 5.5*2.5mm


Line Regulation



2%



Load Regulation



5%



Ripple Noise



180 Mvp-p



Efficiency



>85%



Output Cable Standard



1.0 mm2 Pure Copper



Output Cable Length



1.5m normally or customized requirement



Environment



Operating Temperature



0°C ~40°C



Operating Humidity



5%~95%RH



Storage Temperature



-20°C ~85°C



Storage Humidity



5%~95%RH



Protection



Over Load Protection



Short Circuit Protection



Over Current Protection



Over Temperature Protection



Certificates



CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE

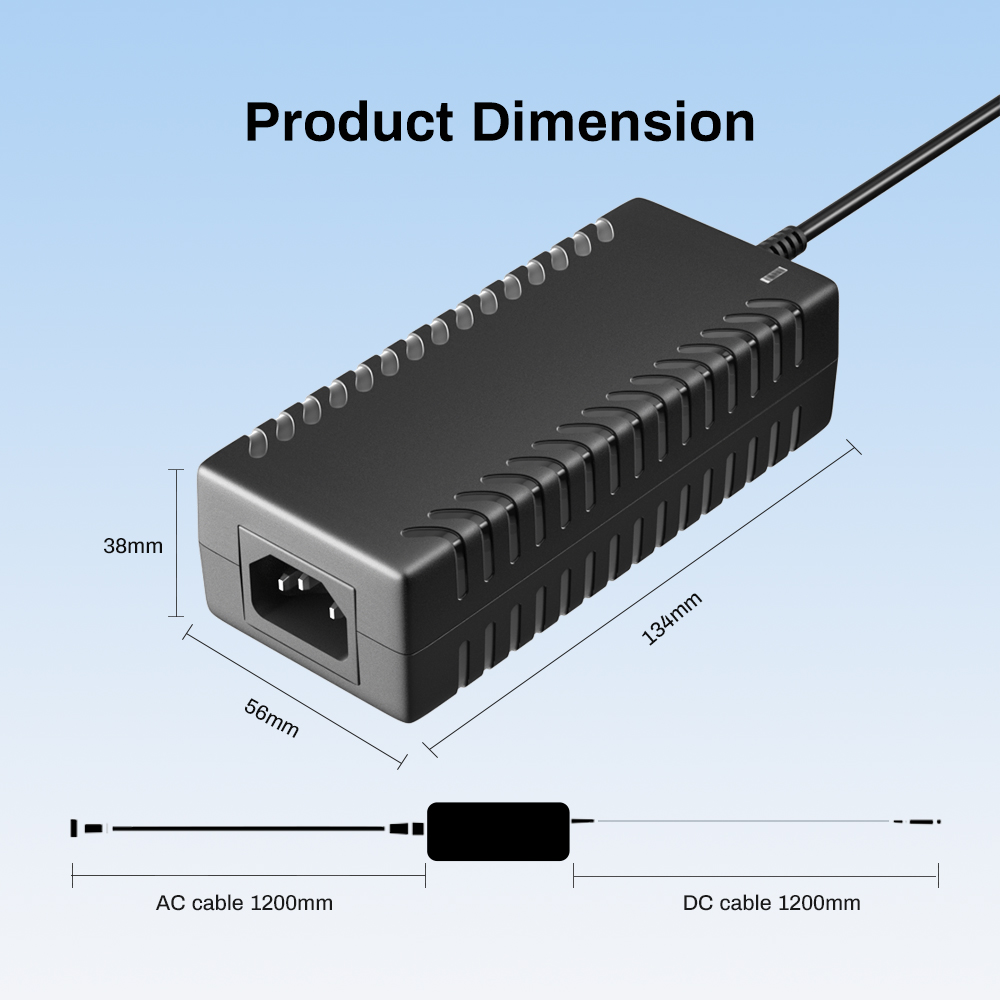

Dimensions



Adapter Size



16.6*8.2*4.2CM



Adapter Weight



603G



Inner Box Size



21.5*14.5*5.5CM



Inner Box Weight



60G



PCS/CTN



50PCS



Outer Carton Size



55.5*44*37.5CM



Outer Carton Weight



1100G



GW/CTN



34250G



Package



Inner Box



Normally neutral brown box or customized requirement



Outer Carton



Normally neutral standard carton or customized requirement



Warranty



Guarantee



30 days



Warranty



2 years



Terms and Conditions



MOQ



100PCS for mixed order



Payment Terms



T/T, L/C, PayPal, western union



Delivery Time



3-5 days

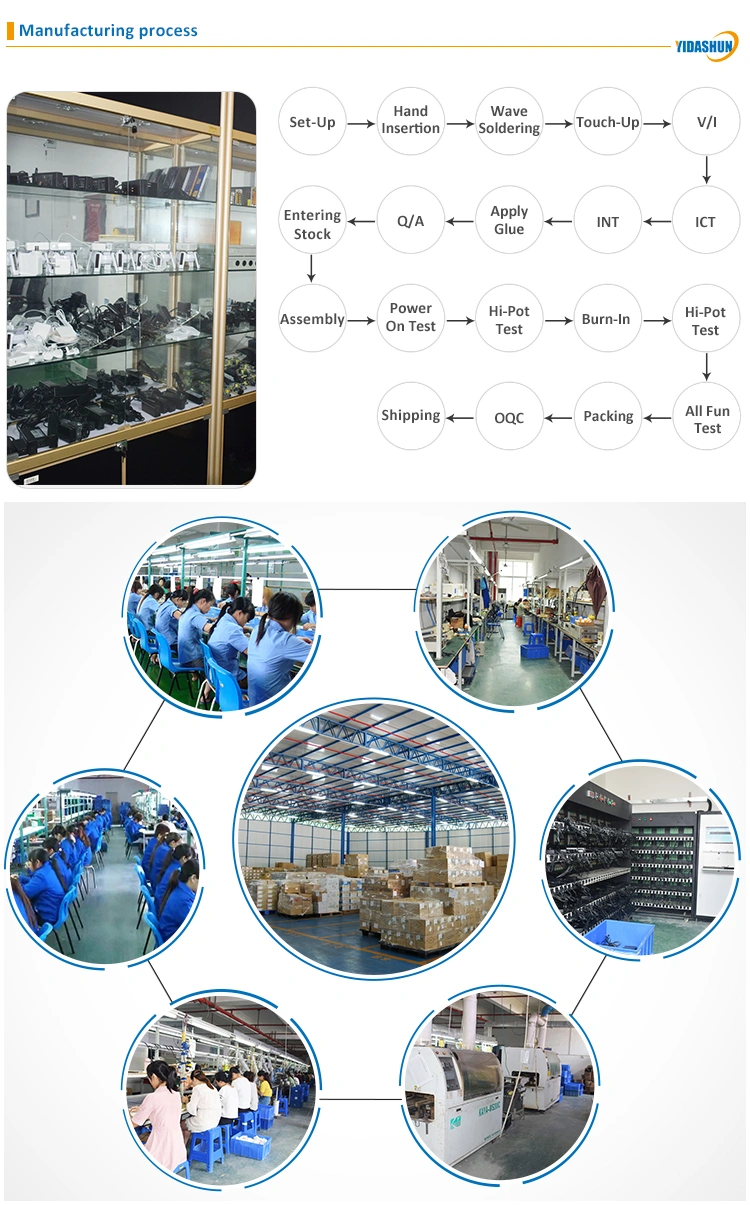

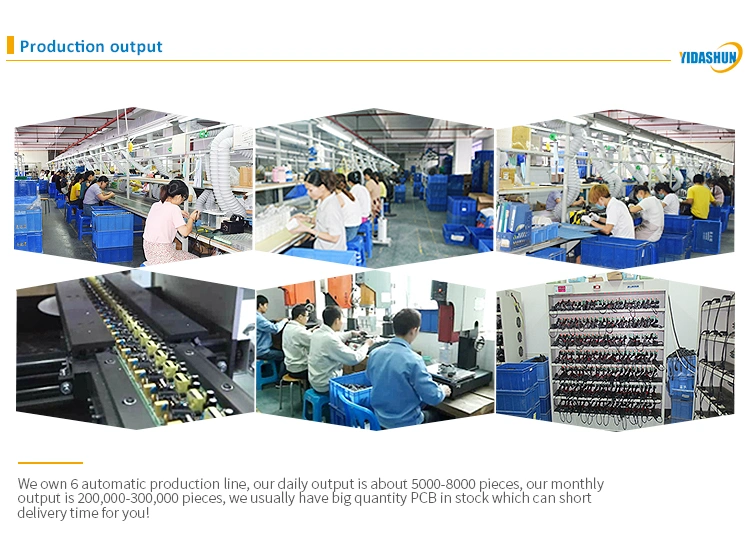

Manufacturing Process



1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping

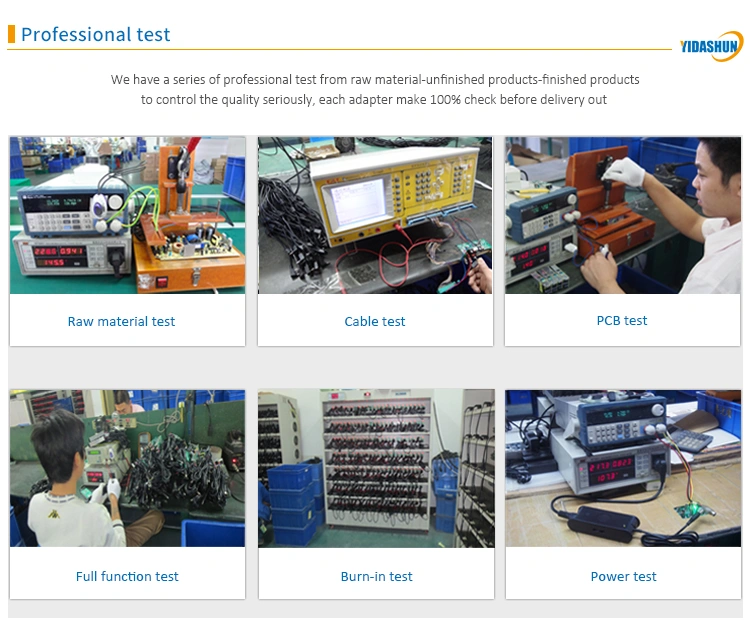

Test Procedures



1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

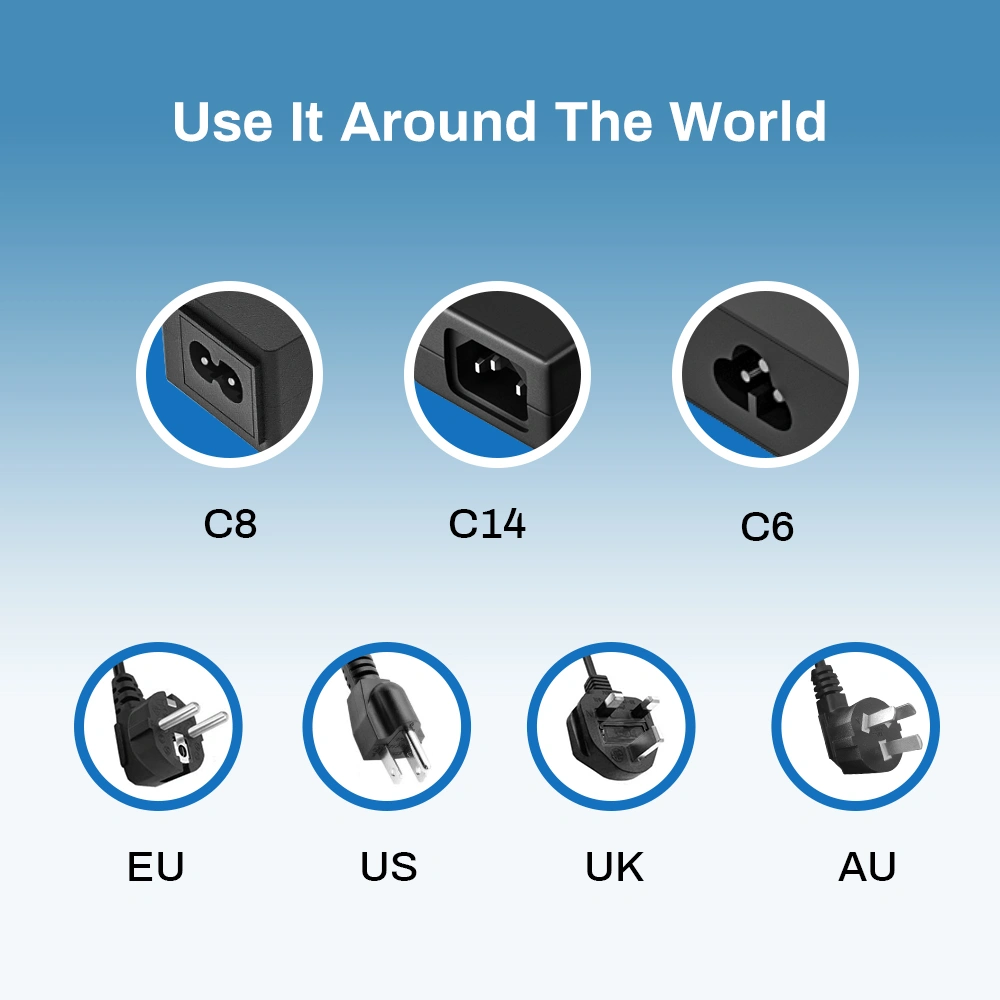

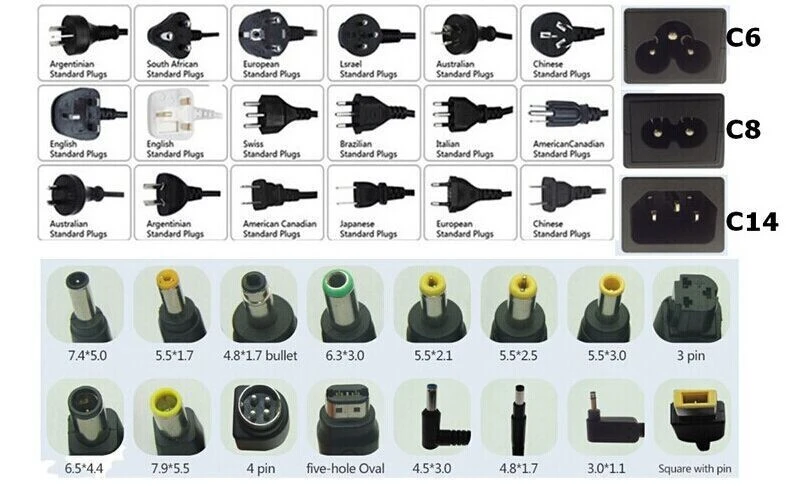

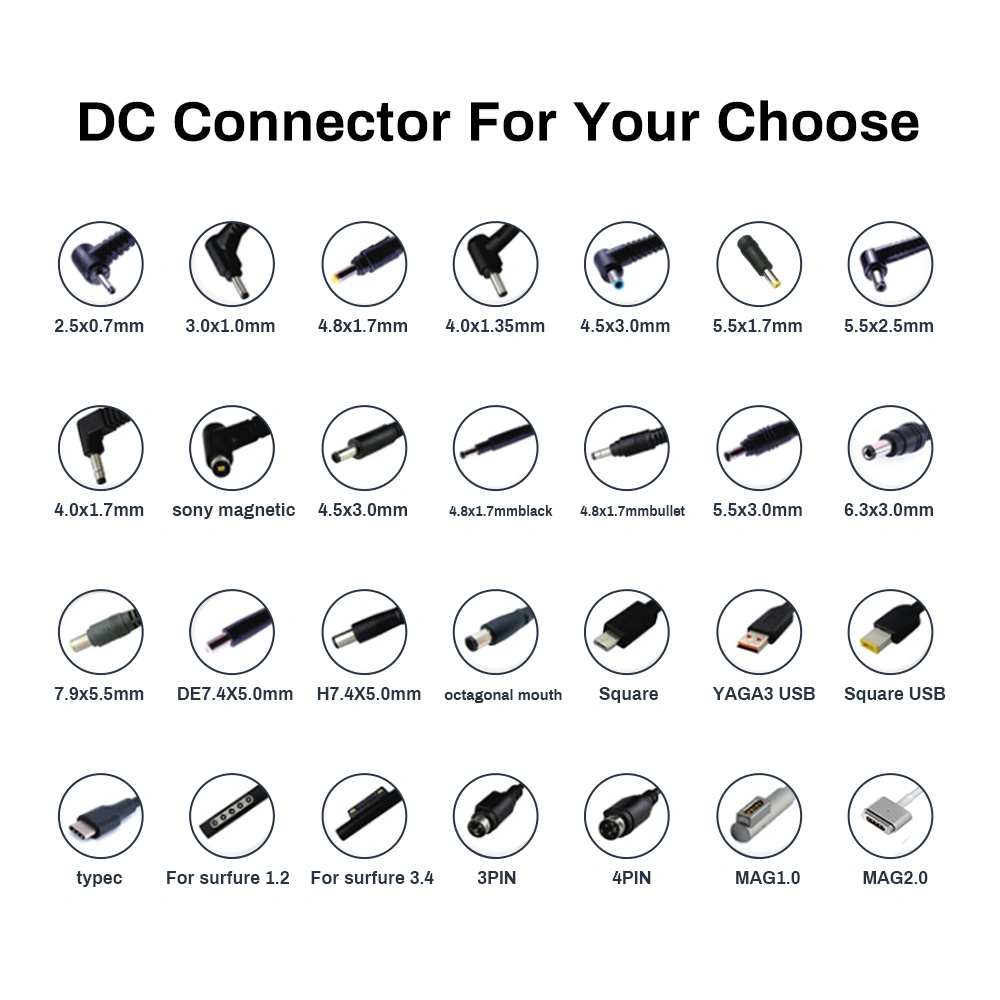

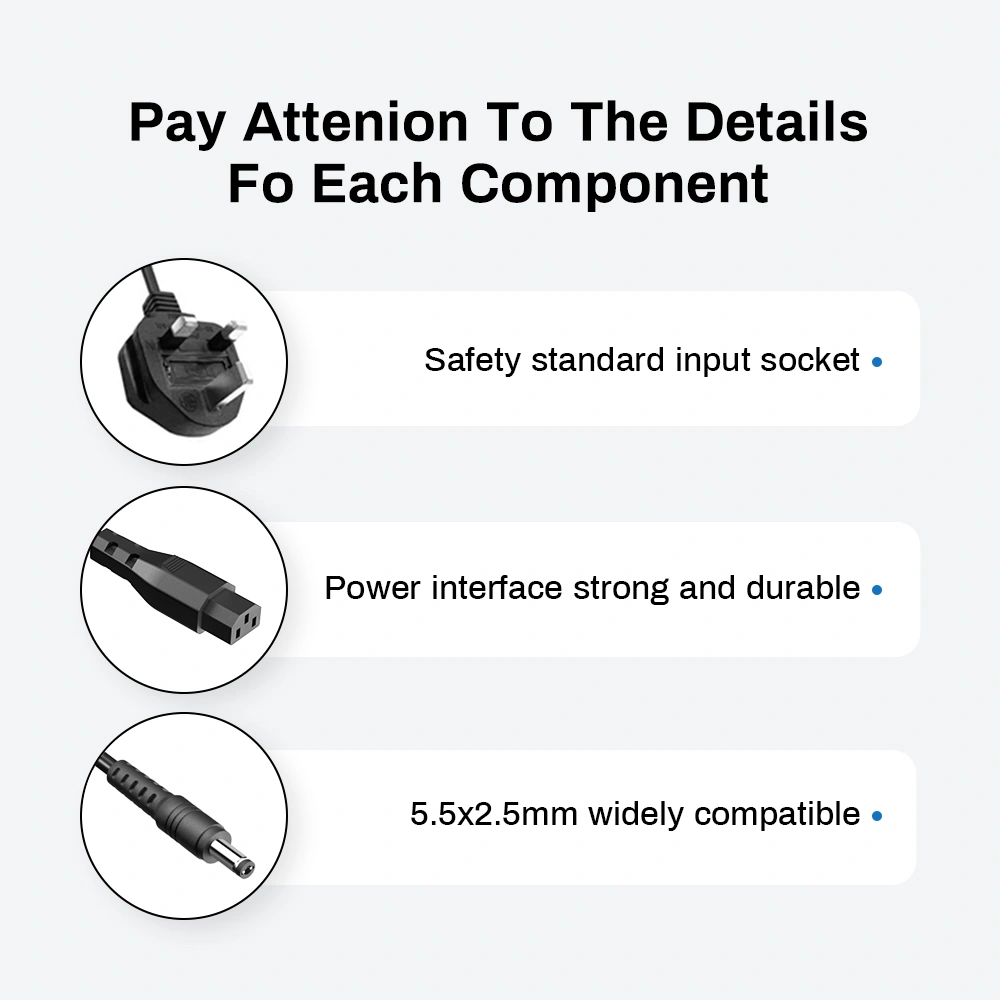

Different AC power cable, dc connector size, AC plug for choose!





Packaging & Shipping





Each one packed in the Brown Box(with sealed bag and Polly bag inside),then 50pcs packed into cartons,



Package can be customized as your demands.











>> Shipping details:





♦ FedEx/DHL/UPS/TNT for samples, Door-to-Door;



♦ By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;



♦ Customers specifying freight forwarders or negotiable shipping methods;



♦ Delivery Time: 1-3 days for samples; 5-15 days for batch goods.







Company Information





Certifications










FAQ
















>>What is your warranty for adapters?



We usually offer 1 year warranty.



>>What is your MOQ and sample term?



For normal items,our MOQ is 100pcs, we can offer you free samples, but you pls pay shipping costs. If customized your products or package,MOQ is 1000pcs at least.



>> How do you deal with defective rates?



Our defective rates for high quality adapterusually is about 0.3%~0.5% below 1%, we usually will send you replacement part in next order for RMA. For big order, we can offer you spare parts.



>> Can can accept OEM&ODM?



yes,we can. We can customized the products,labels,package as your demands. we can make your logo on products or package.



>> What is your payment terms?



we accept T/T,paypal, western union, L/C,cash...
