New Type Plastic 12V to 15V 5A 4CH Power Supply for CCTV Cameras and LED Strips

Model NO :

YDSPS060-120-4

Delivery :

EXW

minimum order :

100 pieces

Supply Ability :

10000pieces / Month

Stock Time :

20Day

Country of Origin :

China

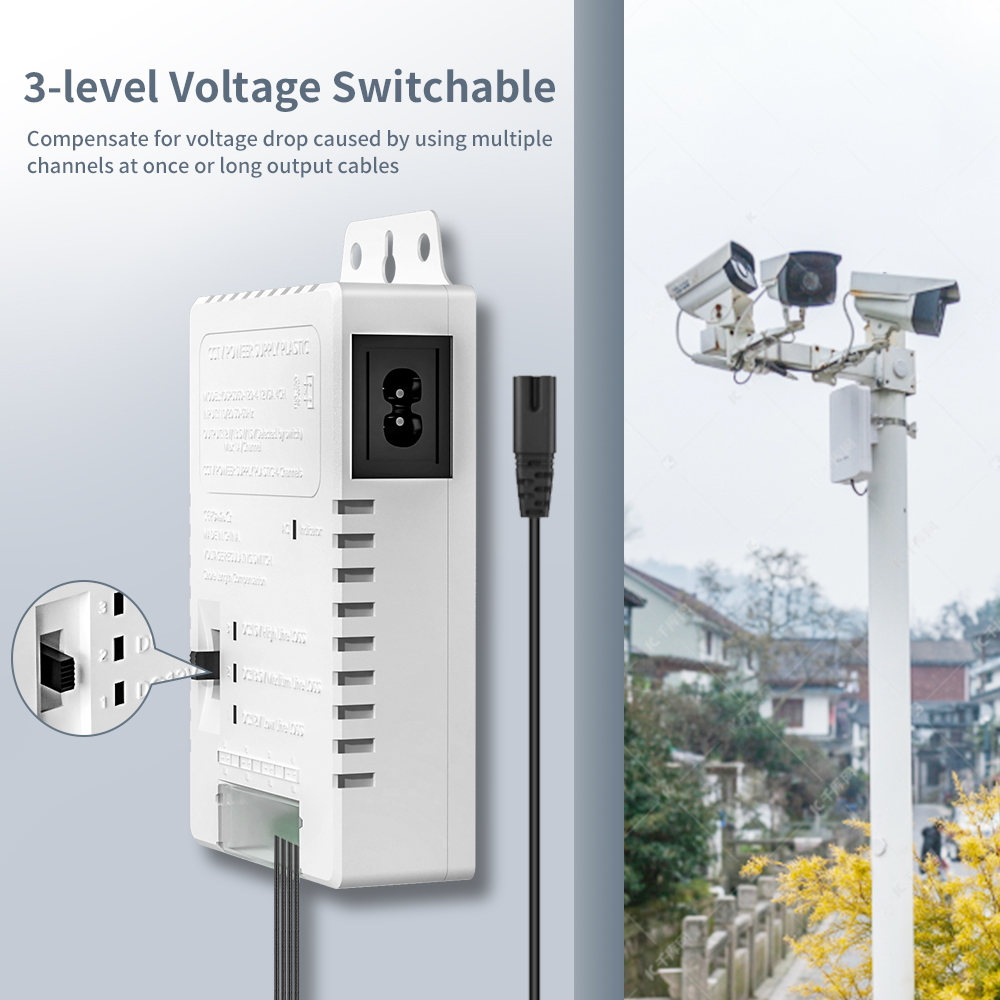

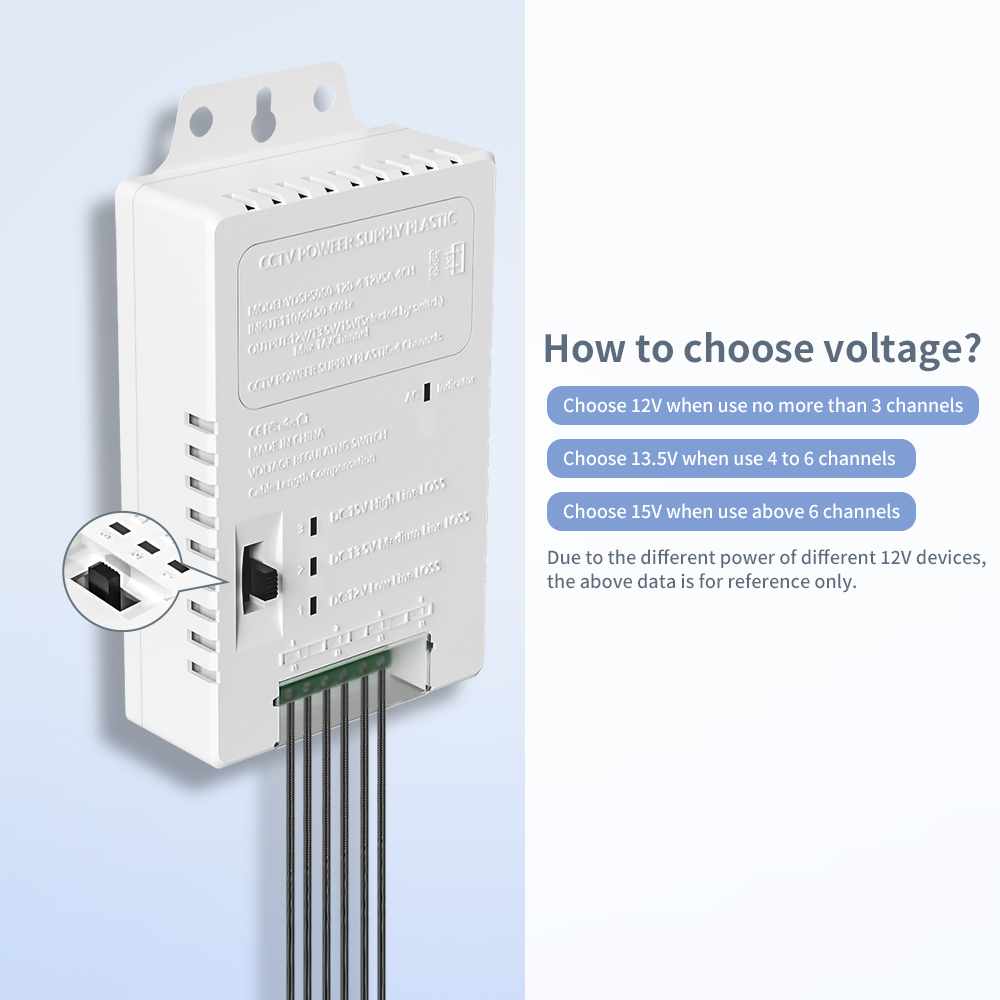

New-type 12V 5A CCTV/LED Power Supply: It has a 3-level adjustable voltage feature to fix voltage drop issues. When you use multiple channels at once or long output cables and it causes a voltage drop, just adjust the voltage. That'll give enough power to keep the camera working steadily.
Input: 100-240V AC; Output voltage: DC 12V 13.5V 15V adjustable; Max output power: 60W; Max current per channel: 1 Amp; 4 output channels in total.

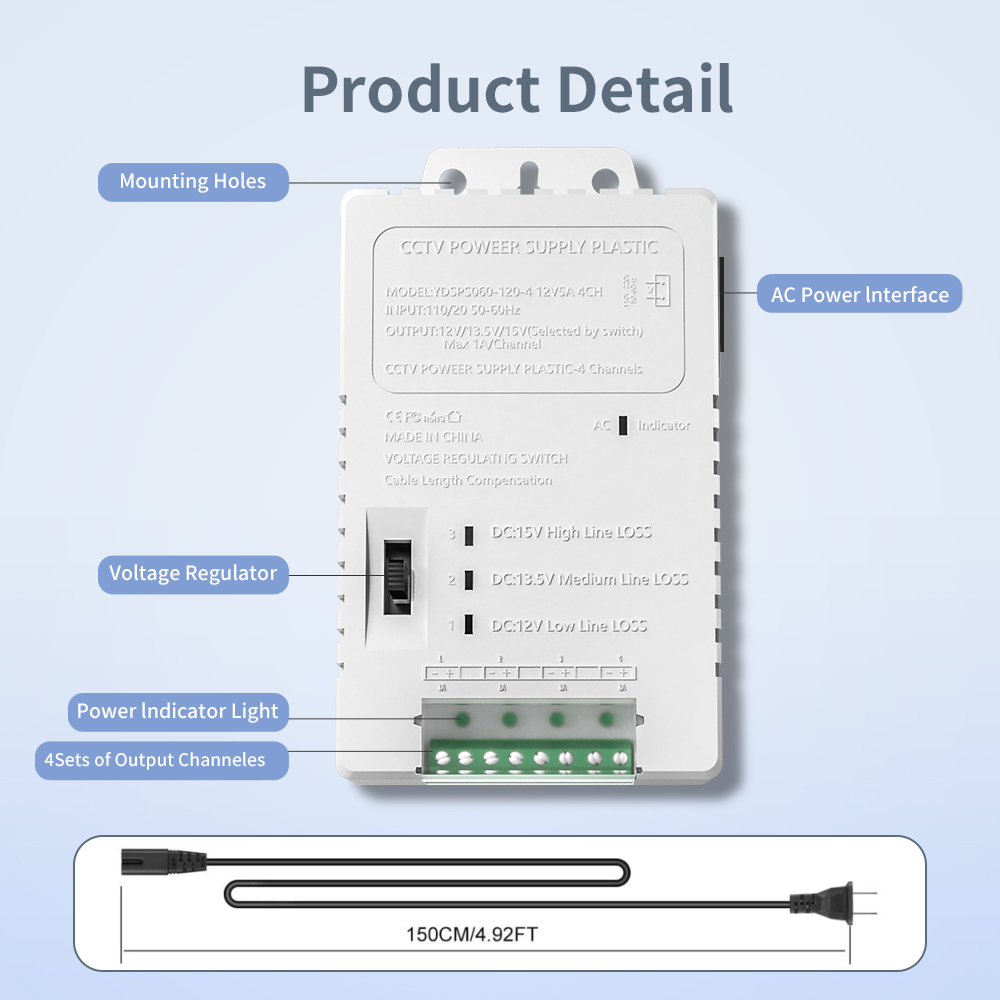

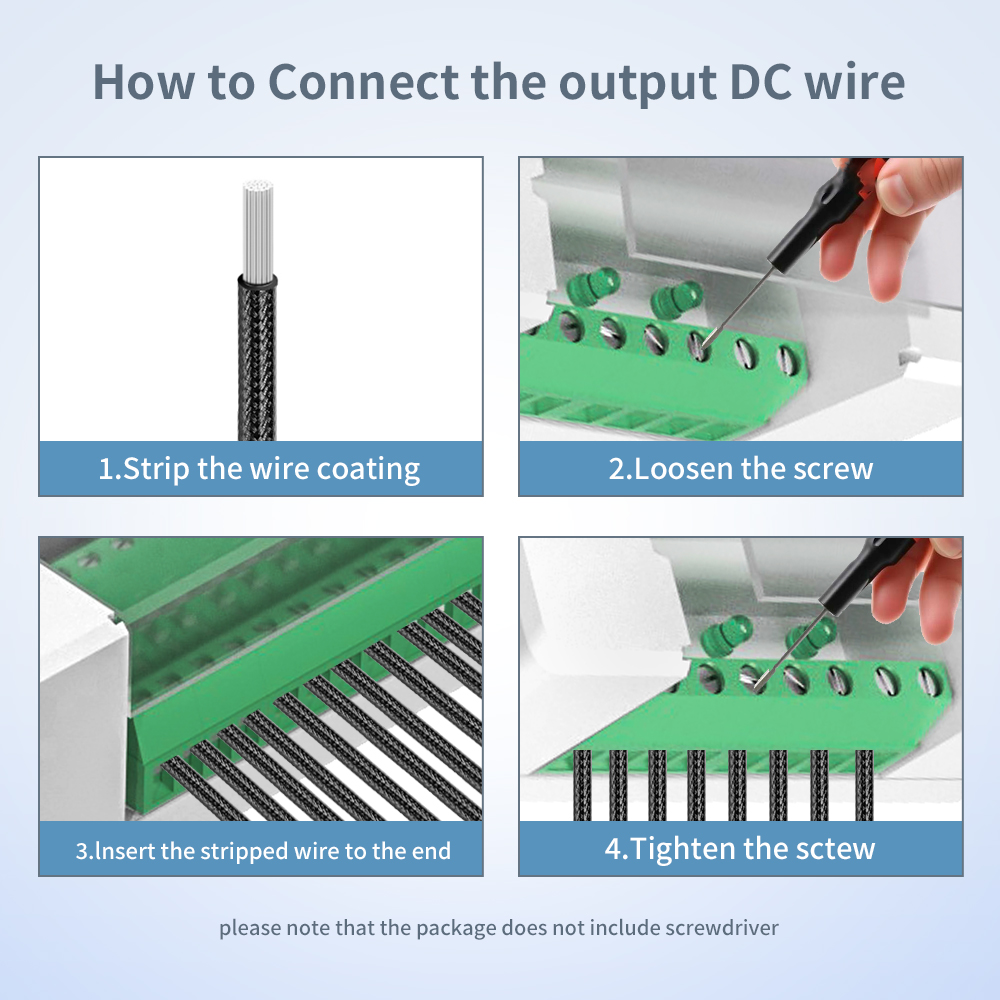

Easy to Use: The AC input end adopts a quick direct plug-in method. The output end uses a screw wiring method. There are hanging holes on the top, making it convenient to install on the wall.

Quantity :

US $4.12 - US $4.75 / pieces

add to cart

Contact Now

New Type Plastic 12V to 15V 5A 4CH Power Supply for CCTVCameras and LED Strips

New Type Plastic 12V to 15V 5A 4CH Power Supply for CCTVCameras and LED Strips
Model No.	YDSPS060-120-4
Input	Voltage	AC 100-240V Worldwide
	Vibration Input Voltage Range	AC 95-265V
	Frequency	50-60Hz
Output	Voltage	DC12V / 13.5V / 15V Switchable
	Current	5A
	MaxPower	60W
	Max current per channel	1 Amp, 4 output channels in total.
	Typical Efficiency	85%
	Adjustable Range of Voltage	DC 12V / 13.5V / 15V
	Max. Ripple & Noise	250mV
Protection	Over Load	105-115% of Rated Output Power
Protection	Short Circuit	Protection Type: Auto Recovery
Electric Strength	High-pot test	3KV AC
Environment	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	20°C~+85°C,10~95%RH
	MTBF	>200K hrs.@25°C(MIL-HDBK-217F)
Warranty	1year

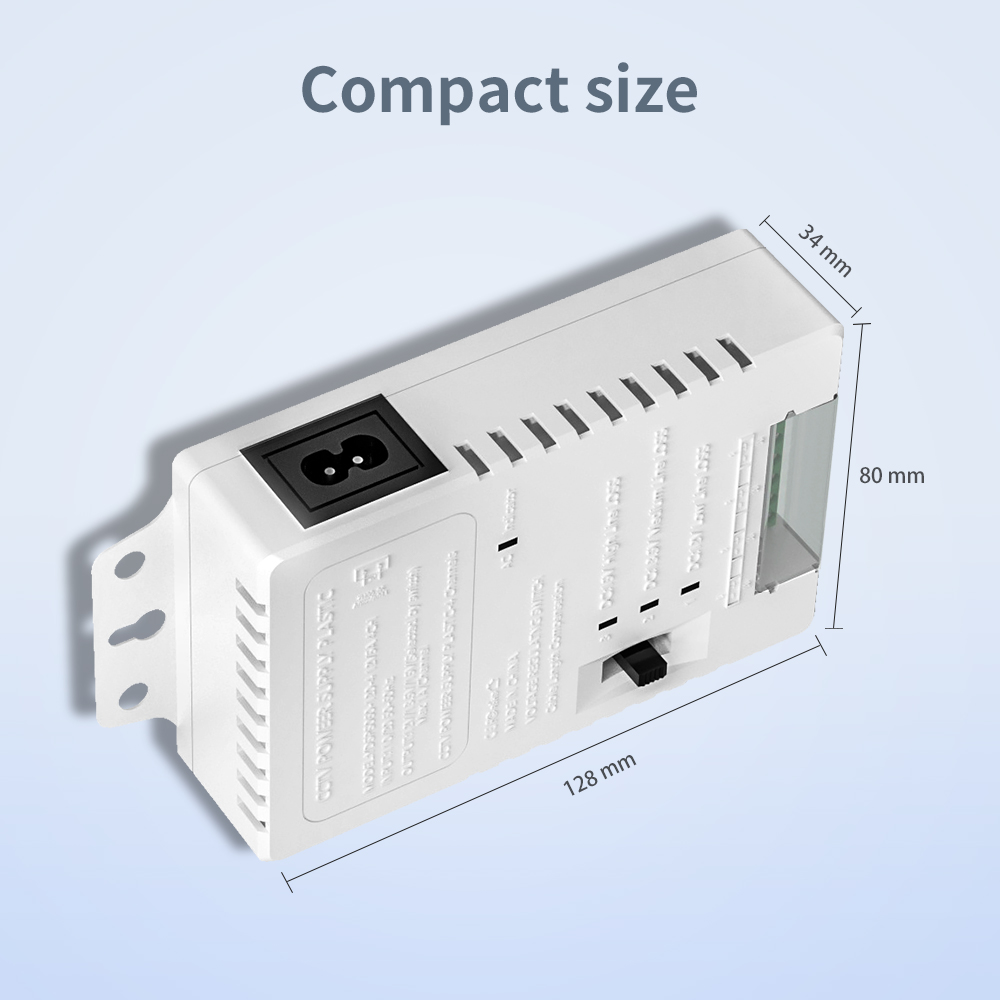

Feature	*Dimension(LWH)*	*1288034 mm*
	Weight	194g (only power supply weight)
	PCS/CTN	50PCS/CTN
	CTN size	*63.530.620 cm*
	GW/CTN	16 kg
Safety & EMC	Safety Standards	CE RoHs

Product features:

This is New-type 12V 5A CCTV/LED Power Supply: It has a 3-level adjustable voltage feature to fix voltage drop issues. When you use multiple channels at once or long output cables and it causes a voltage drop, just adjust the voltage. That'll give enough power to keep the camera working steadily.
Input: 100-240V AC; Output voltage: DC 12V 13.5V 15V adjustable; Max output power: 60W; Max current per channel: 1 Amp; 4 output channels in total.
Easy to Use: The AC input end adopts a quick direct plug-in method. The output end uses a screw wiring method. There are hanging holes on the top, making it convenient to install on the wall.
Long-lasting Performance：With an independent PTC fuse and LED indicator for each output.

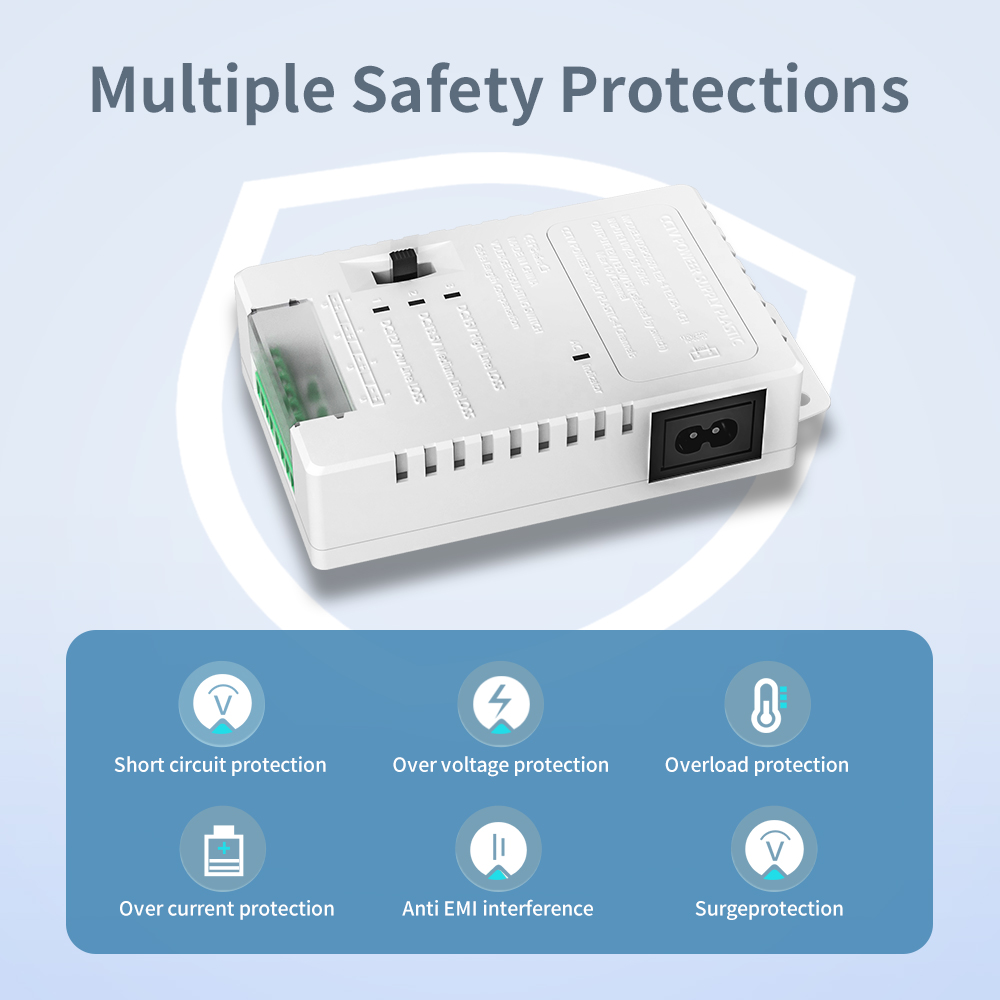

Safety Features: It is CE RoHs certified. Equipped with automatic protection mechanisms against overload, overvoltage, overcurrent, overheating, and short circuits.
Fireproof and Ventilated Shell: The housing is made of fireproof and high-temperature resistant materials. In addition, it has large area opening design around it for better heat dissipation.

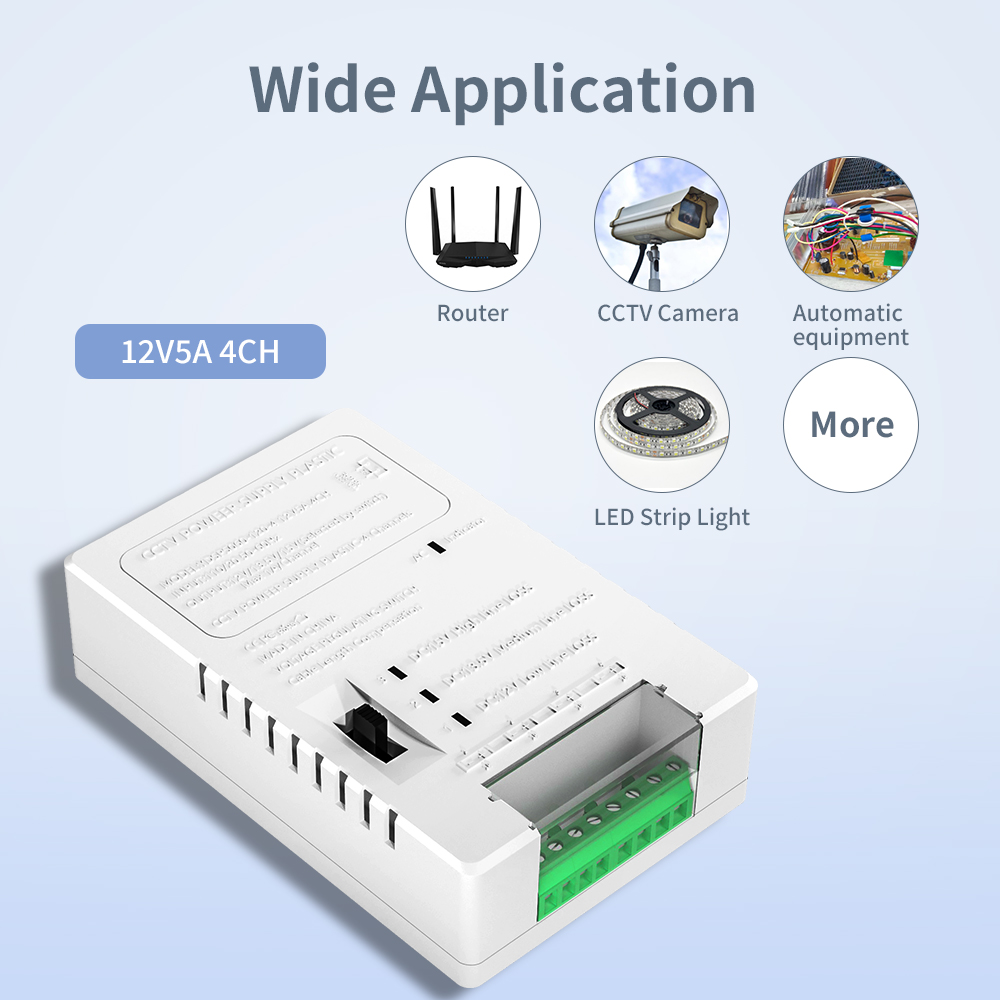

Wide application: widely used for CCTV Camera, LED light,3D printer and other electrical equipment.

2V to 15V 5A 4CH Power Supply for CCTV Cameras and LED Strips

12V to 15V 5A 4CH Power Supply for CCTV Cameras and LED Strips

Safety is our top priority. This power supply is equipped with over-voltage, over-current, and short-circuit protection, safeguarding your valuable devices from potential damage. Its efficient design also minimizes energy loss, reducing your electricity costs over time.

Whether you're setting up a new security system, upgrading your existing one, or creating a stunning LED lighting display, our 16-channel power supply has you covered. Trust in the quality and performance of SHENZHEN YIDASHUN TECHNOLOGY CO.,LTD, a leader in power supply solutions, to keep your devices powered and your mind at ease.

Safety is our top priority. This power supply is equipped with over-voltage, over-current, and short-circuit protection, safeguarding your valuable devices from potential damage. Its efficient design also minimizes energy loss, reducing your electricity costs over time.

Whether you're setting up a new security system, upgrading your existing one, or creating a stunning LED lighting display, our 16-channel power supply has you covered. Trust in the quality and performance of SHENZHEN YIDASHUN TECHNOLOGY CO.,LTD, a leader in power supply solutions, to keep your devices powered and your mind at ease.
