    New Type Plastic 12V to 15V 10A 8CH Power Supply for CCTV Cameras and LED Strips

    Model NO :
    YDSPS120-120-8
    Delivery :
    EXW, FOB
    minimum order :
    100 pieces
    Supply Ability :
    100000pieces / Month
    Stock Time :
    20Day
    Country of Origin :
    china
    new plastic 12V to 15V 10A 16CH Power Supply, a robust power solution tailored for CCTV cameras and LED strips. Boasting 8 channels, it can power multiple devices simultaneously, eliminating the hassle of multiple adapters. Its efficient conversion technology ensures stable 15V output, guaranteeing consistent performance for your security systems and lighting setups. The durable plastic casing offers excellent insulation and protection against daily wear. Compact and easy to install, it's the ideal choice for both residential and commercial applications, providing reliable power round the clock.
    5 simultaneous DC ports
    Fast charging with safety protection
    Compact, portable design
    Includes DC cables
    Quantity :
    US $5.25 - US $5.99 / pieces
    add to cart
    Contact Now

    New Type Plastic 12V to 15V 10A 8CH Power Supply for CCTV Cameras and LED Strips

    Model No.

    YDSPS120-120-8

    Input

    Voltage

    AC 100-240V Worldwide

    Vibration Input Voltage Range

    AC 95-265V

    Frequency

    50-60Hz

    Output

    Voltage

    DC12V / 13.5V / 15V Switchable

    Current

    10A

    MaxPower

    120W

    Max current per channel

    1 Amp, 8 output channels in total.

    Typical Efficiency

    85%

    Adjustable Range of Voltage

    DC 12V / 13.5V / 15V

    Max. Ripple & Noise

    250mV

    Protection

    Over Load

    105-115% of Rated Output Power

    Short Circuit

    Protection Type: Auto Recovery

    Electric Strength

    High-pot test

    3KV AC

    Environment

    Working temperature and humidity

    -10°C~+60°C,20~90%RH

    Store temperature and humidity

    20°C~+85°C,10~95%RH

    MTBF

    >200K hrs.@25°C(MIL-HDBK-217F)

    Warranty

    1year

    Feature

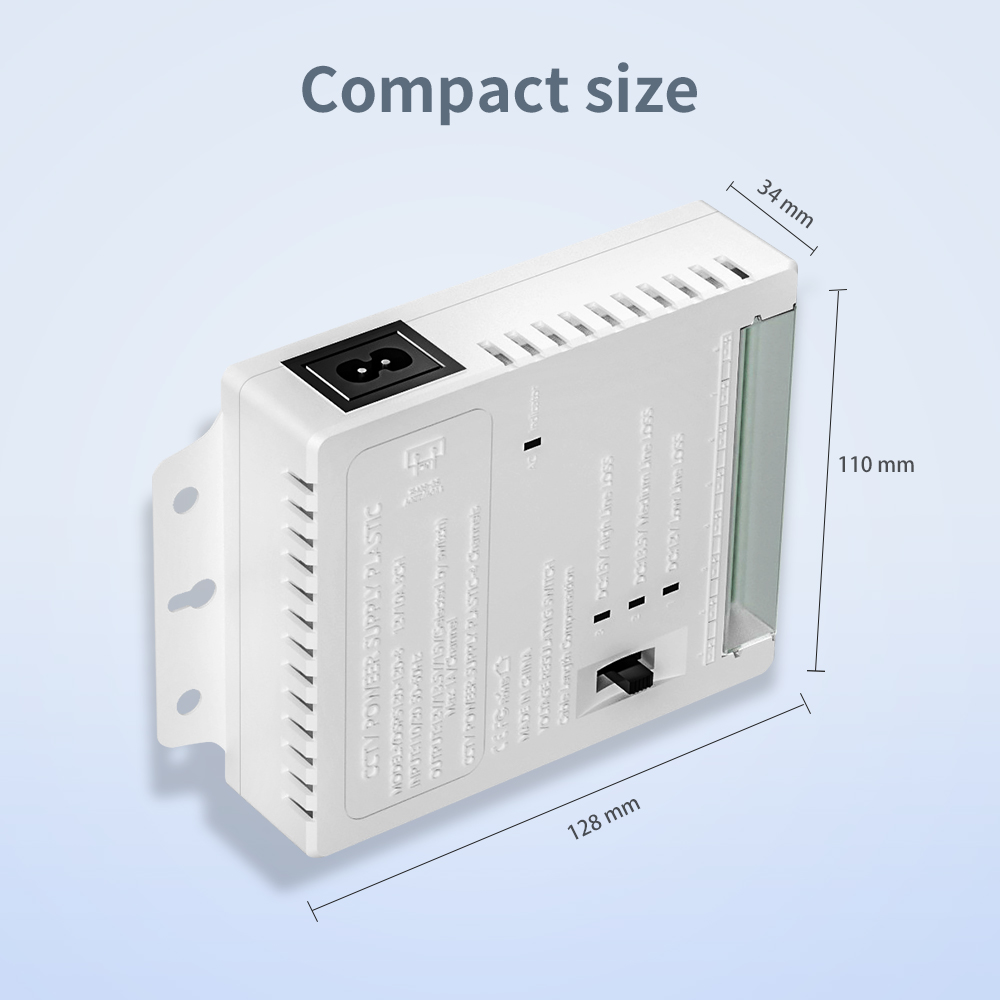

    Dimension(L*W*H)

    128*110*34 mm

    Weight

    281g (only power supply weight)

    PCS/CTN

    50PCS/CTN

    CTN size

    63.5*30.6*20 cm

    GW/CTN

    18 kg

    Safety & EMC

    Safety Standards

    CE RoHs

    Product features:

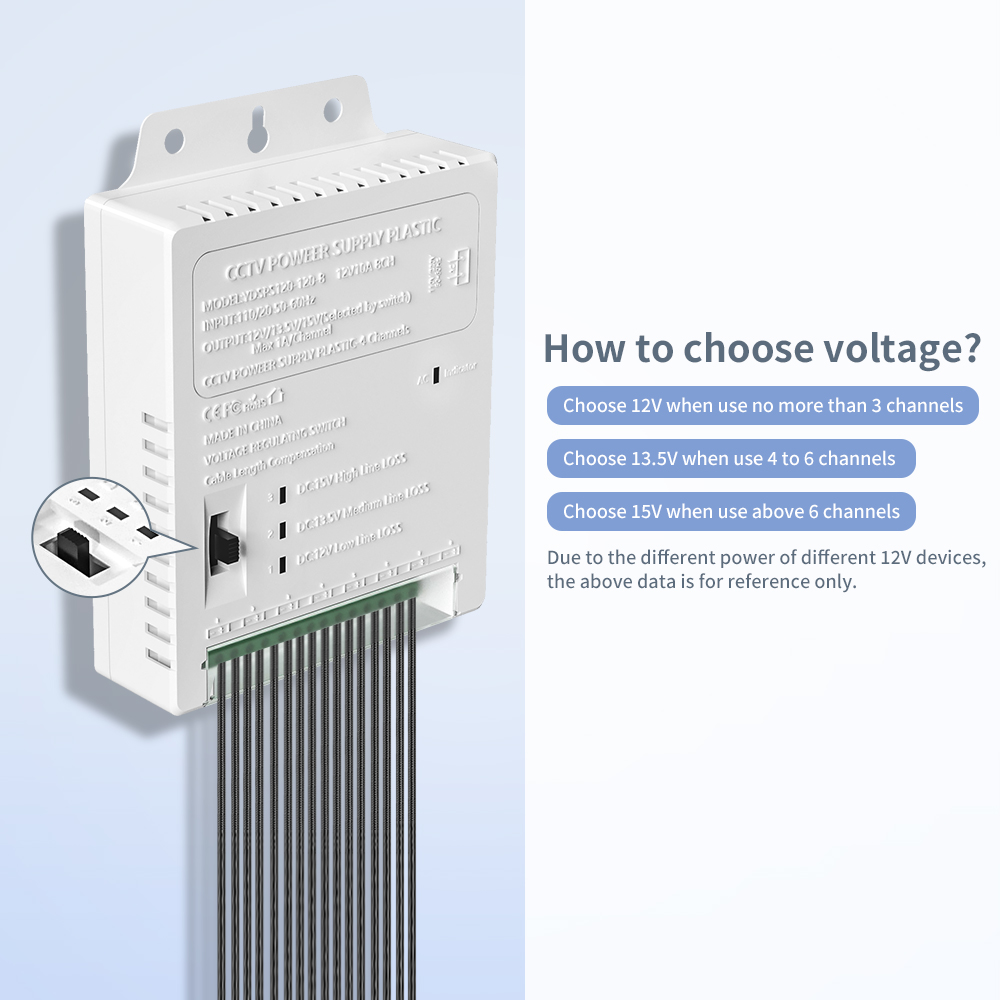

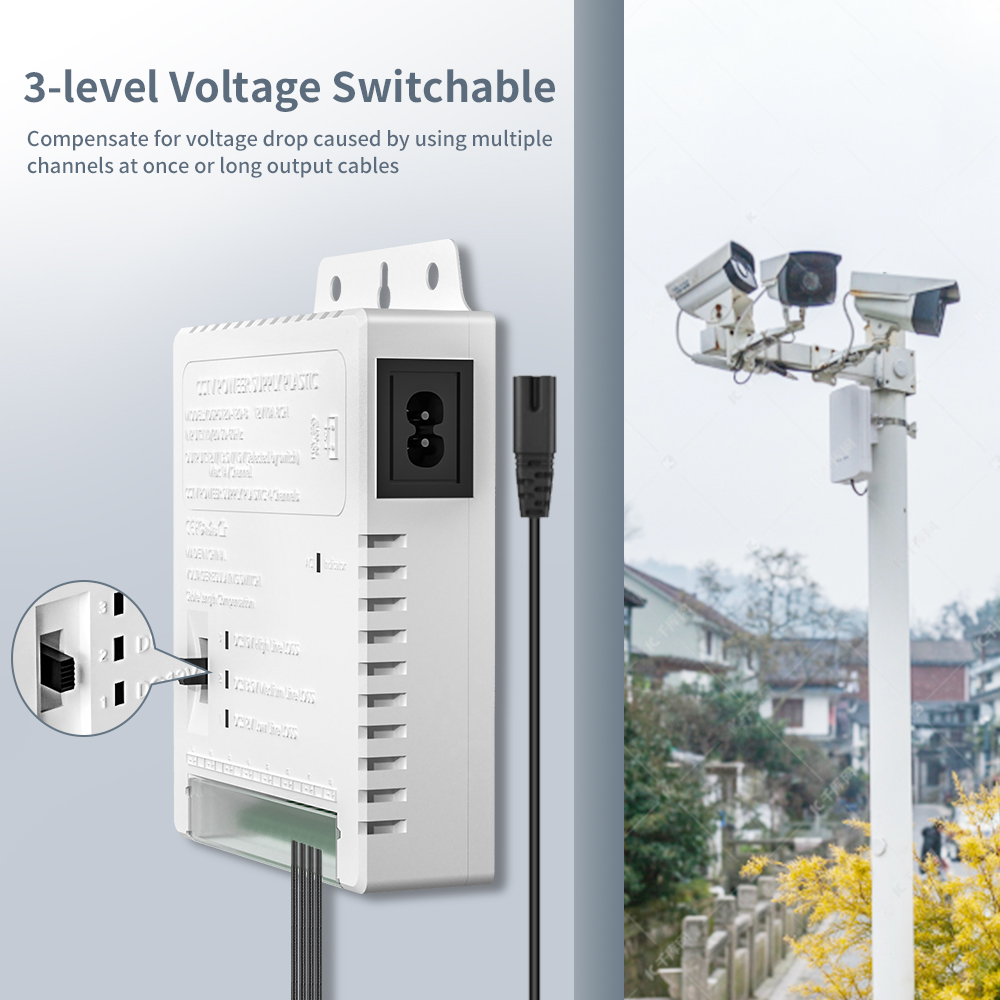

    • This is New-type 12V 10A CCTV/LED Power Supply: It has a 3-level adjustable voltage feature to fix voltage drop issues. When you use multiple channels at once or long output cables and it causes a voltage drop, just adjust the voltage. That'll give enough power to keep the camera working steadily.

    Input: 100-240V AC; Output voltage: DC 12V 13.5V 15V adjustable; Max output power: 120W; Max current per channel: 1 Amp; 16 sets of output channels in total, with LED

    Safety is our top priority. This power supply is equipped with over-voltage, over-current, and short-circuit protection, safeguarding your valuable devices from potential damage. Its efficient design also minimizes energy loss, reducing your electricity costs over time.

    Whether you're setting up a new security system, upgrading your existing one, or creating a stunning LED lighting display, our 16-channel power supply has you covered. Trust in the quality and performance of SHENZHEN YIDASHUN TECHNOLOGY CO.,LTD, a leader in power supply solutions, to keep your devices powered and your mind at ease.

    • Indicator for Each Channel.

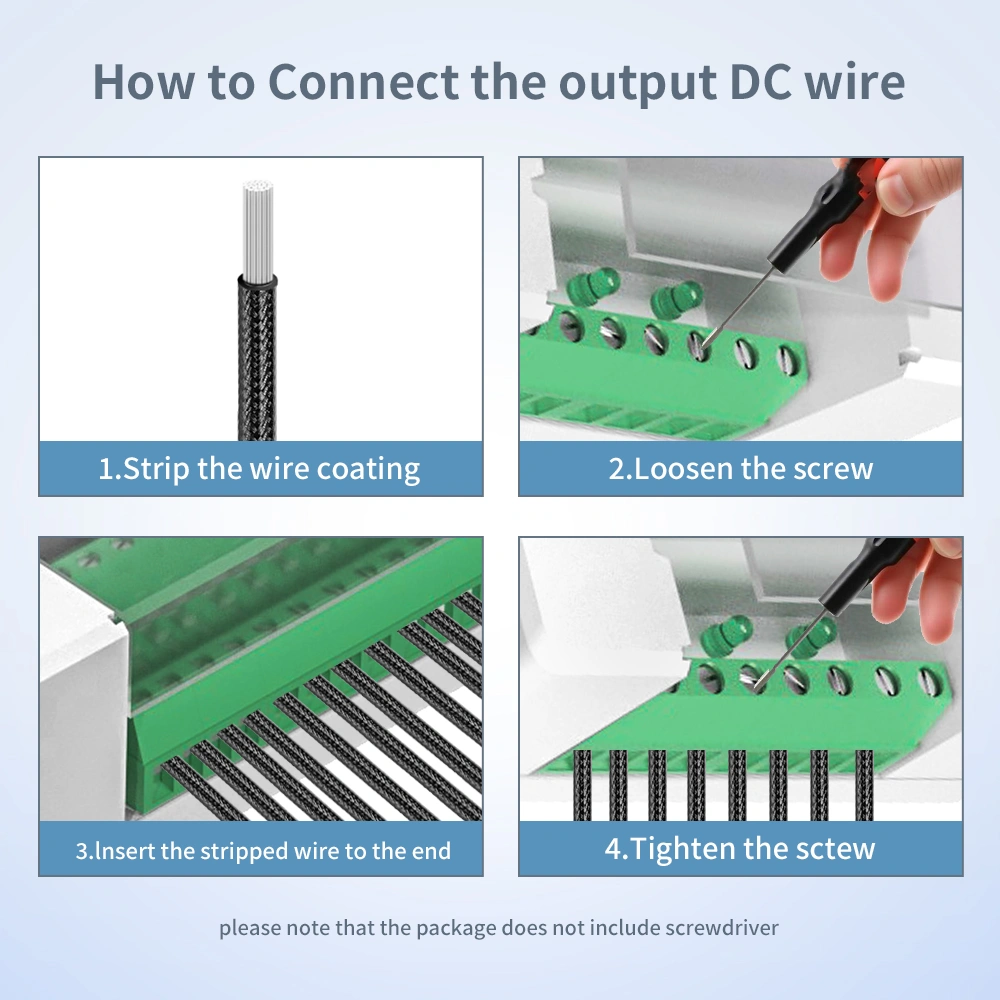

    • Easy to Use: The AC input end adopts a quick direct plug-in method. The output end uses a screw wiring method. There are hanging holes on the top, making it convenient to install on the wall.
    • Long-lasting Performance：With an independent PTC fuse and LED indicator for each output.

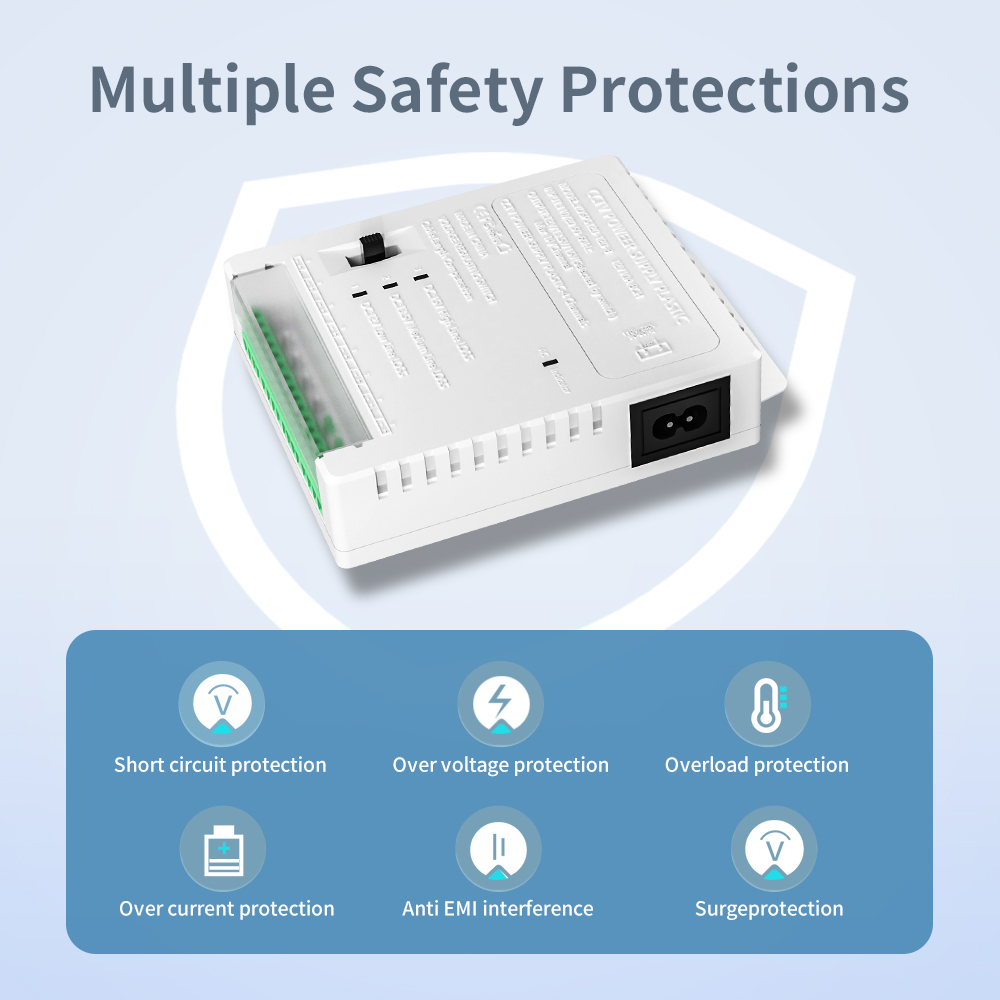

    • Safety Features: It is CE RoHs certified. Equipped with automatic protection mechanisms against overload, overvoltage, overcurrent, overheating, and short circuits.

    • Fireproof and Ventilated Shell: The housing is made of fireproof and high-temperature resistant materials. In addition, it has large area opening design around it for better heat dissipation.

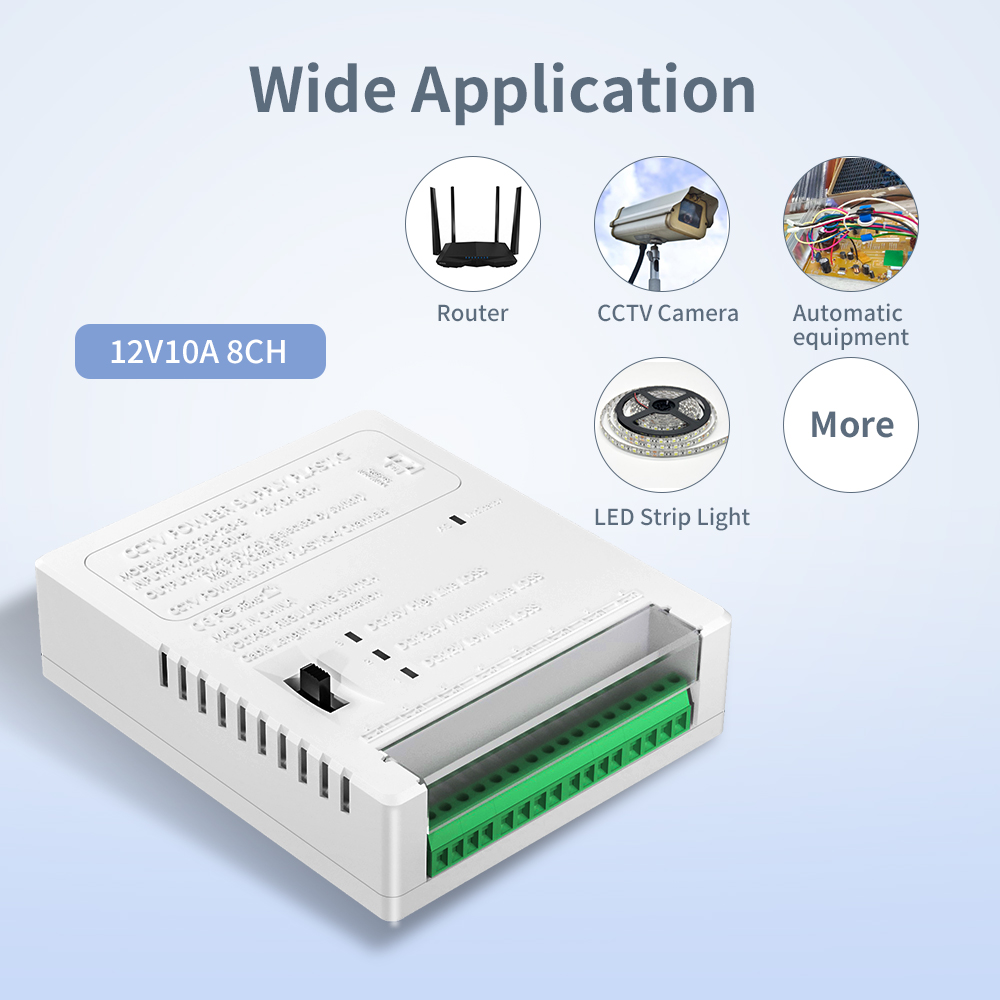

    • Wide application: widely used for CCTV Camera, LED light,3D printer and other electrical equipment.
