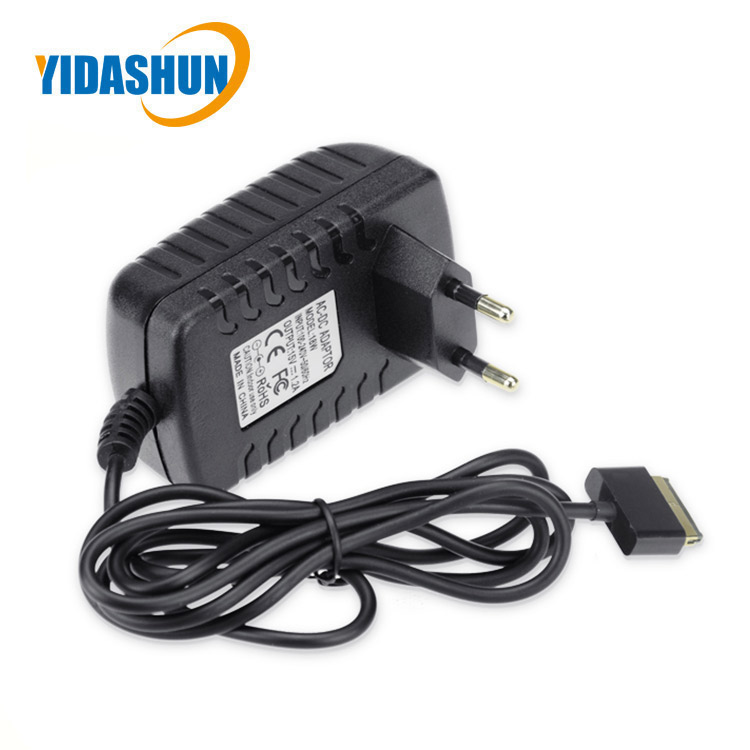

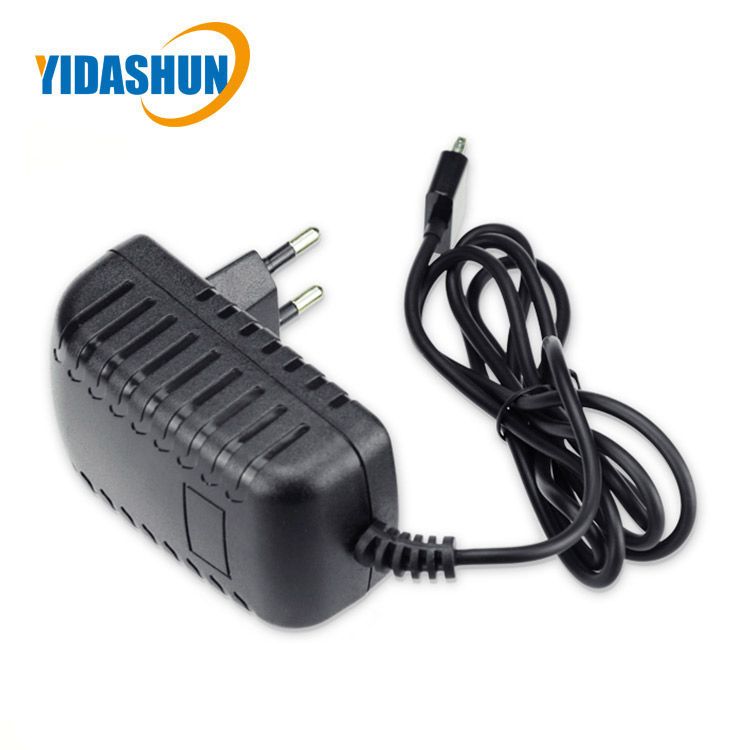

    15V 1.2A 18W 40PIN USB tablet charger for Asus Eee Pad TF101 TF201 TF300 TF301

    Model NO :
    YDS18
    minimum order :
    1 piece
    Country of Origin :
    Shenzhen
    Type:Power Supply Adapter
    Brand Name:YDS
    Model Number:YDS18
    Use:LAPTOP
    Output Type:DC
    Connection:Plug In
    Color:Black
    Condition:100% OEM Compatible
    Protection:Short Circuit Protection, OLP, ocp, ovp, OTP, OCP, OLP, OTP, SCP
    Material:ABS
    Place of Origin:Guangdong, China
    Product Name:15V 1.2A tablet charger
    Input Voltage Range:100-240V AC
    Quantity :
    $2.50 - $3.50 / piece
    add to cart
    Contact Now
    • Type:Power Supply Adapter
    • Brand Name:YDS
    • Model Number:YDS18
    • Use:LAPTOP
    • Output Type:DC
    • Connection:Plug In
    • Color:Black
    • Condition:100% OEM Compatible
    • Protection:Short Circuit Protection, OLP, ocp, ovp, OTP, OCP, OLP, OTP, SCP
    • Material:ABS
    • Place of Origin:Guangdong, China
    • Product Name:15V 1.2A tablet charger
    • Input Voltage Range:100-240V AC
    • Input Frequency:50/60Hz
    • Output:12v 1.5a
    • output power:18W
    • DC Connector Size:special usb 40pin
    • Efficiency:>85%
    • Certification:CE, ROHS, FCC, ce
    • Warranty:1 year

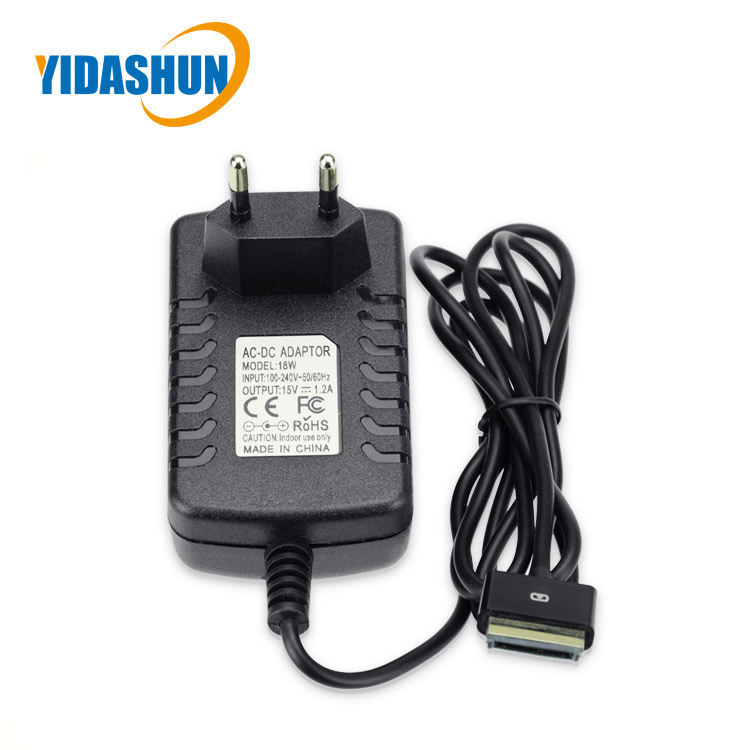

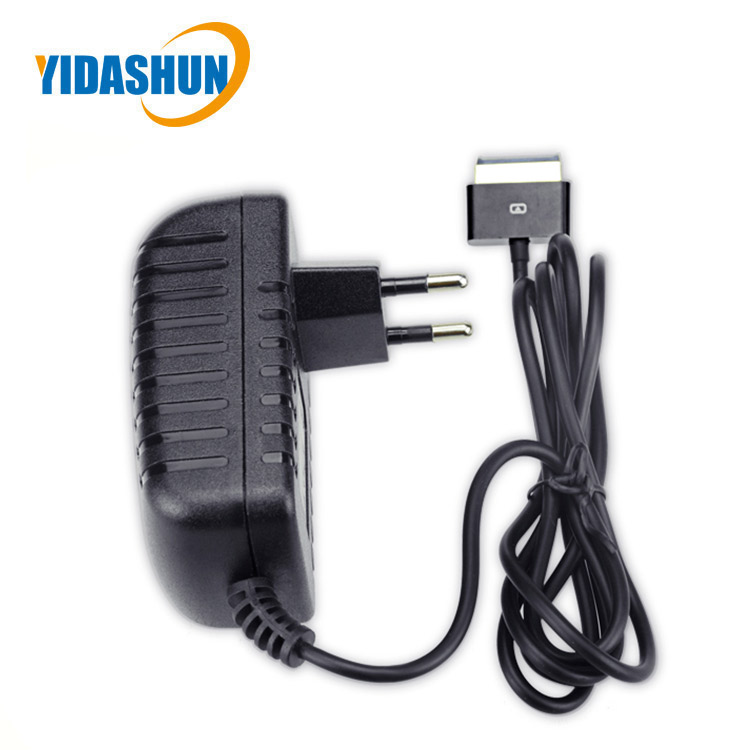

    15V 1.2A 18W 40PIN USB tablet charger for Asus Eee Pad TF101 TF201 TF300 TF301
    Product Description

    >> Compatible tablet models:

    TF101, Prime TF201, SL101, Pad 300 TF300, TF700

    >> Products specifications

    Specifications

    Model No.

    YDS18

    AC Input

    Nominal Input Voltage

    AC 100V~240V

    Input Voltage Range

    AC 95V~265V

    Input Frequency

    50/60Hz

    DC Output

    Output Voltage

    15V

    Output Current

    1.2A

    Output Power

    18W

    DC Connector Size

    		Special usb

    Line Regulation

    2%

    Load Regulation

    5%

    Ripple Noise

    180 Mvp-p

    Efficiency

    >85%

    Output Cable Standard

    0.3mm2 Pure Copper

    Output Cable Length

    1.2m normally or customized requirement

    Environment

    Operating Temperature

    0°C ~40°C

    Operating Humidity

    5%~95%RH

    Storage Temperature

    -20°C ~85°C

    Storage Humidity

    5%~95%RH

    Protection

    Over Load Protection

    Short Circuit Protection

    Over Current Protection

    Over Temperature Protection

    Certificates

    CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE

    Dimensions

    Adapter Size

    10.7*4.3*2.8cm

    Adapter Weight

    150G

    Inner Box Size

    19*13*4.7CM

    Inner Box Weight

    40G

    PCS/CTN

    50PCS

    Outer Carton Size

    48.5*32*40CM

    Outer Carton Weight

    860G

    GW/CTN

    12kG

    Package

    Inner Box

    Normally neutral brown box or customized requirement

    Outer Carton

    Normally neutral standard carton or customized requirement

    Warranty

    Guarantee

    30 days

    Warranty

    2 years

    Terms and Conditions

    MOQ

    100PCS for mixed order

    Payment Terms

    T/T, L/C, PayPal, western union

    Delivery Time

    3-5 days

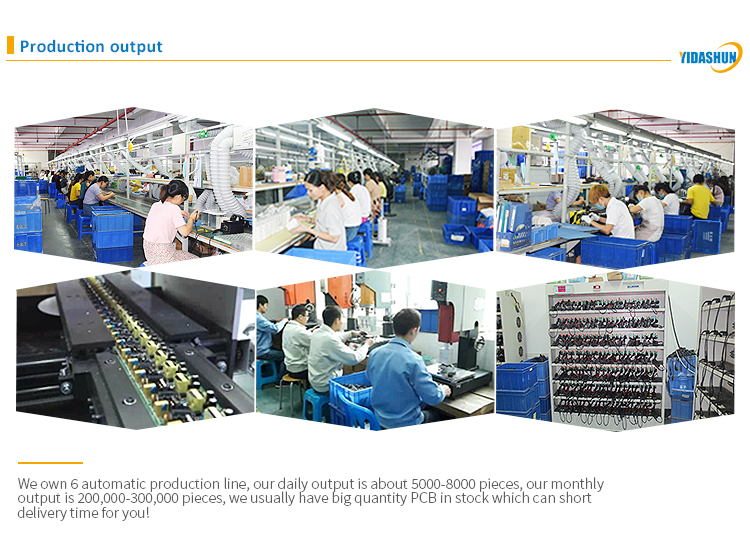

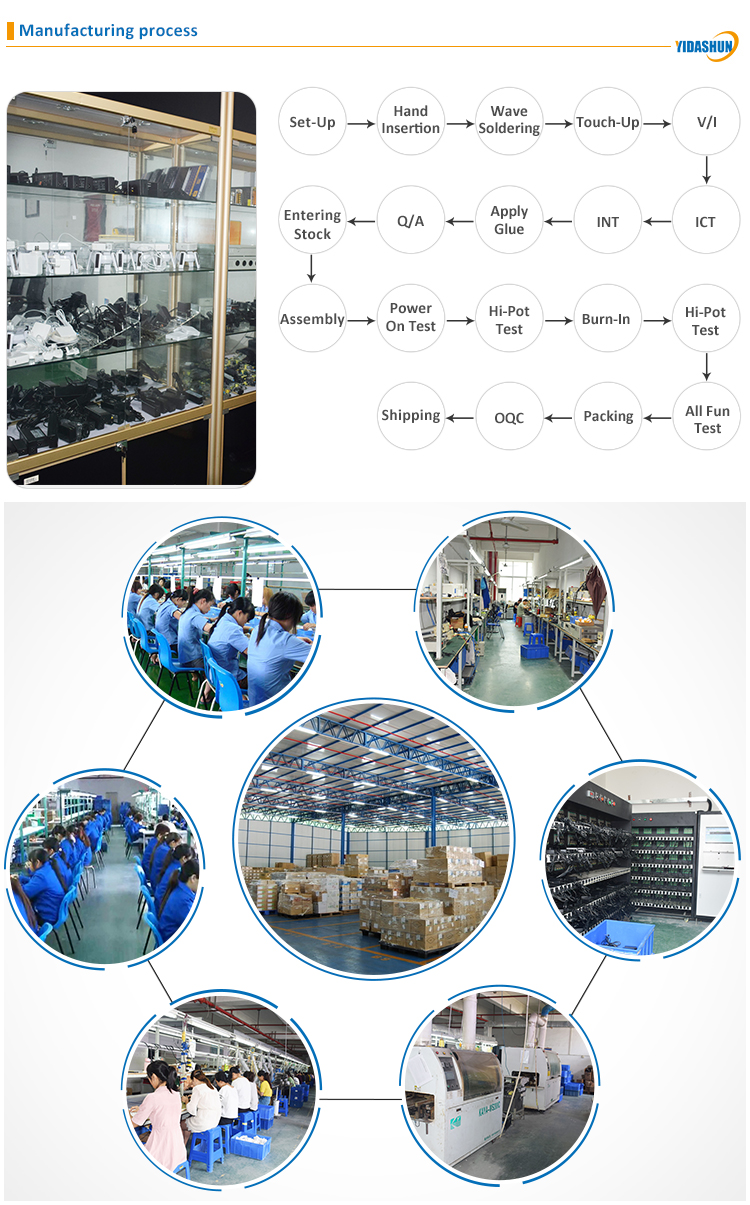

    Manufacturing Process

    1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping

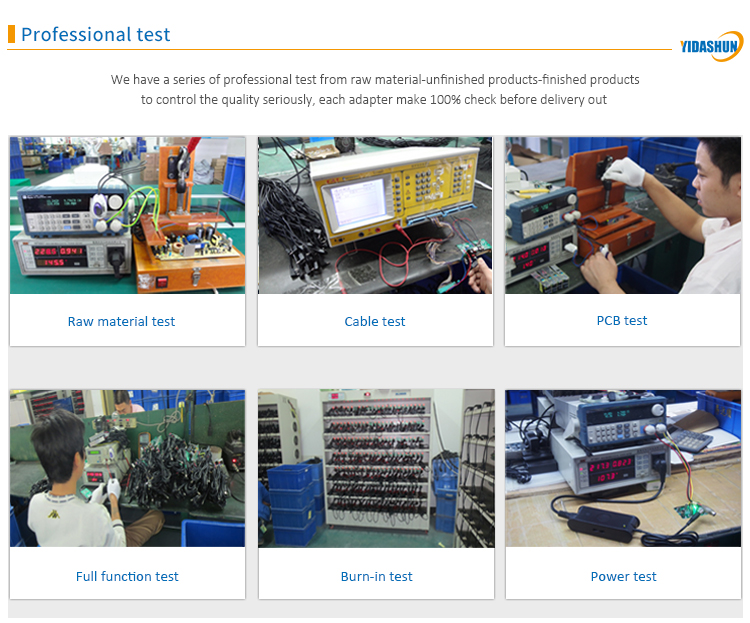

    Test Procedures

    1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

    Packaging & Shipping

    Packing details:

    1. Regular package: each one with white box,then 100pcs in one carton.

    2. Individual package: inner box inside,100pcs/carton.

    3. Customized package is accepted.
    Delivery time: 1-3 days for samples,3-15 days for batch order.

    Shipping: by Sea / by Air / by Express (Customers specifying freight forwarders and negotiable shipping methods. )

    INTERNATIONAL AIR MAIL

    Payment:

    Fast Delivery:

    Different qty order will be required for different days .

    Company Information

    Certifications

    FAQ

    1. Q: Do you offer samples for testing?

    A : Yes , we can offer samples for testing with cost paid by buyer , then We will return sample fee at your next bulk order .

    2 . Q : Are you trading company or factory ?

    A: We are 10 years professional manufacturer of switch power supply , led driver .

    3 . Q : How long is your warranty ?

    A : We usually have 1 year warranty and 30 days guarantee .

    4 . Q : Do you have CE certificate ?

    A : Yes , of course we have , besides we also have ROHS , FCC ERP CB certificate .

    5 . Q : Can you customize new items according to customer's require ?

    A : Yes , of course we can , but the MOQ is 5000pcs .

    6.Q : How is the delivery terms ?

    A:We have fast and flexible deliver terms , bulk orders(above 5,000pcs ) usually delivery within 5 days by air / by sea , General small batch orders can be arranged delivery within 1-3 days by DHL ,FEDEX , EMS , UPS .

    7. Q : Do you have burn-in test ?

    A : All of our products will have 100% burn-in test for 3-4 hours .
