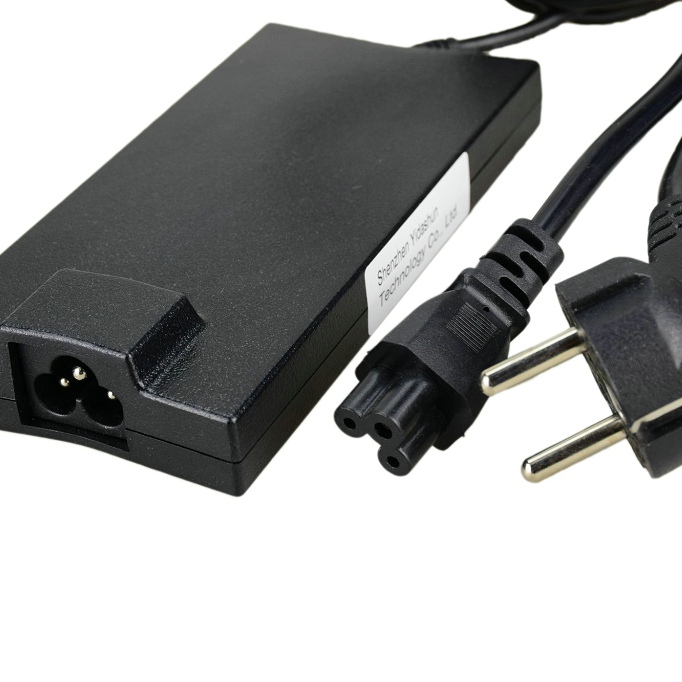

90W Manual universal charger laptop/notebook ac power adapter wireless battery charger
Brand Name:OEM
Model Number:YUA902
Use:LAPTOP
Output Type:DC
Connection:Laptop
Place of Origin:Guangdong, China
Product Name:90w Universal Laptop Adapter
Input Voltage Range:100-240V AC
Input Frequency:50/60Hz
Output Voltage:DC 15V/16V/18.5V/19V/19.5V
Output Power:90W
- Type: Universal Laptop Adapter
- Brand Name:OEM
- Model Number:YUA902
- Use:LAPTOP
- Output Type:DC
- Connection:Laptop
- Place of Origin:Guangdong, China
- Product Name:90w Universal Laptop Adapter
- Input Voltage Range:100-240V AC
- Input Frequency:50/60Hz
- Output Voltage:DC 15V/16V/18.5V/19V/19.5V
- Output Power:90W
- DC Connector Size:3 pin(with 8 standard dc tips)
- Efficiency:>85%
- Certification:CE, ROHS, FCC
- warranty:1 year
- Output Current:4.5A~6A
Products features:
>> This 90W adapter is Manual universal laptop adapter, Worldwide use input 100-240V, Maximum Output Voltage 19.5V , Power 90W, it is full power when used at 220V or 110V;
>> Automatic Voltage Adjustment: The output voltage would be changed automatically when different DC tips put on it, the aumatic voltage range is dc 15V/16V/18.5V/19V/19.5V ,4.5A~6A
>>8 Standard DC Tips selective for most brand of laptops: 15V/M1 6.3*3.0 mm / 16V/M2 5.5*2.5 mm / 16V/M3 6.5*4.4 mm / 18.5V/M4 4.8*1.7 mm / 19V/M5 5.5*2.5 mm / 19V/ M6 5.0*3.0 mm / 19V/ M7 5.5*2.1 mm / 19.5V/M8 6.5*4.4 m
>> Reliability and Safety: Each laptop charger with OVP/OCP/OLP/SP/OTP etc. multiple security protection/ Premium manufacture mateiral and strict aging test/ Products are CE/RoHS certified.
>>Each tip has a number and voltage printed on it. You can check the size and compatible models before use, it is ideal for use on the road, at home, in the office
Products specifications:
Manual Universal Laptop Adapter 90W | |
Model No. | YUA902 |
AC Input | |
Nominal Input Voltage | AC 100V~240V |
Input Voltage Range | AC 95V~265V |
Input Frequency | 50/60Hz |
DC Output | |
Output Voltage | |
Output Current | 4.5A-4.7A |
Output Power | 90W |
DC Connector Size | 3 pin ( with 8 standard dc tips) |
15V/M1 6.3*3.0 mm / 16V/M2 5.5*2.5 mm / 16V/M3 6.5*4.4 mm / 18.5V/M4 4.8*1.7 mm / 19V/M5 5.5*2.5 mm / 19V/ M6 5.0*3.0 mm / 19V/ M7 5.5*2.1 mm / 19.5V/M8 6.5*4.4 mm | |
Line Regulation | 1% |
Load Regulation | 1% |
Ripple Noise | 180 Mvp-p |
Efficiency | >85% |
Output Cable Standard | 0.75mm2 Pure Copper |
Output Cable Length | 1.5m normally or customized requirement |
Advantages | |
1. The output voltage would be changed automatically when different tips on it | |
2. It is better and easier for end clients to use it | |
Environment | |
Operating Temperature | 0°C ~40°C |
Operating Humidity | 5%~95%RH |
Storage Temperature | -20°C ~85°C |
Storage Humidity | 5%~95%RH |
Protection | |
Over Load Protection | Short Circuit Protection |
Over Current Protection | Over Temperature Protection |
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE | |
Adapter Size | 13.2*5.8*3.0cm |
Adapter Weight | 350g |
Color Box Size | 26*16*53 cm |
Color Box Weight | 80G |
PCS/CTN | 20PCS or 40PCS |
Outer Carton Size | 42*27*32.5CM or 53*32.5*42CM |
Outer Carton Weight | 600G or 800G |
GW/CTN | 8900G or 17400G |
Package | |
Inner Box | Normally neutral color box or customized requirement |
Outer Carton | Normally neutral standard carton or customized requirement |
Guarantee | 30 days |
Warranty | 2 years |
Terms and Conditions | |
MOQ | 100PCS for mixed order |
Payment Terms | T/T, L/C, PayPal, western union |
Delivery Time | 3-5 days |

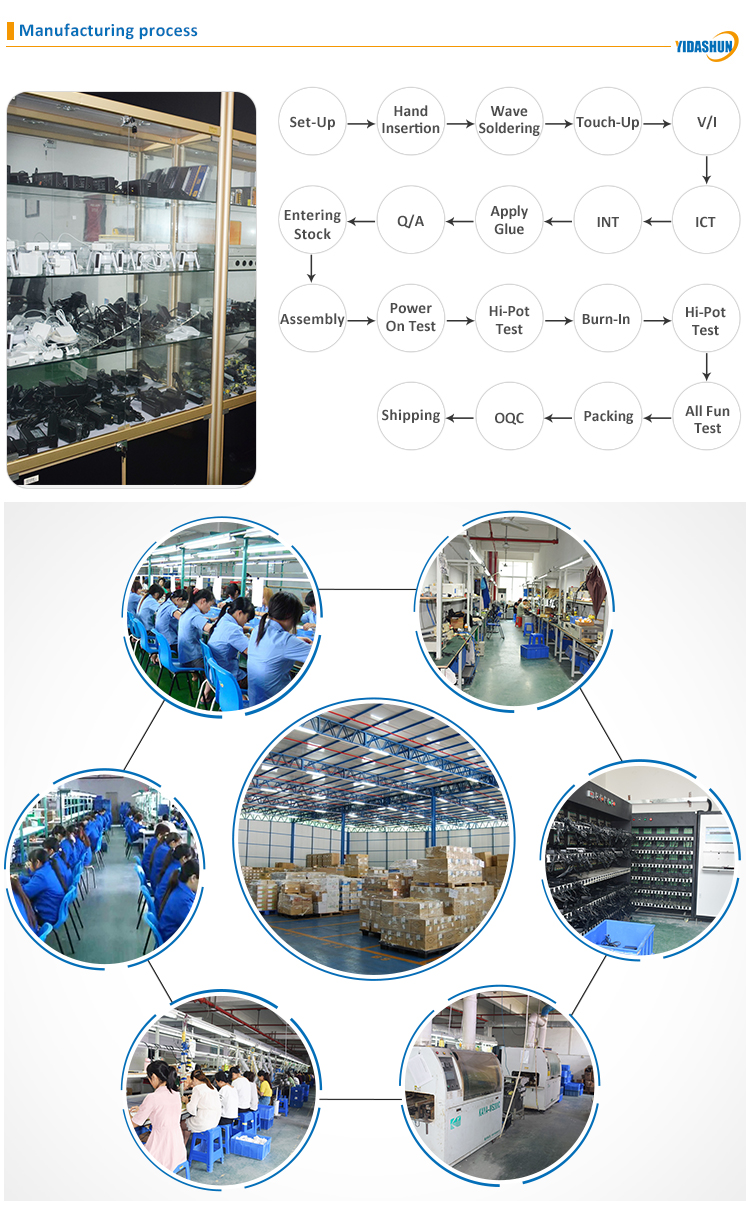

1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping | |
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test | |

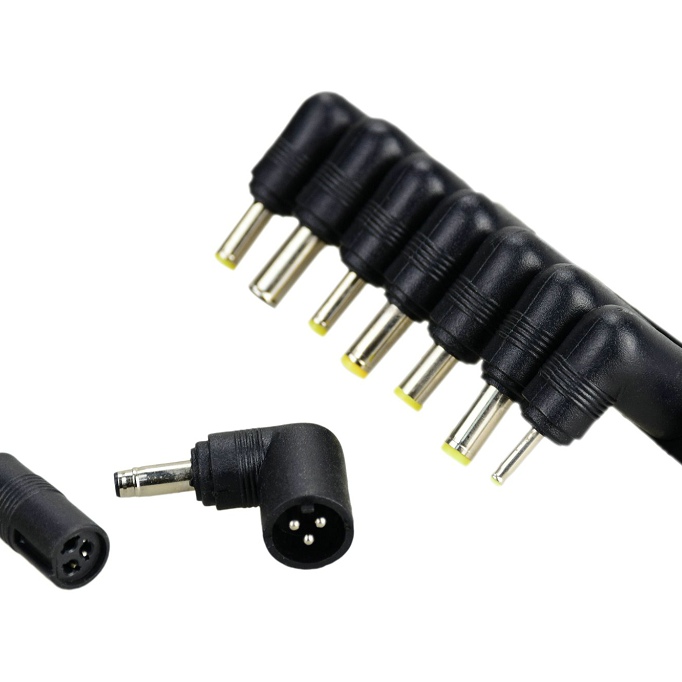

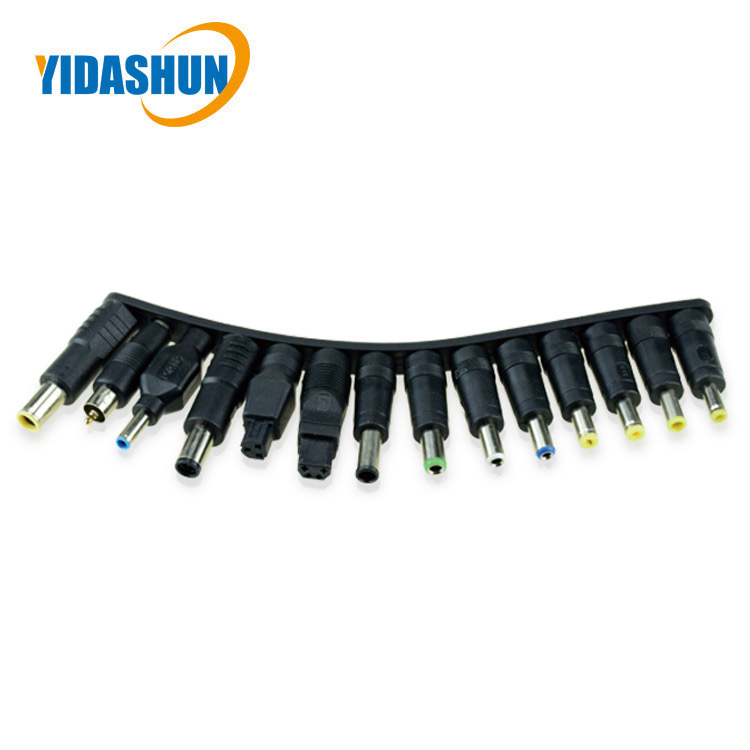

DC tips size and compatible laptop models

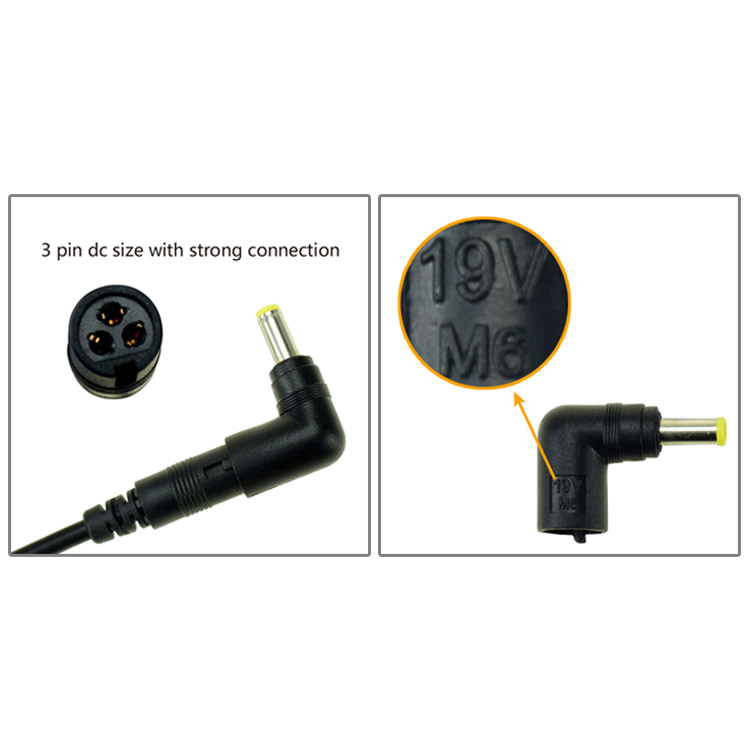

This adapter with 3 pin dc size,8 dc connectors,Each dc connector have a number and voltage print on it, you can check the size and compatible models before use. This dc connectors can be used for most brand of laptops, if you need more dc tips, we also can add more as your requests.
M1: 15V, 3A ,4A ,5A ,6A;DC size: 6.3*3.0mm for TOSHIBA compatible models
M2:16V, 3.36A 3.5A ,4.5A,5.6A; DC size 5.5*2.5mm for IBM/Lenovo compatible models
M3: 16V, 3.36A, 3.5A, 3.75A ;DC size 6.5*4.4mm for SONY,FUJITSU compatible models
M4: 18.5V, 3.5A, 4.9A;DC size: 4.8*1.7mm.For HP compatible models
M5:19V, 2.37A, 3.42A, 4.74A;DC size: 5.5*2.5mm. For Toshiba Asus ACER Compatible modes
M6:19V, 3.15A,3.16A, 4.74A; DC size: 5.0*3.0mm with pin. For Samsung Compatible models
M7:19V 3.42A,4.74A;DC size 5.5*2.1mm, for ACER compatible models
M8:19.5V 2A,2.15A,3.9A,4.1A,4.7A; DC size 6.5*4.4mm for SONY Compatible models
>> Package information:

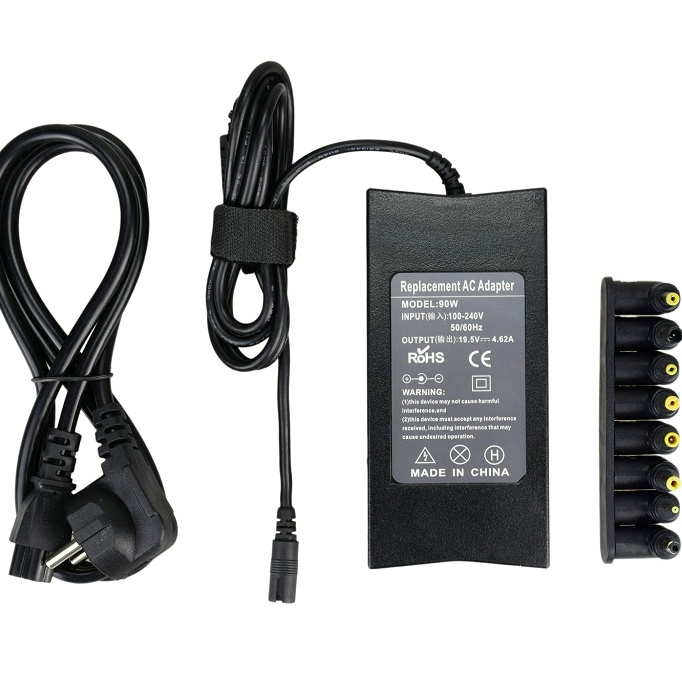

♦ Safe packing: Each adapter+dc tips+ac power cord into blister,then into color box as below pic, each adapter we sell you with AC power cord, 8 dc tips
♦ Adapter Weight: 350G
♦ color box size: 26*16*53 cm
♦color box weight: 80G
♦PCS/CTN: 20PCS or 40pcs
♦ Carton Size: 42*27*32.5CM or 53*32.5*42CM
♦ Gross Weight: 8900G or 17400G
>> Shipping details:
♦FedEx/DHL/UPS/TNTforsamples, Door-to-Door;
♦By Air or by Seaforbatch goods, for FCL; Airport/ Port receiving;
♦Customers specifying freight forwarders or negotiable shipping methods;
♦Delivery Time: 1-3 days for samples; 5-15 days for batch goods.
