52V 0.58A powerline ac dc adapter POE Adapter Injector Power Supply Ethernet Adapter

>>Specifications:

Output:

1)Data speed:10/100M/1000M

2) Rated voltage:52volts direct current

3) Ripple:480mVp-p

4) Rated power:30W

5) Voltage tolerance:±3.0%

6) Setup, rising time:500ms, 50ms at full load

7) Hold up time:>5ms at full load

8)Power out pin:midspan 4,5(+) 7,8(-)

9) Rated current:1.5amperes

10) Current range:0~1.5A

Input:

1) Rated Voltage range:100~240VAC

2) Frequency range:50/60 hertz

3) Leakage current:< 0.25 mA at 250 V

4) Inrush current:< 40 A at 230 V

5) Efficiency:>82% (minimum)

6) AC current:1.1amperes(maximum)

Environment:

1) Working temp:0 ~+40°C

2) Working humidity:20 ~90% RH non-condensing

3) Storage temp & humidity:-20~+85°C, 10~95% RH

4) Vibration:EN 61131-2

Protection:

1) Protection Short circuit:YES
2) Over load protection:YES
3) Over power protection:YES

Weight & Dimension:

1) Certification:CE

2) PCB dimension:121.5*33*58mm

3) Weight:214g

4) Warranty Period:24 months

5) Mounting:Desktop

6) MTBF:50Khrs, Mil-HDBK-217F(25°C)

7) Connection:plug

Application:

routers, switches, wireless APs, network telephones, industrial network terminals or IP cameras,massager,sos telephone,fetal monitor equipment, robot

Safety & EMC:

1) Standards:design refer to EN60950

2) Withstand voltage:I/P-O/P: 1.5KVAC, 5mA, 60S

3) Isolation resistance:I/P-O/P: 100M ohms/500VDC

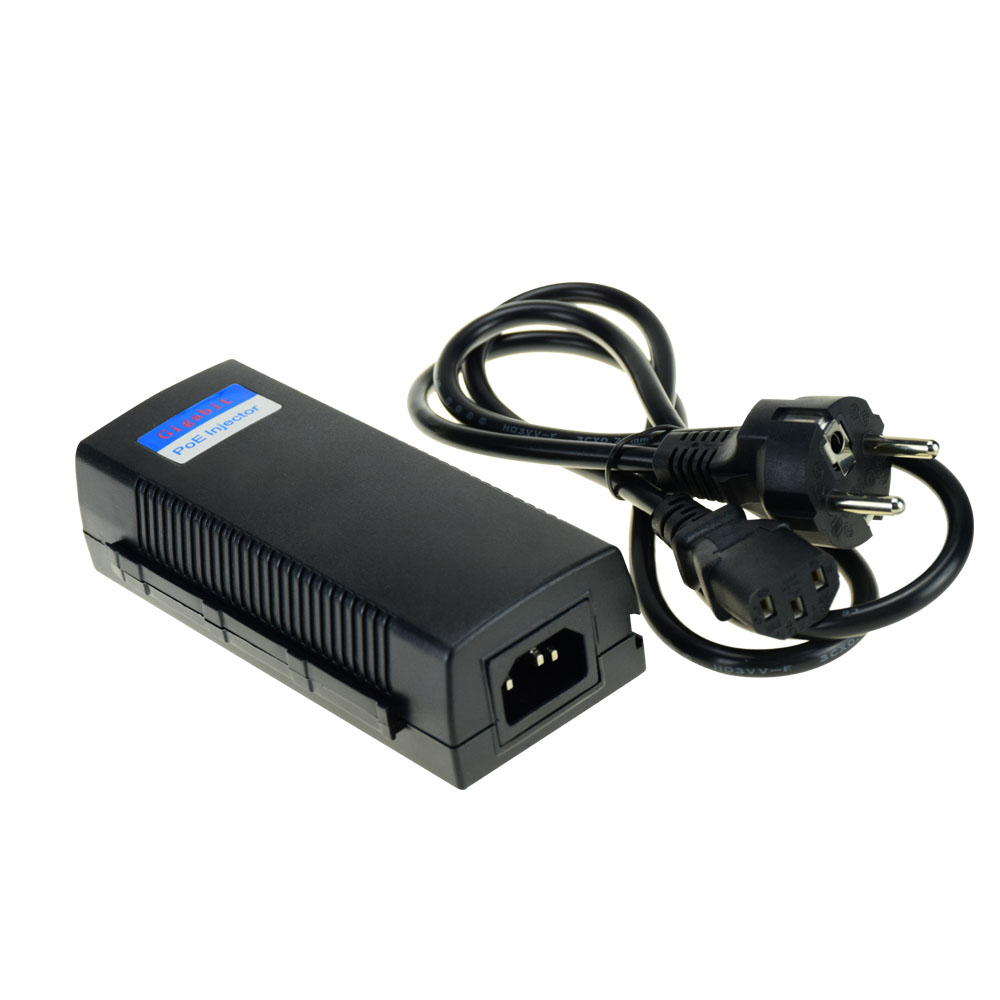

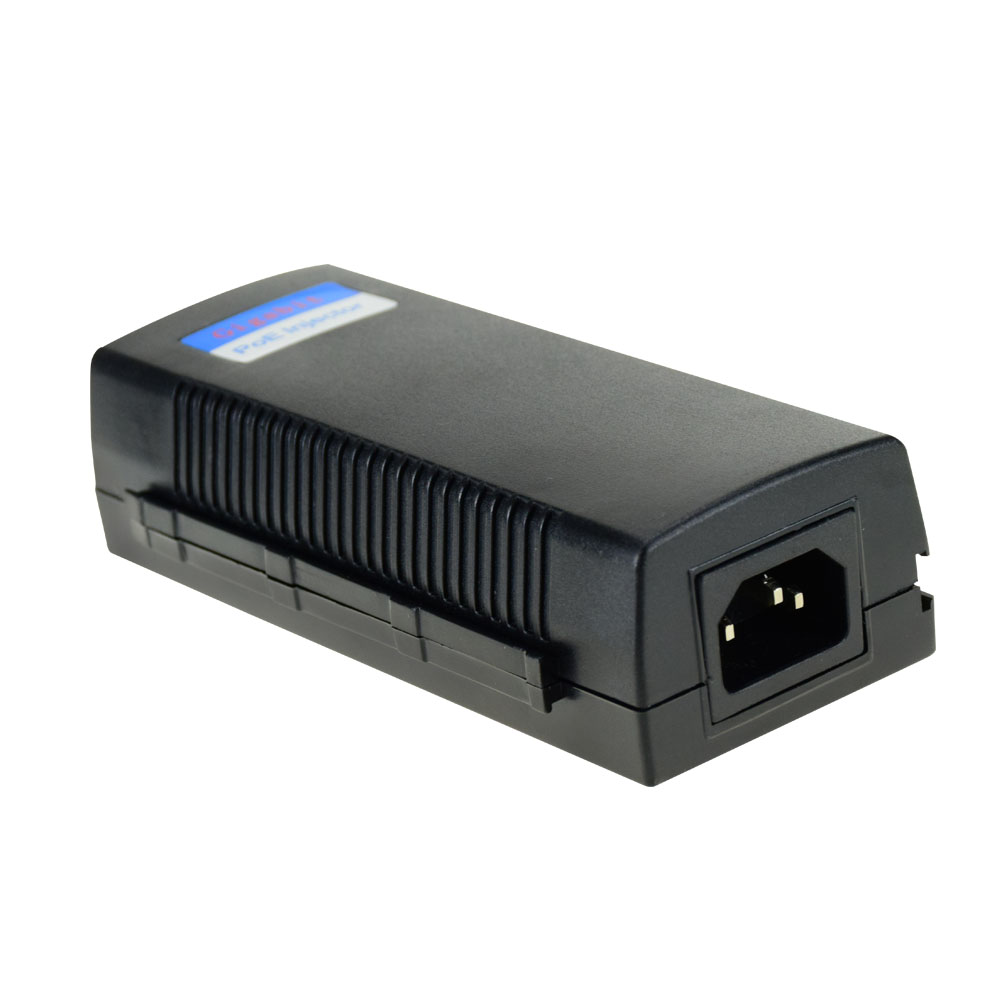

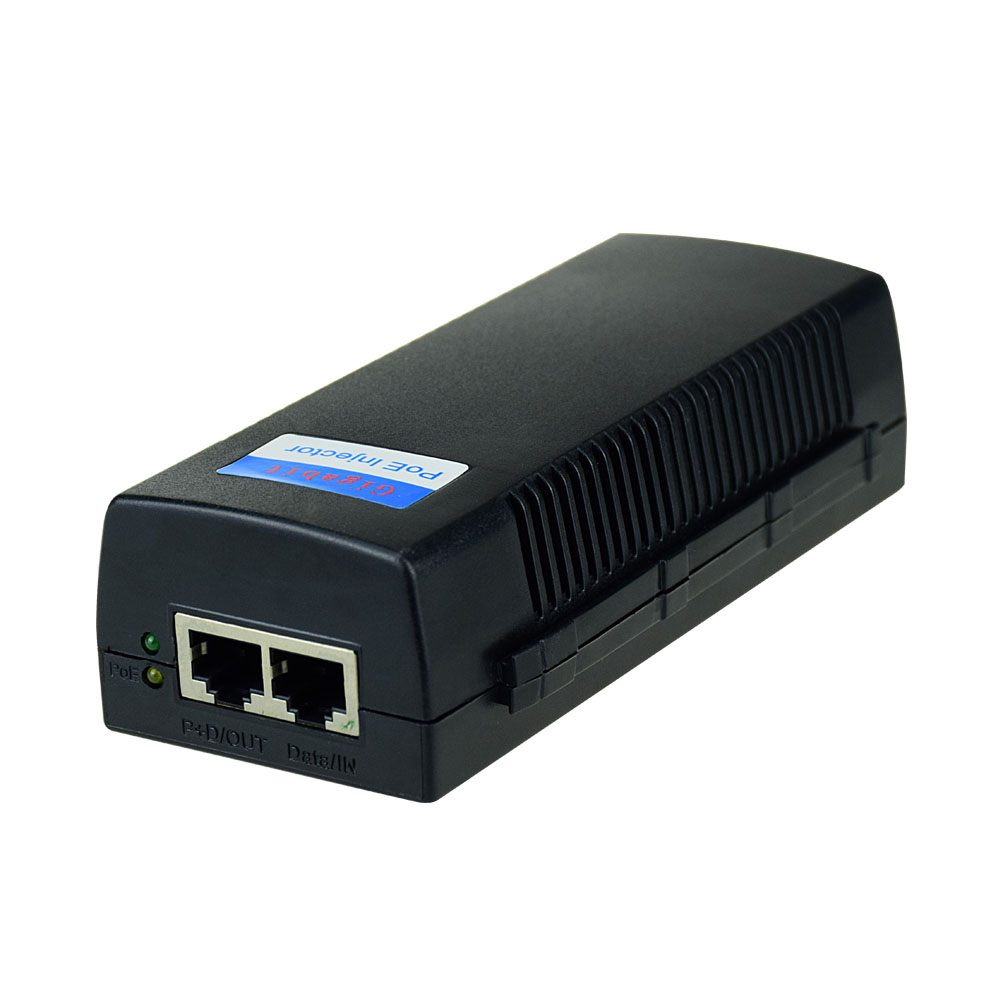

>> Product Photos:

>> Our Adavantage

♣1. Low price and high reliable ;

♣2.AC input power suitable for the world;

♣3.High efficiency and how operation temperature ;

♣4.Soft-start current can reduce the AC input impact effecticly;

♣5.With short-circuit and overload protection;

♣6.Compact size, light weight ;

♣7. Each product will have 100% full-load buming test for 2-3 hours ;

♣8.Installed with EMI filter, minmum wave;

♣9.Large quantity pcb board in stock , can deliver goods in short time , after we confirm the order .

>>Packing Photos

>> Shipping detail

>> About Us:

♦Shenzhen Yidashun Technology Co., Ltd is a professional 10 years manufacturer dedicated to the R&D , manufacture and sales of laptop adapter , wall mount adapter , universal laptop adapter ,desktop adapter, AC DC adapter, usb wall socket, switch power supply for led/ cctv/camera , USB wall socket,car charger,quick usb charger and so on .

♦100% burn-in test before deliver for 2-3 hours ,and the defective Rate is 0.3%-0.5% .

♦All our high quality metal case power supply with over load , short circuit protection ;

♦Flexible and fast delivery, we can customize and develop new items according to customer's require !!!

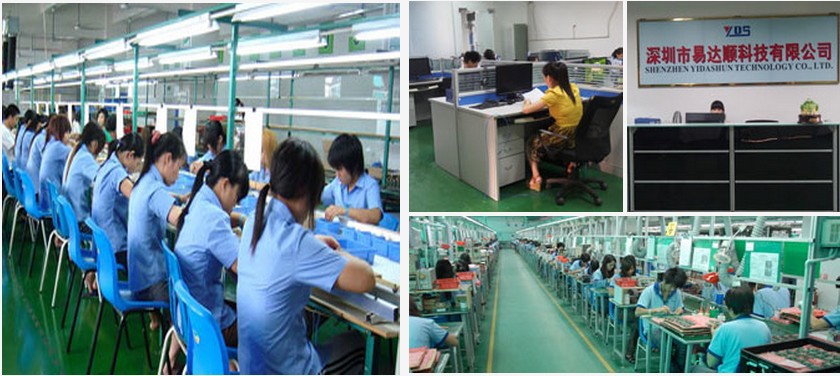

>> Workshop Photos:

1. Q: Do you offer samples for testing?

A : Yes , we can offer samples for testing with cost paid by buyer , then We will return sample fee at your next bulk order .

2 . Q : Are you trading company or factory ?

A: We are 10 years professional manufacturer of switch power supply , led driver .

3 . Q : How long is your warranty ?

A : We usually have 1 year warranty and 30 days guarantee .

4 . Q : Do you have CE certificate ?

A : Yes , of course we have , besides we also have ROHS , FCC ERP CB certificate .

5 . Q : Can you customize new items according to customer's require ?

A : Yes , of course we can , but the MOQ is 5000pcs .

6.Q : How is the delivery terms ?

A:We have fast and flexible deliver terms , bulk orders(above 5,000pcs ) usually delivery within 5 days by air / by sea , General small batch orders can be arranged delivery within 1-3 days by DHL ,FEDEX , EMS , UPS .

7. Q : Do you have burn-in test ?

A : All of our products will have 100% burn-in test for 3-4 hours .

8 . Q : Can you do our brand labels ?

A : Yes , we can , we can do brand labels and boxes according to customer's request .

More details , pls contact shenzhen yidashun technology co.,ltd--- Ms.Jaycee Song
