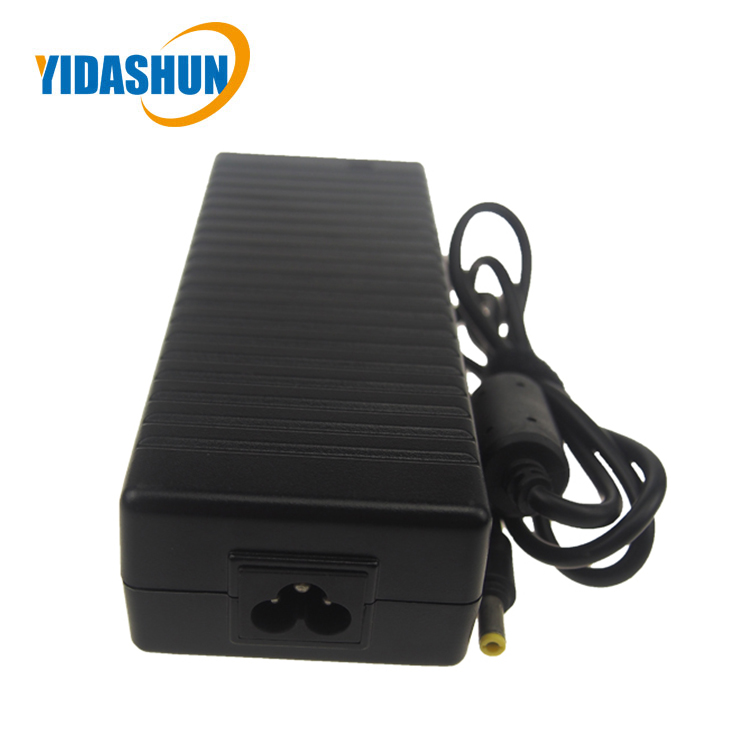

19V 6.3A 120W laptop ac to dc power adapter charger with dc tip 5.5*2.5mm yellow for HP/Toshiba/ACER

Model NO :

YDS-120A

minimum order :

1 piece

Country of Origin :

SHENZHEN

Type:Power Supply Adapter
Use:LAPTOP
Material:PC Fireproof Material, ABS
Protection:Short Circuit Protection, OTP, Overcurrent, Overvoltage, OCP, OLP, OTP, SCP
Private Mold:NO
Function:normal
Brand Name:YDS
Model Number:YDS-120A
Port:DC
Input voltage and current:100-240V/0.5A
output voltage and current:19V 6.3A
Maximum Output Power:120W

Quantity :

$5.99 - $7.39 / piece

add to cart

Contact Now

Type:Power Supply Adapter
Use:LAPTOP
Material:PC Fireproof Material, ABS
Protection:Short Circuit Protection, OTP, Overcurrent, Overvoltage, OCP, OLP, OTP, SCP
Private Mold:NO
Function:normal
Brand Name:YDS
Model Number:YDS-120A
Port:DC
Input voltage and current:100-240V/0.5A
output voltage and current:19V 6.3A
Maximum Output Power:120W
Place of Origin:Guangdong, China
Product Name:19v 6.3a laptop adapter
Input Voltage Range:100-240V AC
Input Frequency:50/60Hz
Output:19V 6.3A
Output Power:120W

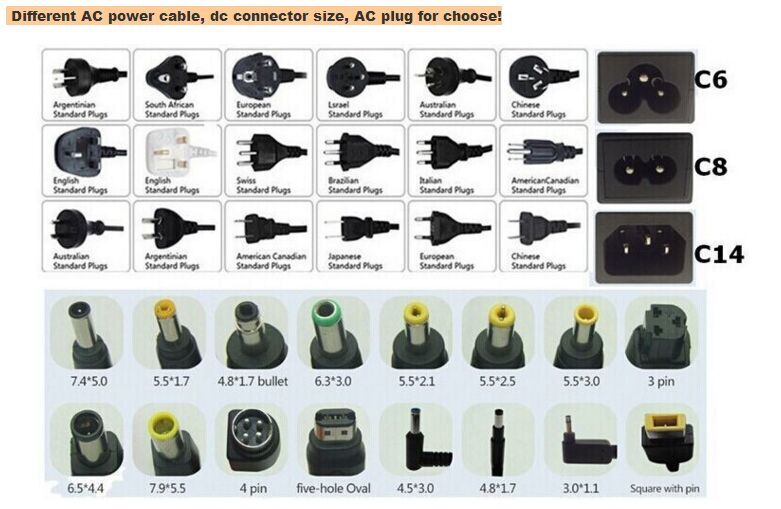

DC Connector Size:5.5*2.5mm
Efficiency:>85%
Certification:CE, ROHS, FCC
warranty:1 year

19V 6.3A 120W laptop ac to dc power adapter charger with dc tip 5.5*2.5mm yellow for HP/Toshiba/ACER

Product Description

Specifications
Model No.	YH326
AC Input
Nominal Input Voltage	AC 100V~240V
Input Voltage Range	AC 95V~265V
Input Frequency	50/60Hz
DC Output
Output Voltage	19V
Output Current	6.3A
Output Power	120W
DC Connector Size	5.5*2.5mm
Line Regulation	2%
Load Regulation	5%
Ripple Noise	180 Mvp-p
Efficiency	>85%
Output Cable Standard	1mm2 Pure Copper
Output Cable Length	1.5m normally or customized requirement
Environment
Operating Temperature	0°C ~40°C
Operating Humidity	5%~95%RH
Storage Temperature	-20°C ~85°C
Storage Humidity	5%~95%RH
Protection
Over Load Protection	Short Circuit Protection
Over Current Protection	Over Temperature Protection
Certificates
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
Dimensions
Adapter Size	16.66.53.9CM
Adapter Weight	560G
Inner Box Size	21.514.55.5CM
Inner Box Weight	60G
PCS/CTN	50PCS
Outer Carton Size	55.54437.5CM
Outer Carton Weight	1080G
GW/CTN	32080G

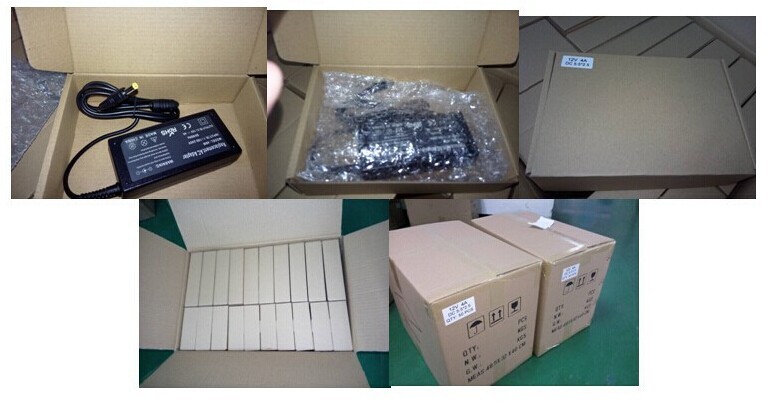

Package
Inner Box	Normally neutral brown box or customized requirement
Outer Carton	Normally neutral standard carton or customized requirement
Warranty
Guarantee	30 days
Warranty	2 years
Terms and Conditions
MOQ	100PCS for mixed order
Payment Terms	T/T, L/C, PayPal, western union
Delivery Time	3-5 days

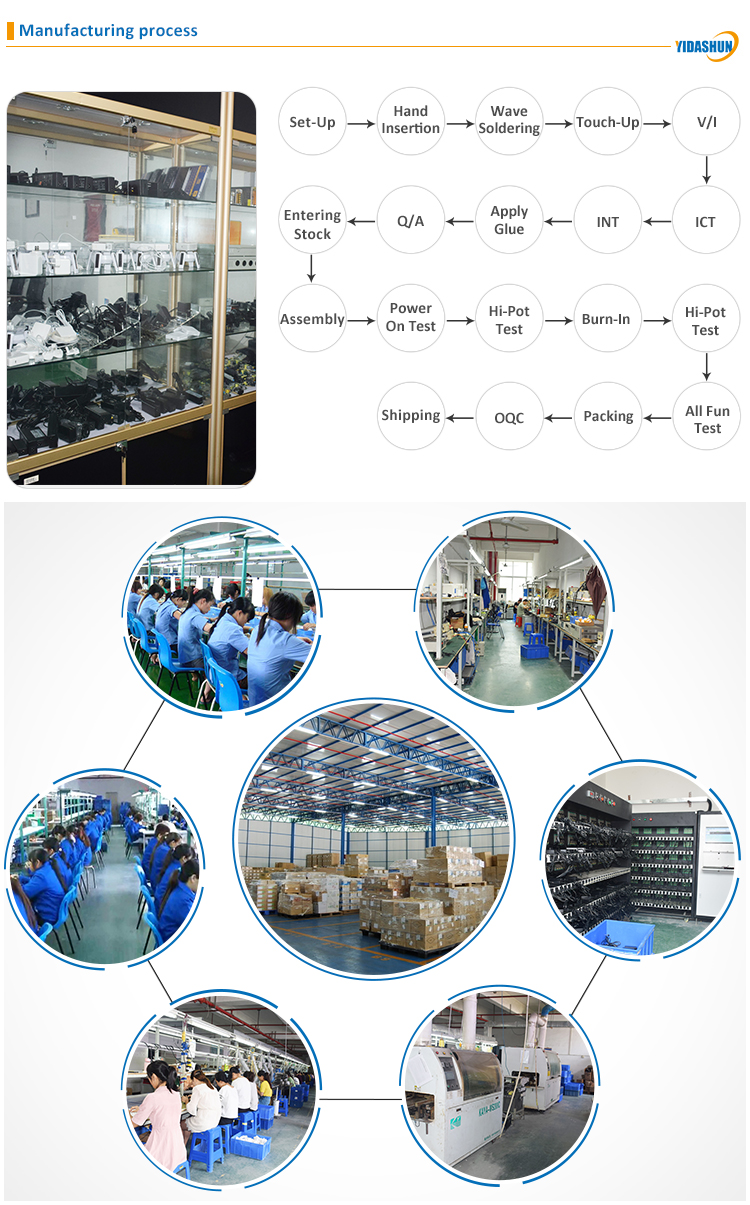

Manufacturing Process
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping

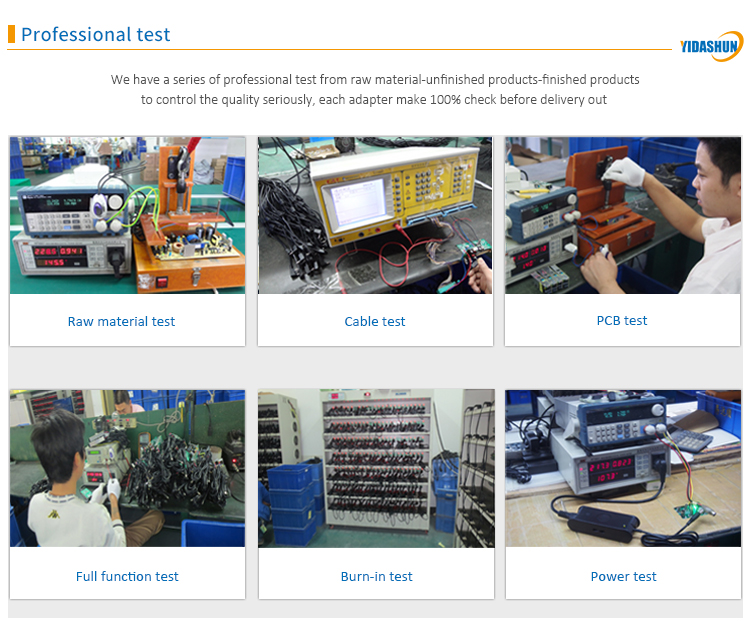

Test Procedures
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test
