  • Place of Origin:China
  • Brand Name:oem
  • Model Number:YDS65
  • Output Type:DC
  • Connection:Desktop
  • Product Name:19.5v 3.33a charger for hp
  • Input Voltage Range:100-240V AC
  • Input Frequency:50/60Hz
  • Output:19.5v 3.33A
  • Output Power:65W
  • DC Connector Size:4.5*3.0 mm blue tip
  • Efficiency:>85%
  • Protection:OCP, OLP, OTP, SCP
  • Certification:CE, ROHS, FCC
  • warranty:1 year

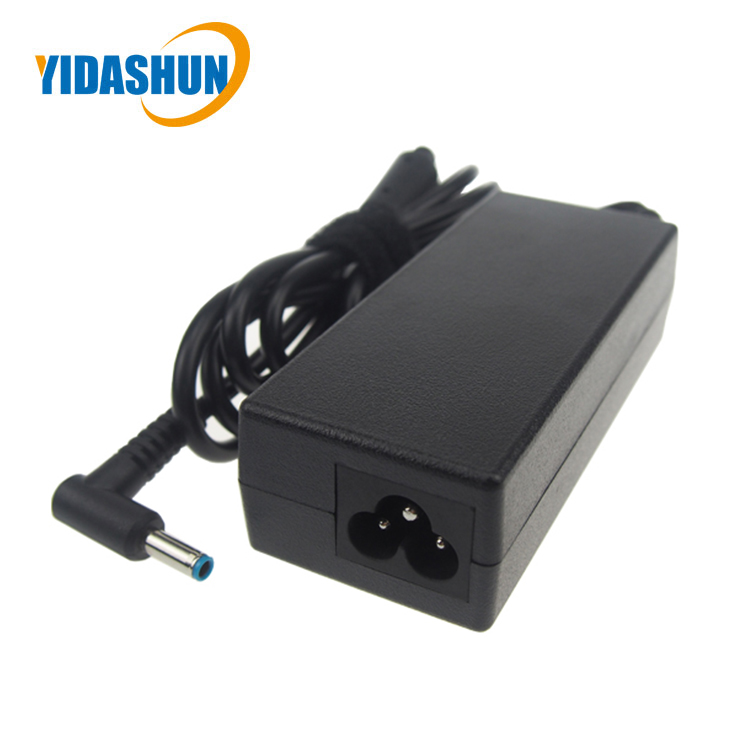

laptop parts 65W 19.5V 3.33A notebook ac power adapter laptop charger 4.5*3.0mm for HP/COMPAQ
Product Description

Specifications

Model No.

YHH3018

AC Input

Nominal Input Voltage

AC 100V~240V

Input Voltage Range

AC 95V~265V

Input Frequency

50/60Hz

DC Output

Output Voltage

19.5V

Output Current

3.33A

Output Power

65W

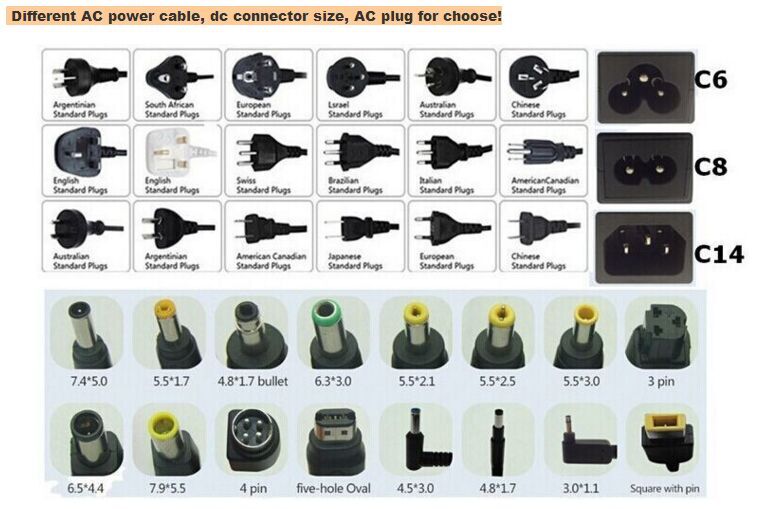

DC Connector Size

4.5*3.0 mm

Line Regulation

2%

Load Regulation

5%

Ripple Noise

180 Mvp-p

Efficiency

>85%

Output Cable Standard

0.5mm2 Pure Copper

Output Cable Length

1.5m normally or customized requirement

Environment

Operating Temperature

0°C ~40°C

Operating Humidity

5%~95%RH

Storage Temperature

-20°C ~85°C

Storage Humidity

5%~95%RH

Protection

Over Load Protection

Short Circuit Protection

Over Current Protection

Over Temperature Protection

Certificates

CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE

Dimensions

Adapter Size

10.6*4.3*2.9CM

Adapter Weight

220G

Inner Box Size

19*13*4.7CM

Inner Box Weight

40G

PCS/CTN

50PCS

Outer Carton Size

48.5*32*40CM

Outer Carton Weight

860G

GW/CTN

13860G

Package

Inner Box

Normally neutral brown box or customized requirement

Outer Carton

Normally neutral standard carton or customized requirement

Warranty

Guarantee

30 days

Warranty

2 years

Terms and Conditions

MOQ

100PCS for mixed order

Payment Terms

T/T, L/C, PayPal, western union

Delivery Time

3-5 days

Manufacturing Process

1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping

Test Procedures

1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test

Packaging & Shipping

Packing details:

1. Regular package: each one with bubble bag,then 50pcs in one carton.

2. Individual package: inner box inside,50pcs/carton.

3. Customized package is accepted.
Delivery time: 1-3 days for samples,3-15 days for batch order.

Shipping: by Sea / by Air / by Express (Customers specifying freight forwarders and negotiable shipping methods. )

INTERNATIONAL AIR MAIL

Payment:

Fast Delivery:

Different qty order will be required for different days .

Company Information

Certifications

FAQ

>>What is your warranty for adapters?

We usually offer 1 year warranty

>>What is your MOQ and sample term?

our MOQ is 100pcs, we can offer you free samples, but you pls pay shipping costs.

>> How do you deal with defective rates?

Our defective rates for high quality adapterusually is about 0.3%~0.5% below 1%, we usually will send you replacement part in next order for RMA.

>> Can can accept OEM&ODM?

yes,we can. We can customized the products,labels,package as your demands.

>> What is your payment terms?

we accept T/T,paypal, western union, L/C,cash...
